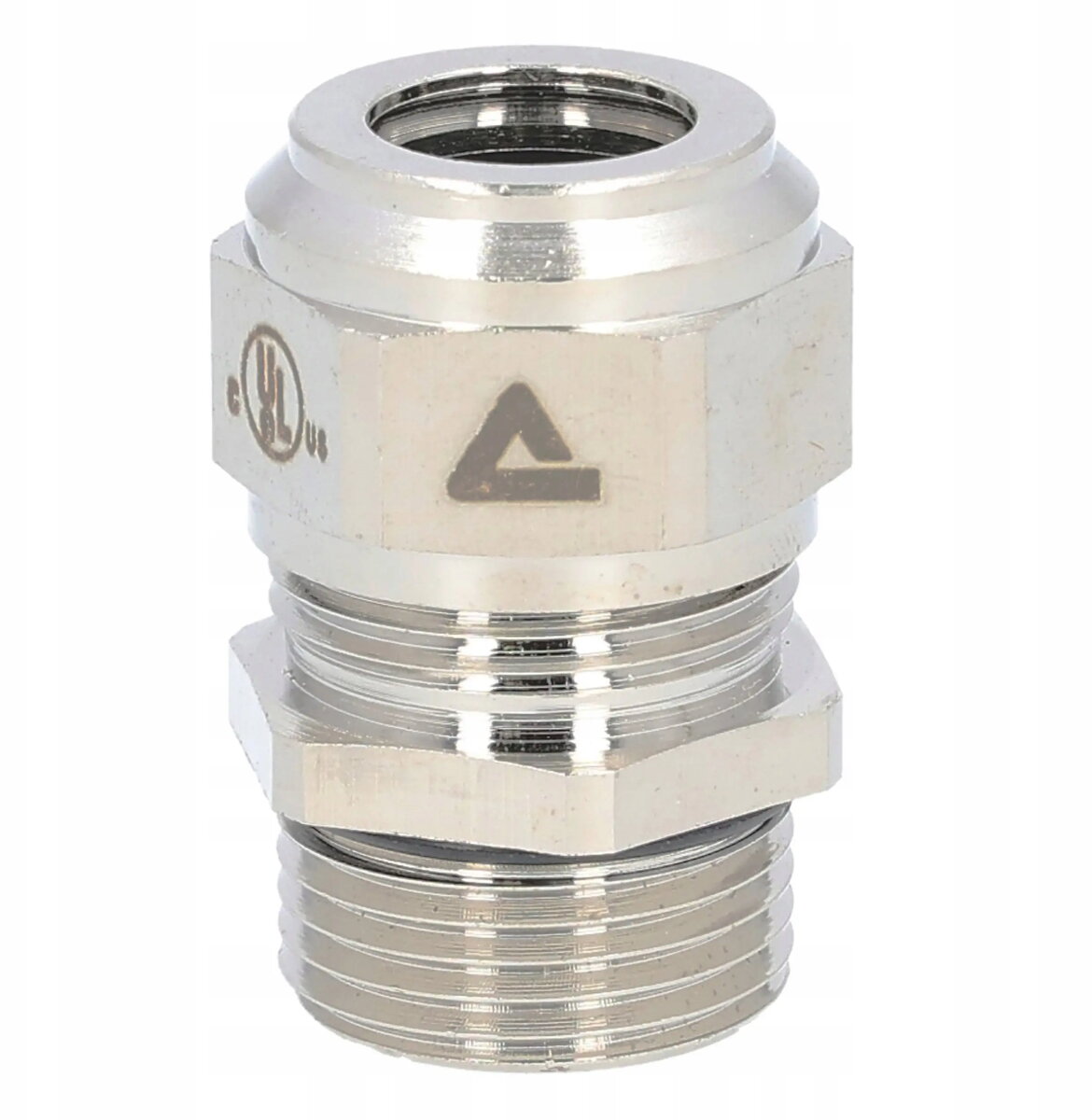

BITNER M20x1.5 Brass Cable Gland IP68 UL for 9-12 mm Cable

The BITNER M20x1.5 brass cable gland is a high-quality component engineered for secure cable entry and effective strain relief in industrial control systems. Constructed from durable brass, this cable gland provides robust mechanical protection and ensures that cables remain firmly in place, preventing damage from tension or vibrations. With an IP68 protection rating, it offers complete protection against dust ingress and immersion in water, making it an ideal choice for demanding industrial environments where reliability is paramount.

Advantages

This cable gland stands out due to its exceptional build quality and compliance with international safety standards. The brass construction offers superior corrosion resistance and mechanical strength compared to plastic alternatives, ensuring a long service life even in harsh conditions. Its UL certification confirms that the product meets rigorous safety and performance requirements, providing peace of mind for critical infrastructure projects. The precise design allows for easy installation while maintaining a high-integrity seal that protects sensitive electrical connections from environmental hazards.

Suitable for

• Industrial control panels and automation systems
• Outdoor electrical enclosures requiring moisture protection
• Machinery and equipment exposed to dust or water
• Infrastructure projects demanding high-durability components

When it may not be suitable

This cable gland is designed specifically for cables with a diameter between 9 and 12 mm. It will not provide a proper seal for cables outside of this range, which could compromise the IP68 rating. Additionally, while brass is highly durable, it may not be the optimal choice for environments with extreme chemical exposure where specialized stainless steel or plastic materials might be required.

Key specifications

• Thread size: M20x1.5
• Cable diameter range: 9-12 mm
• Material: Brass
• Protection rating: IP68
• Certification: UL

How to use

To install the BITNER cable gland, first ensure that the cable is properly stripped and prepared. Insert the cable through the gland body and tighten the dome nut onto the gland body. As the nut is tightened, the internal sealing ring compresses around the cable jacket, creating a watertight and airtight seal. Ensure that the gland is securely fastened to the enclosure wall using the provided thread, and verify that the seal is tight enough to prevent cable movement without damaging the cable insulation.

What to consider before purchase

• Verify the outer diameter of your cable to ensure it falls within the 9-12 mm range.
• Check the thread compatibility of your enclosure to ensure it matches the M20x1.5 standard.
• Consider the environmental conditions of the installation site to confirm that brass is the appropriate material.

Usage recommendations

For optimal performance and to maintain the IP68 rating, ensure that the cable is inserted straight into the gland and that the sealing nut is tightened sufficiently to grip the cable jacket firmly. Avoid over-tightening, which could deform the internal seal or damage the cable.
