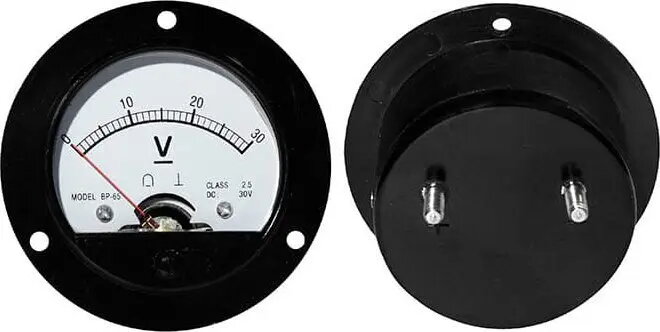

Analog voltmeter BLOW 51-130# — measurement range up to 30 V (analog panel meter)

Analog voltmeter BLOW 51-130# is a panel-mount analog instrument designed to measure DC voltage up to 30 V. The meter features a needle display that provides continuous, real-time visual indication of voltage levels without digital conversion. Built for straightforward installation in control panels, test benches, laboratory equipment and repair stations, this analog panel meter is intended for applications where immediate visual feedback and simple operation are required.

Advantages

The analog needle display offers intuitive, continuous monitoring of voltage changes and transient events that can be harder to notice on digital displays. The panel-mount format enables secure mounting in enclosures and dashboards, while the simple electrical connections reduce installation time. The device is passive in appearance and operation, requiring no digital interface, which simplifies use in legacy systems and basic measurement setups.

Suitable for

• Electrical testing and bench measurements
• Laboratory setups and educational equipment
• Repair and diagnostics of DC equipment and circuits
• Industrial and control panels requiring continuous voltage indication

Key specifications

• Measurement type: DC voltage
• Measurement range: up to 30 V DC
• Display type: analog pointer (needle)
• Mounting: panel mount
• Reading: direct visual reading without digital conversion

How to use

Install the voltmeter into a compatible panel cutout and secure it according to the panel mounting design. Connect the meter terminals to the circuit under test following standard polarity conventions for DC measurements. Ensure supply and measurement wiring are isolated from high-voltage or noisy sources to avoid erroneous readings. Observe the needle movement to monitor steady-state voltage and dynamic changes; no configuration or calibration is required for basic use beyond correct wiring and occasional visual inspection.

Usage recommendations

For reliable performance, use the voltmeter within the specified range and avoid exposing it to voltages beyond 30 V DC. Maintain appropriate wiring practices: use secure connectors, keep measurement leads away from high-current conductors, and ensure the mounting environment is free from excessive vibration or moisture. Periodically check connections and the condition of the mechanical pointer for accurate readings.
