Wall chaser Bosch 0 601 368 703, 23 cm disc, 5000 RPM, 2400 W, cutting depth 20 mm

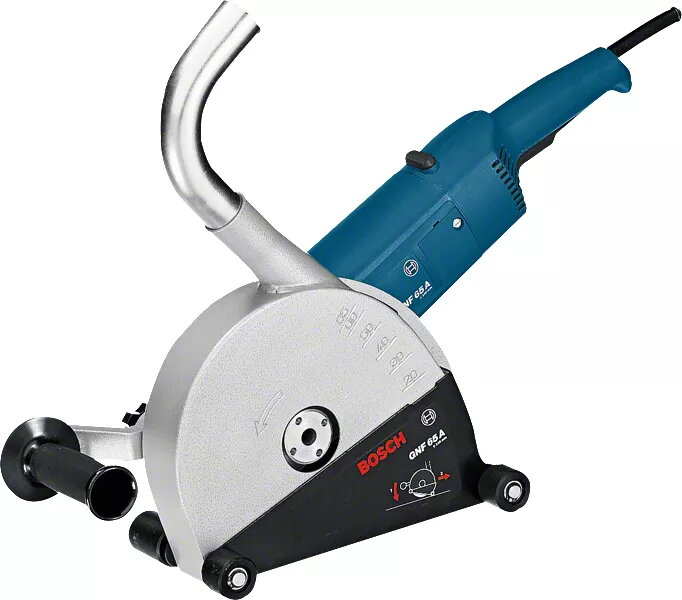

Handheld wall chaser Bosch 0 601 368 703 is a professional tool designed to cut precise channels for cables and pipes in masonry and concrete. Equipped with a 23 cm cutting disc and a powerful 2400 W input motor (rated output 1670 W), the tool delivers a maximum no-load speed of 5000 RPM and enables controlled cutting with a minimum depth of 20 mm. The unit’s dimensions (690 × 455 mm) and 8.4 kg weight provide stability during operation while built-in overload protection helps maintain reliable performance on demanding jobsites.

Advantages

The Bosch wall chaser combines high power and stable handling to achieve fast and accurate channel cutting. Its 23 cm disc and elevated rotational speed reduce cutting time in hard materials, while the specified minimum cutting depth ensures repeatable results for electrical and plumbing installations. Integrated overload protection increases tool longevity and operator safety, and the compact footprint allows easier positioning on vertical and horizontal surfaces.

Suitable for

• Cutting cable ducts and pipe channels in concrete and masonry
• Preparing walls and floors for electrical and plumbing installations
• Site work where precise, repeatable groove depths are required
• Renovation projects involving removal of narrow sections of material

Key specifications

• Cutting disc diameter: 23 cm
• Input power: 2400 W
• Rated output power: 1670 W
• Maximum no-load speed: 5000 RPM
• Minimum cutting depth: 20 mm

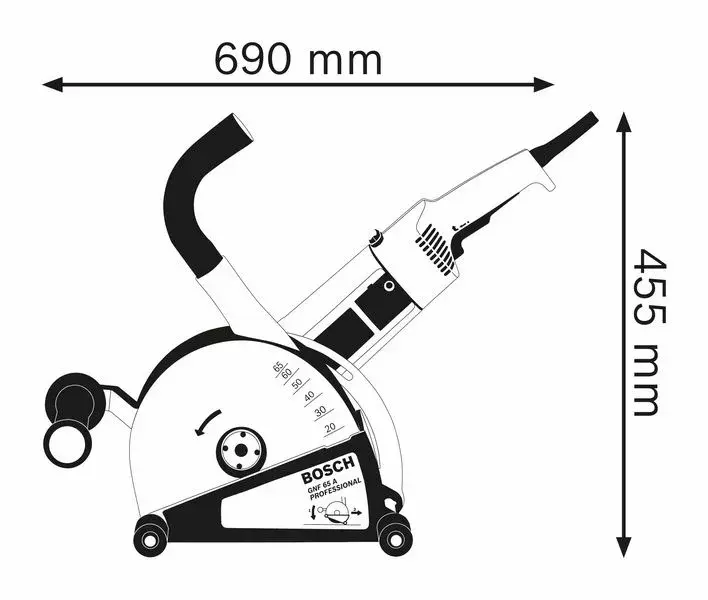

• Tool dimensions: 690 × 455 mm
• Weight: 8.4 kg
• Built-in overload protection for motor and electronics

How to use

Secure the workpiece and mark the required channel line on the surface before operation. Fit the appropriate 23 cm cutting disc and verify that the blade and guard are correctly mounted. Start the wall chaser, allow it to reach the rated no-load speed, then guide the tool steadily along the marked line to achieve the minimum cutting depth of 20 mm; use controlled, even feed pressure without forcing the motor. Observe the tool’s overload protection indicator and stop work to allow the motor to cool if protection activates. After cutting, switch off the tool and disconnect from power before cleaning or changing accessories.

Usage recommendations

Use appropriate personal protective equipment including eye, ear and respiratory protection due to dust and debris. For best results in dense concrete, perform multiple shallow passes rather than attempting a single deep cut. Connect an effective dust extraction system where possible to reduce airborne particles and maintain clear visibility of the cutting line.
