Circular Saw Bosch 0 601 57A 900

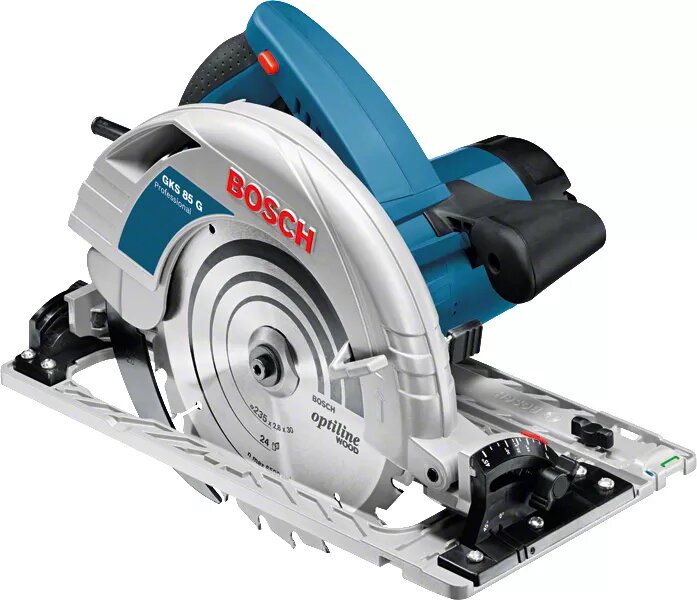

The Bosch 0 601 57A 900 circular saw is a high-power portable saw optimised for use with guide rails. It has a 235 mm blade diameter, a no-load speed of 5000 RPM and a maximum cutting depth of 85 mm at 90°. The saw is driven by a 2200 W motor and is designed for precise straight cuts when used with Bosch FSN guide rails or compatible rails from other manufacturers.

Advantages

The saw delivers fast sawing progress thanks to its 2200 W motor and high idle speed. Its die-cast aluminium base plate includes precision-milled grooves for secure and accurate guidance on guide rails. Mitre cuts can be made with the guide rail system without the need for an adapter, enabling flexible cut types while maintaining accuracy. The tool’s compatibility with Bosch FSN rails and rails from other suppliers ensures easy integration into existing guide rail workflows.

Suitable for

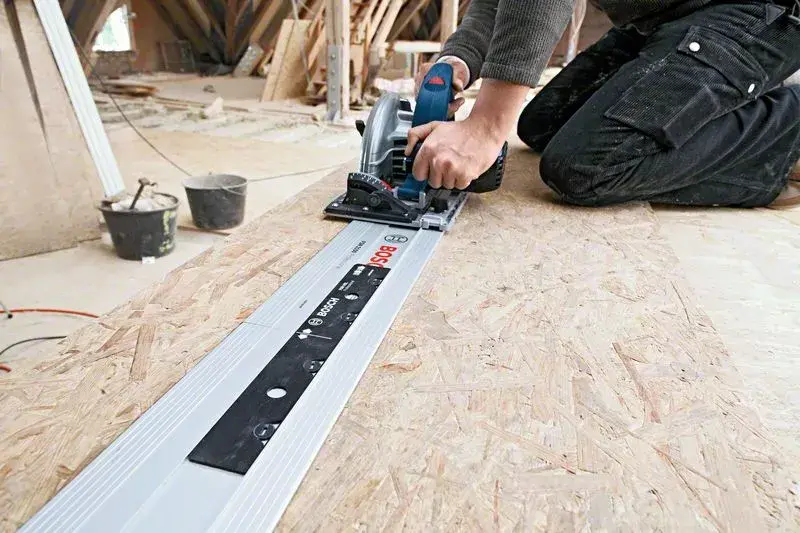

• Precise straight cuts with guide rails
• Mitre cuts using a guide rail
• On-site and workshop cutting tasks for wood and wood-based materials
• Applications requiring high cutting speed and consistent power

Key specifications

• Brand: Bosch
• Model / MPN: 060157A900
• EAN: 3165140607902
• Motor power: 2200 W
• Blade diameter: 235 mm
• No-load speed: 5000 RPM
• Maximum cutting depth at 90°: 85 mm
• Weight: 7.8 kg
• Category: Power saws

How to use

Fit an appropriate 235 mm circular saw blade according to the material to be cut and secure it according to the manufacturer’s instructions. Position the saw on a compatible guide rail or a clamped straight edge, align the blade with the cut line, and switch the motor on. Feed the saw steadily along the guide rail at a controlled pace to maintain an even cut. For mitre cuts, set the required angle and set up the guide rail so the die-cast base plate engages the rail grooves before starting the cut. Always allow the blade to reach full speed before engaging the material.

Usage recommendations

Use appropriate personal protective equipment (eye, ear and hand protection) and select a blade suited to the workpiece material. Ensure the guide rail is clean and correctly mounted in the precision grooves of the aluminium base plate for best accuracy. Follow the manufacturer’s maintenance schedule for blade replacement and motor care to retain cutting performance.
