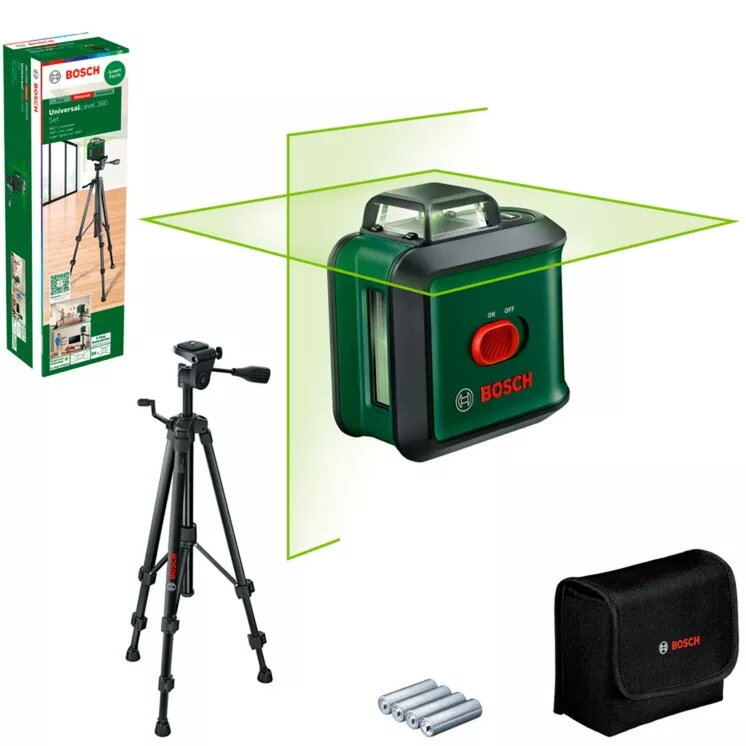

Laser cross level Bosch UniversalLevel 360 (green laser lines, range 24 m)

Bosch UniversalLevel 360 is a cross line laser that projects a continuous 360° horizontal green laser line and a 120° vertical green laser line for fast and accurate planar alignment. Designed for interior work, the unit provides bright, highly visible green laser diodes and a self-leveling function within ±4°, enabling quick setup on flat surfaces or on the included tripod. The device is compact and lightweight, with a housing made from over 75% recycled plastic and a visible working diameter up to 24 metres without a receiver, making it suitable for general installation, tiling and layout tasks.

Advantages

The green laser lines are more visible than red alternatives in many lighting conditions, improving on-site visibility and reducing the need for additional lighting. Self-leveling accelerates setup and ensures precise horizontal and vertical reference lines, while the tilt mode allows deliberate angled projections when work lies outside the self-leveling range. The wide opening angle of the vertical projection produces long, accurate lines even at short distances. The included TT 150 tripod offers fine height adjustment, integrated spirit levels and 360° rotation for convenient positioning.

Suitable for

• Installing suspended ceilings and curtain rails at consistent height
• Aligning shelves, cabinets and picture frames
• Interior tiling and layout work requiring planar reference lines
• General room layout and perpendicular alignment across a workspace

Key specifications

• Laser color: green
• Projection: 2 lines (360° horizontal, 120° vertical)
• Self-leveling range: ±4°
• Maximum working diameter without receiver: 24 metres
• Working range (typical): 12 metres
• Laser class: 2
• Power supply: battery operation (4×1.5 V AA recommended)
• Tripod thread: 1/4"; included tripod with 0.55–1.57 m fine height adjustment
• Operating temperature range: -5 °C to 40 °C
• Dimensions (W×H×D): 66 × 111 × 114 mm
• Weight: 560 g
• Housing: >75% recycled plastic; carrying bag >65% recycled material (where included)

How to use

Place the UniversalLevel 360 on a flat surface or mount it on the TT 150 tripod and switch on the unit. Allow the device to self-level within its ±4° range; the green horizontal 360° line and vertical 120° line will project automatically. For angled lines or work outside the self-leveling range, activate the tilt function and position the unit manually. Use the tripod’s fine height adjustment and integrated spirit levels to align the device precisely, and rotate the tripod head to direct the horizontal line around the room.

Usage recommendations

For maximum visibility, use fresh alkaline batteries and avoid direct sunlight on projection surfaces. For long-distance work or outdoor tasks, pair the unit with a compatible laser receiver. Store the device in its protective bag when not in use and clean the laser window with a soft, dry cloth.
