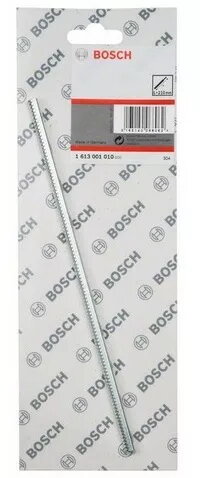

Depth stop accessory Bosch 1 613 001 010 for compatible drill guides, metallic, length 210 mm

Bosch 1 613 001 010 is a metallic depth stop accessory 210 mm long designed for use with compatible drill guides. It provides a rigid, straight reference that mounts to the guide to control drilling depth precisely. The accessory helps achieve repeatable hole depths across multiple workpieces and is intended for use with materials such as wood, metal and composite panels in workshop or on-site environments.

Advantages

The metallic construction offers durability and resistance to bending under normal drilling forces, while the 210 mm length gives extended reach for deeper stop settings. The depth stop clamps to compatible drill guide systems to maintain alignment between the drill and the work surface, reducing variation in hole depth and improving accuracy when producing multiple, identical holes. Its straightforward design makes it easy to fit and adjust without special tools.

Suitable for

• Setting repeatable drilling depths in woodworking projects
• Controlling hole depth when working with thin metal sheets or metal fabrication
• Drilling consistent holes in composite panels and laminates
• Workshop and on-site tasks that require accurate, repeatable hole depths

When it may not be suitable

This depth stop is intended to be used with compatible drill guide systems; it will not function as a standalone depth-limiting device without a matching guide. It is not a substitute for specialised depth-control systems designed for heavy industrial production where automated, high-volume accuracy and additional safety features are required.

Key specifications

• Material: metallic construction for enhanced stiffness
• Length: 210 mm overall length for extended depth settings
• Compatibility: designed to attach to compatible drill guide systems
• Application materials: suitable for wood, metal and composite panels

How to use

Fit the depth stop to the compatible drill guide according to the guide manufacturer’s instructions, ensuring secure clamping and correct alignment with the drill axis. Set the desired stop position along the 210 mm length and lock it in place to establish the required drilling depth. Verify the stop position by making a test hole in scrap material before working on the final workpiece, and periodically re-check the clamp tightness during use.

What to consider before purchase

• Confirm compatibility with your drill guide model to ensure correct fit and function
• Assess whether the 210 mm length meets your maximum depth requirement
• Consider the materials you will work with to ensure the metallic stop is appropriate
• Check that the accessory clamps securely and aligns with your drill axis

Usage recommendations

Use the depth stop with a compatible guide and perform a test hole to confirm depth settings. Regularly inspect the clamp and fastenings for wear or loosening, and avoid applying excessive lateral force that could bend the bar or misalign the guide.
