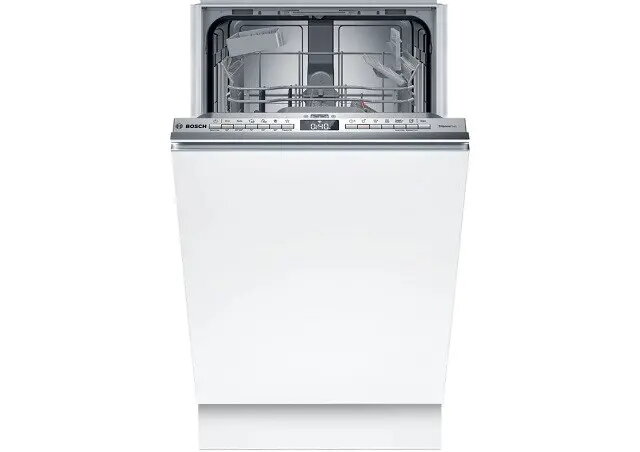

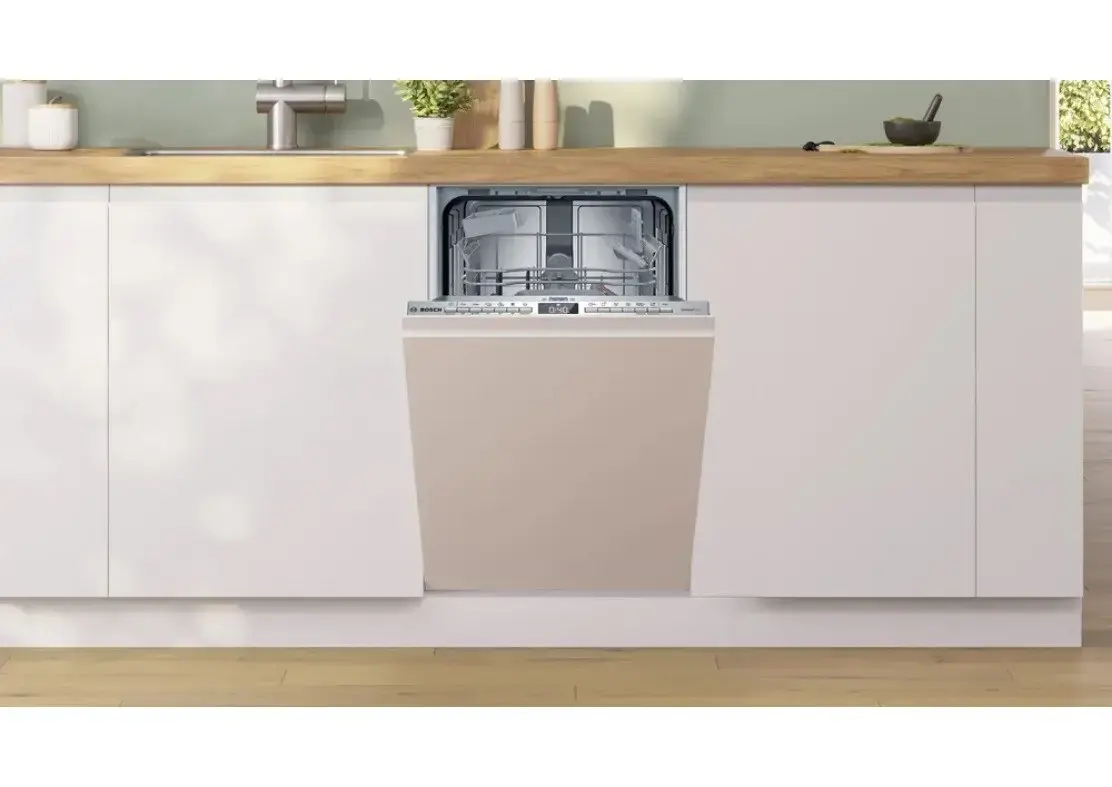

Built-in dishwasher Bosch SPV4EKX17E Slimline 45 cm, 10 place settings, Energy class B, 44 dB, Home Connect

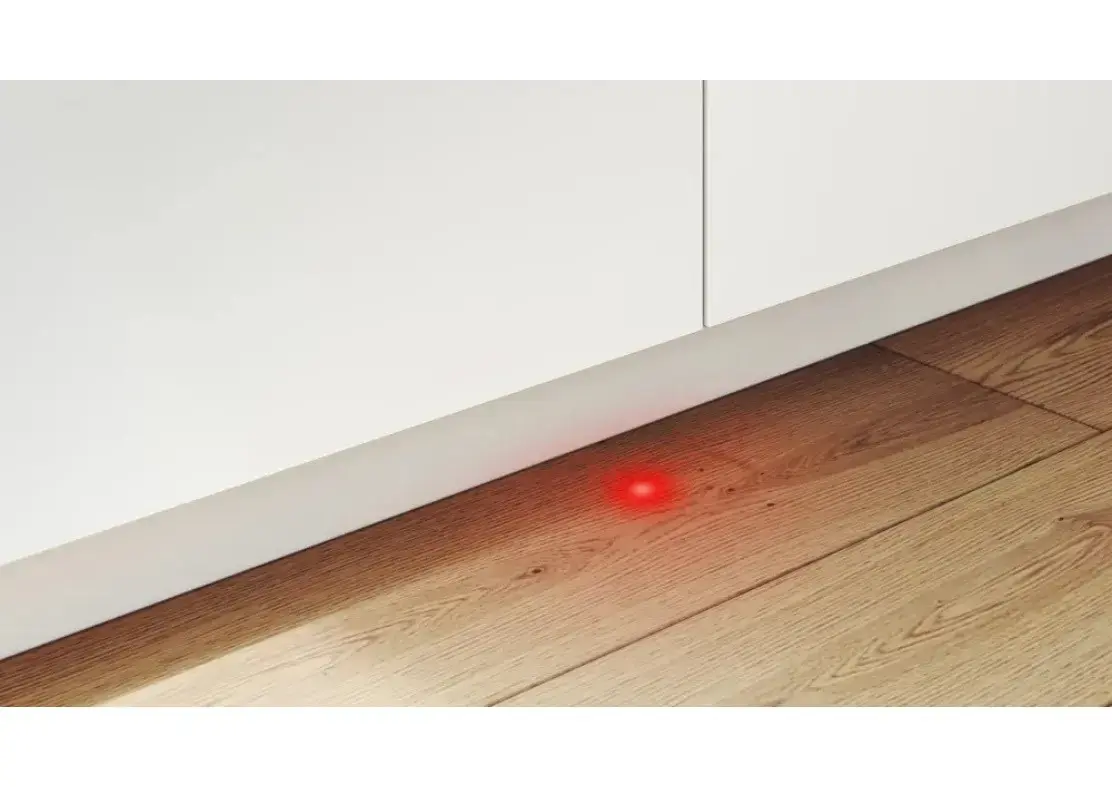

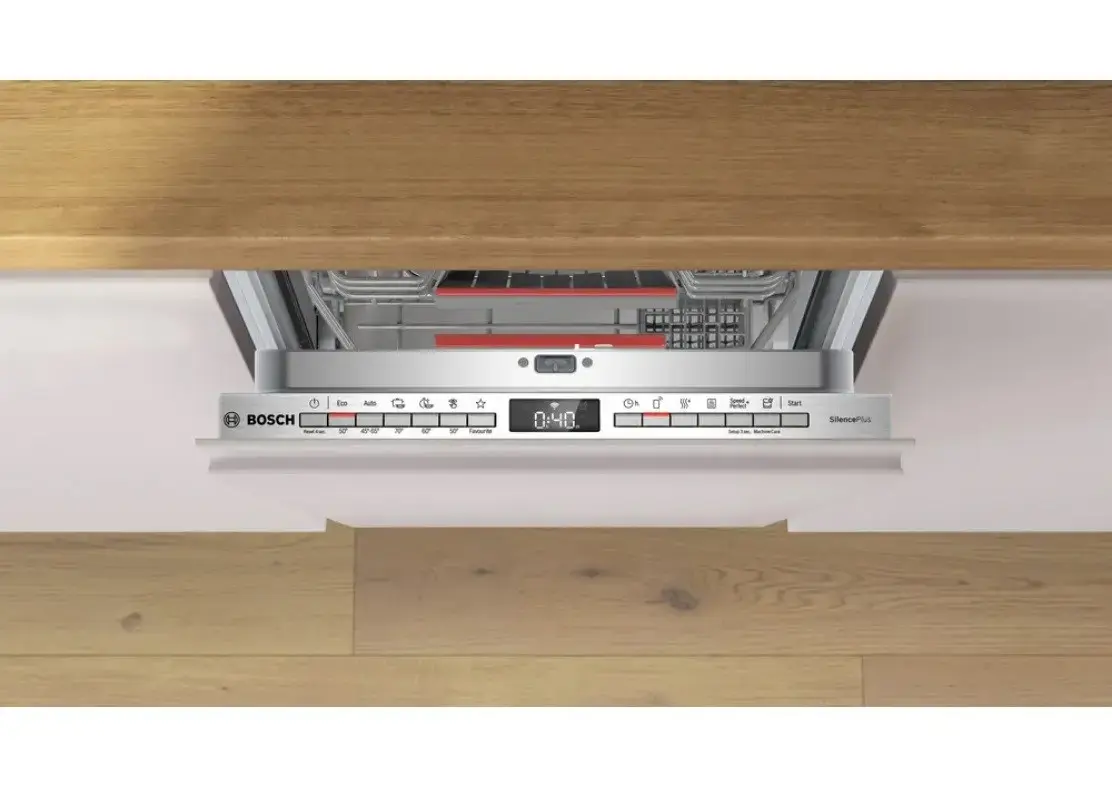

Built-in Bosch SPV4EKX17E is a slimline (45 cm) dishwasher designed for installation in a 45×55×81.5–87.5 cm cabinet. It accommodates 10 place settings, operates at noise level 44 dB and is rated energy class B. Key built-in features include a stainless steel control panel, adjustable upper basket with three height levels, two baskets, Home Connect remote monitoring and diagnostics, and technologies such as AquaSensor, AquaStop and TimeLight.

Advantages

The dishwasher combines a compact slimline design with practical functions: low noise operation (44 dB), flexible loading for 10 place settings, reduced water consumption (8.7 L per cycle) and a three-level adjustable upper basket for taller items. Smart connectivity via Home Connect enables remote monitoring and diagnostics, while features like AquaStop and overflow protection increase safety.

Suitable for

• Small kitchens or apartments where a 45 cm built-in dishwasher is required
• Households needing a quiet dishwasher for open-plan living
• Users who want remote monitoring and diagnostics via smartphone
• Families or individuals who require flexible basket configurations for mixed loads

Key specifications

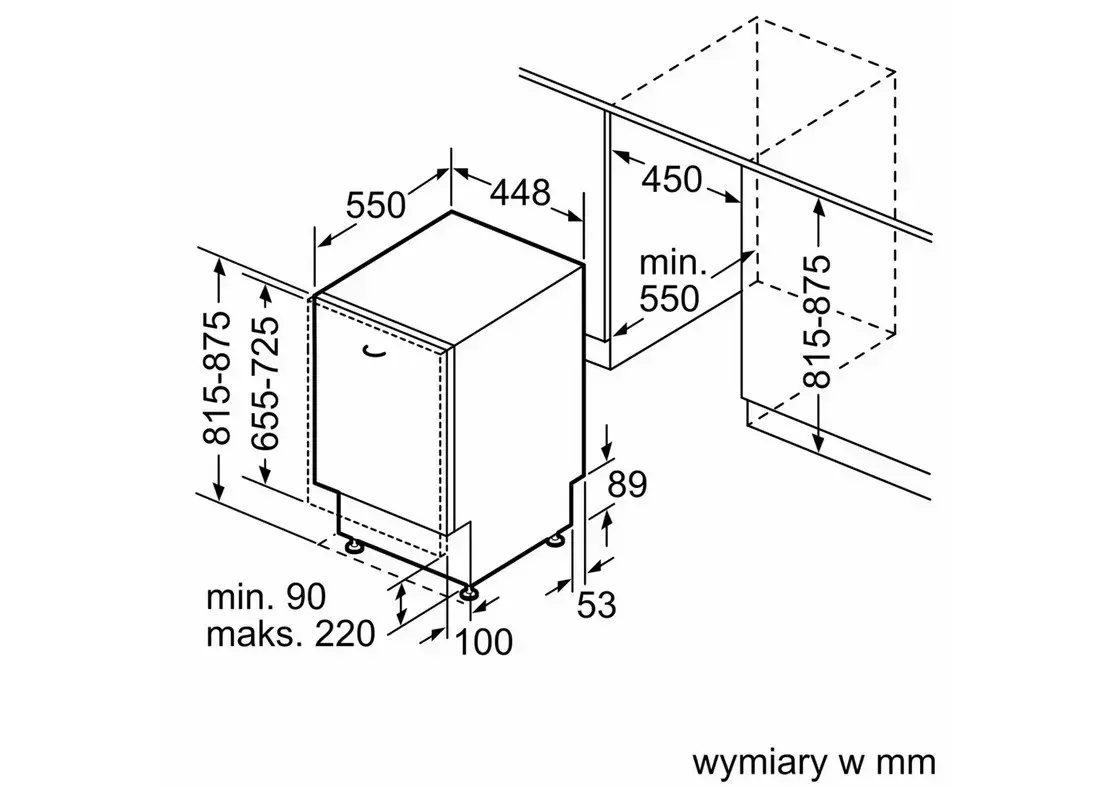

• Dimensions (H×W×D): 815 × 448 × 550 mm; fits installation compartment width 45 cm, depth 55 cm, height 81.5–87.5 cm
• Place settings: 10
• Energy efficiency class: B (scale A to G)
• Noise level: 44 dB; noise emission class B
• Number of washing programs: 6 (including Auto 45–65°C)
• Water consumption per cycle: 8.7 L
• Connected load / current: 2400 W / 10 A; AC 220–240 V, 50–60 Hz; power plug Type F
• Cycle time (standard): 235 min; maximum temperature: 70 °C

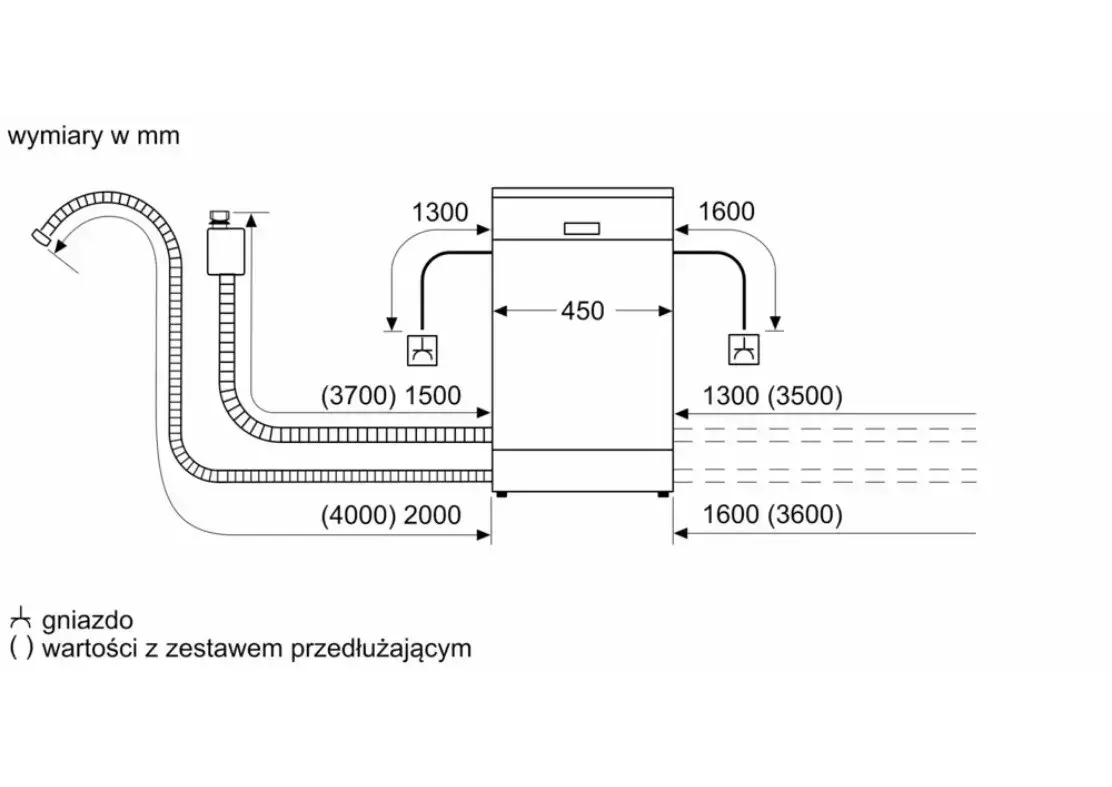

• Hoses and cord lengths: outlet hose 2.05 m, inlet hose 1.65 m, cord 1.75 m

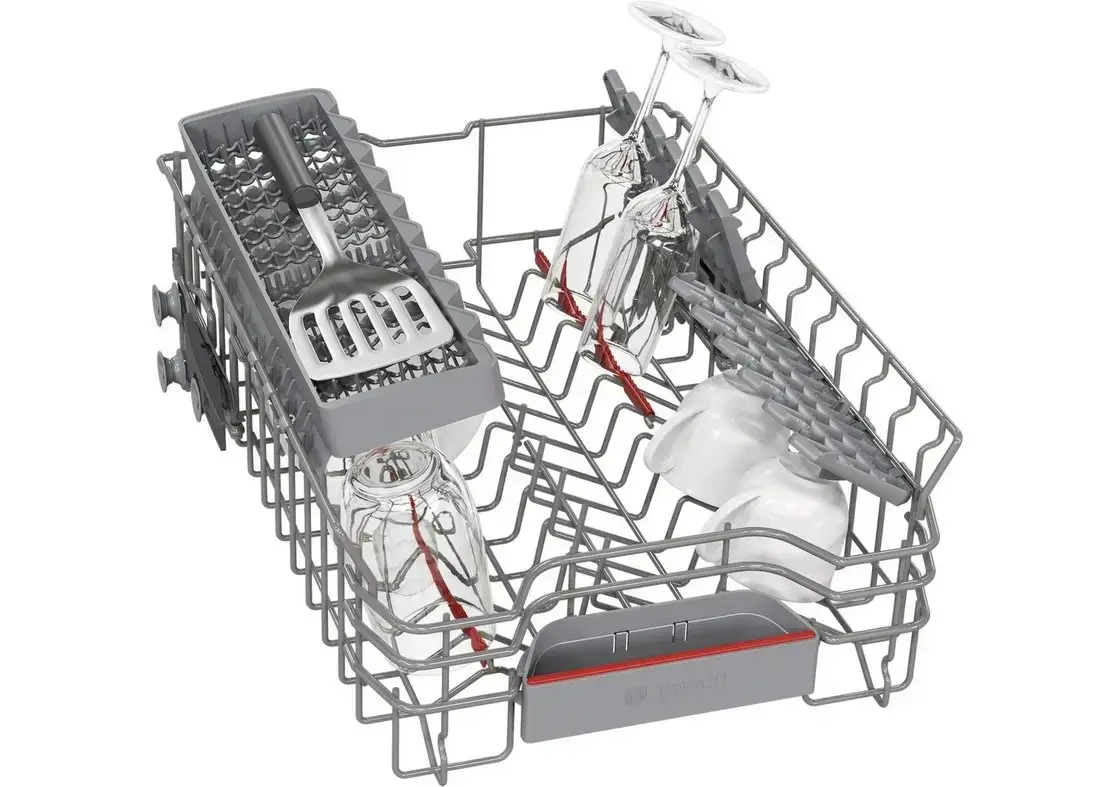

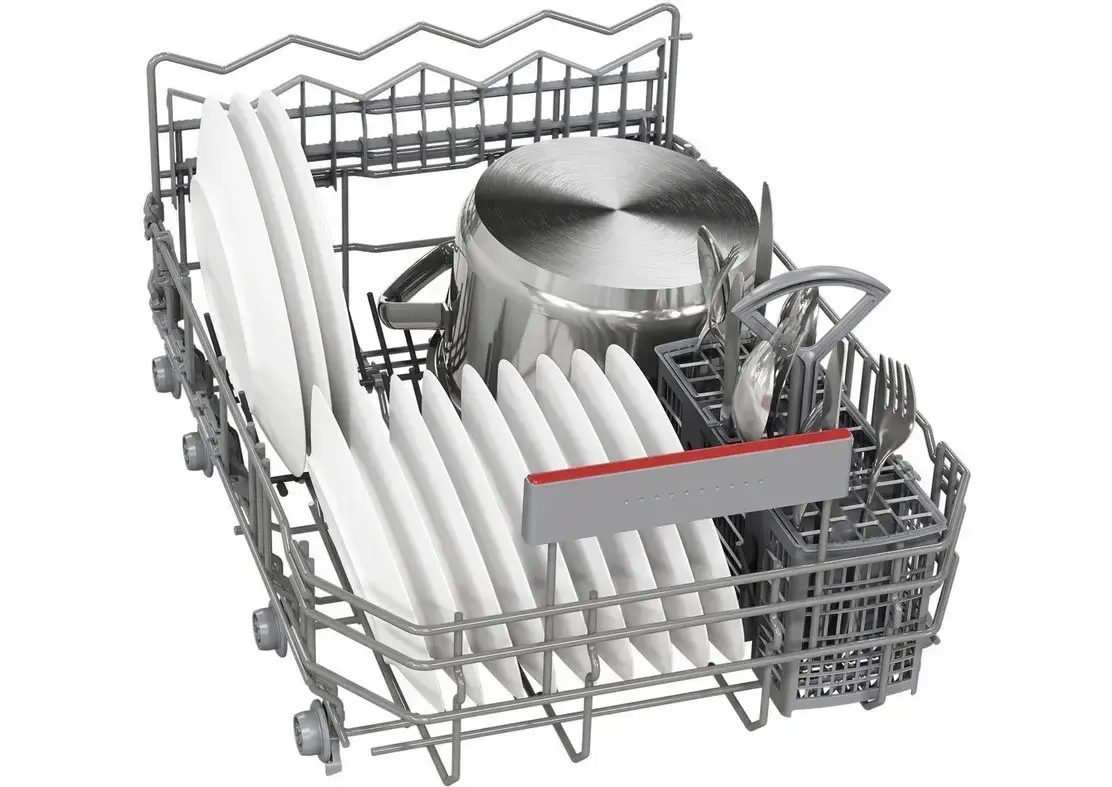

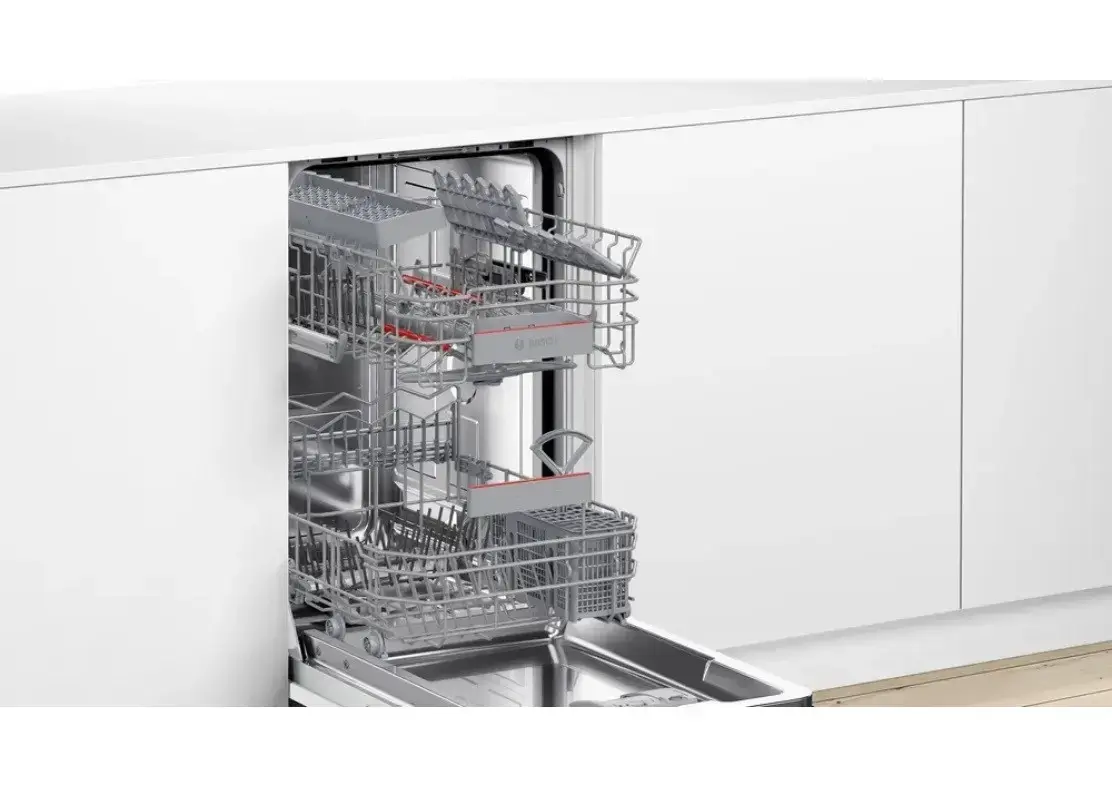

• Baskets: 2; upper basket adjustable with 3 height levels
• Additional functions: half-load, extra dry, AquaSensor, AquaStop, overflow protection, downloadable additional programs

How to use

Install the dishwasher into a 45 cm-wide built-in cabinet following the specified compartment depths and height range. Connect water inlet and drain hoses and electrical supply according to local regulations. Load dishes across the two baskets, adjusting the upper basket height in one of three positions to accommodate taller items. Select one of the six washing programs (including Auto 45–65°C) and, if needed, set a delayed start up to 24 hours. Use the stainless steel control panel buttons to start and monitor the cycle; remaining time is shown and can also be viewed via Home Connect.

Usage recommendations

For typical mixed loads, use the Auto 45–65°C program to balance cleaning performance and water/energy use. Use the half-load option for smaller loads and enable extra dry for plastic or hard-to-dry items. Regularly check and clean filters and use Home Connect diagnostics for remote troubleshooting when needed.
