LED Light, Brennenstuhl, NLB 02 BS

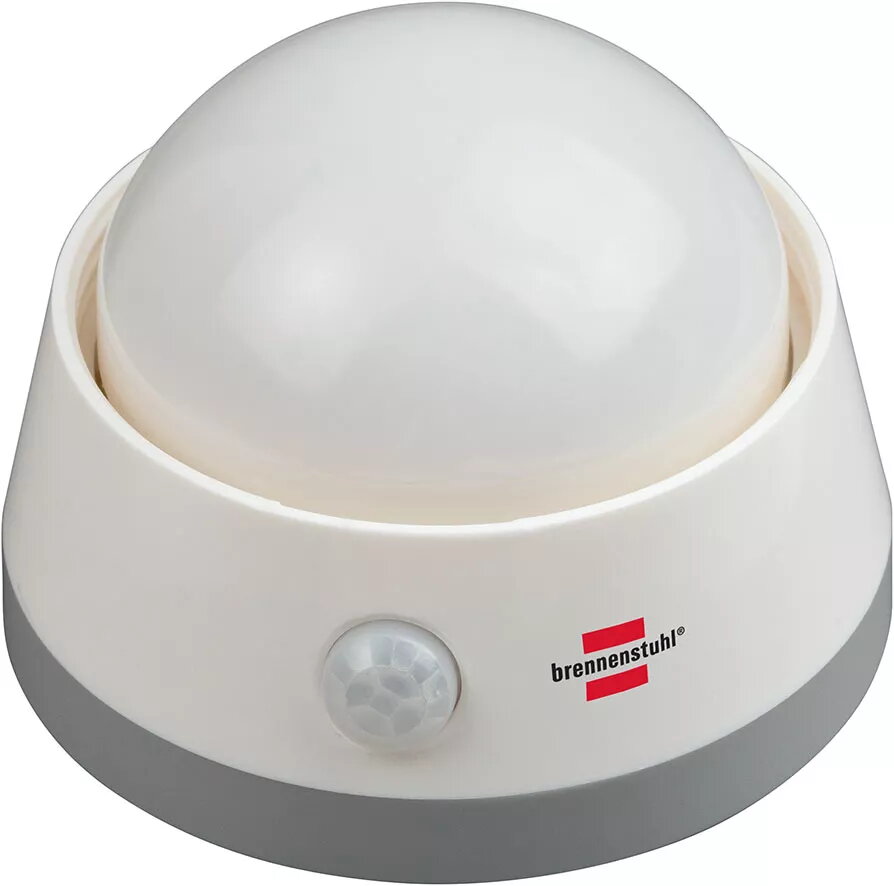

The Brennenstuhl LED Light NLB 02 BS is a compact battery-powered night light with a simple white housing designed for indoor use. It combines two SMD LEDs delivering a total luminous flux of 60 lm and a wide 120° beam angle to provide soft, even illumination in small spaces. The unit includes a PIR motion sensor with a 100° horizontal detection angle and up to 3 m range, plus a manual push switch for On/Off control. Powered by three AA batteries (included), the light is independent from mains sockets and convenient for temporary or permanent placement where wired lighting is not available.

Advantages

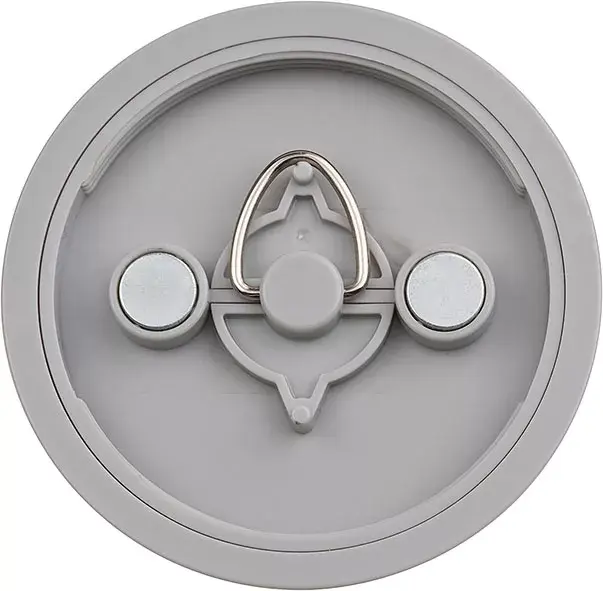

The light offers portable, low-energy illumination with an estimated run time of up to 20 hours on the supplied batteries. Its PIR sensor enables automatic activation when motion is detected, while the push switch provides manual control. Two built-in magnets and included hooks allow tool-free mounting on metal surfaces or hanging in narrow spaces. With a compact footprint (84 mm diameter, 61 mm height) and a weight of approximately 60 g, it is easy to move and install.

Suitable for

• Night-time corridor or stairway lighting
• Closets, wardrobes and cupboards
• Children’s rooms for soft, indirect light
• Garages, basements and utility rooms without permanent lighting
• Temporary lighting during power outages

Key specifications

• Light source: 2 SMD LEDs
• Luminous flux: 60 lm
• Power consumption: 0.5 W
• Beam angle: 120°
• Detection: PIR sensor, 100° horizontal angle, max. 3 m range
• Control: Push switch On/Off and automatic motion activation
• Power supply: 3 × AA batteries (included)
• Run time: up to 20 h (depending on battery type and use)
• Ingress protection: IP20 (indoor use only)
• Dimensions: Ø 84 mm × H 61 mm
• Weight: approx. 60 g
• Colour: White

How to use

Install three AA batteries into the battery compartment following the polarity markings. Choose a flat mounting surface or a metal location to use the integrated magnets, or fix the unit with the supplied hooks where needed. Use the push switch to set the light to manual On/Off mode, or leave it in sensor mode for automatic activation when motion is detected within the sensor range. Position the device so the PIR sensor faces the area where movement should be detected and avoid placing it behind large obstacles that block the detection zone.

Usage recommendations

For best performance, mount the light at a height that aligns the PIR sensor with the expected movement path, typically 1–2 metres above floor level. Replace batteries when light output visibly decreases to maintain the specified run time and sensor sensitivity. Keep the unit dry and use it only indoors where IP20 protection is sufficient.
