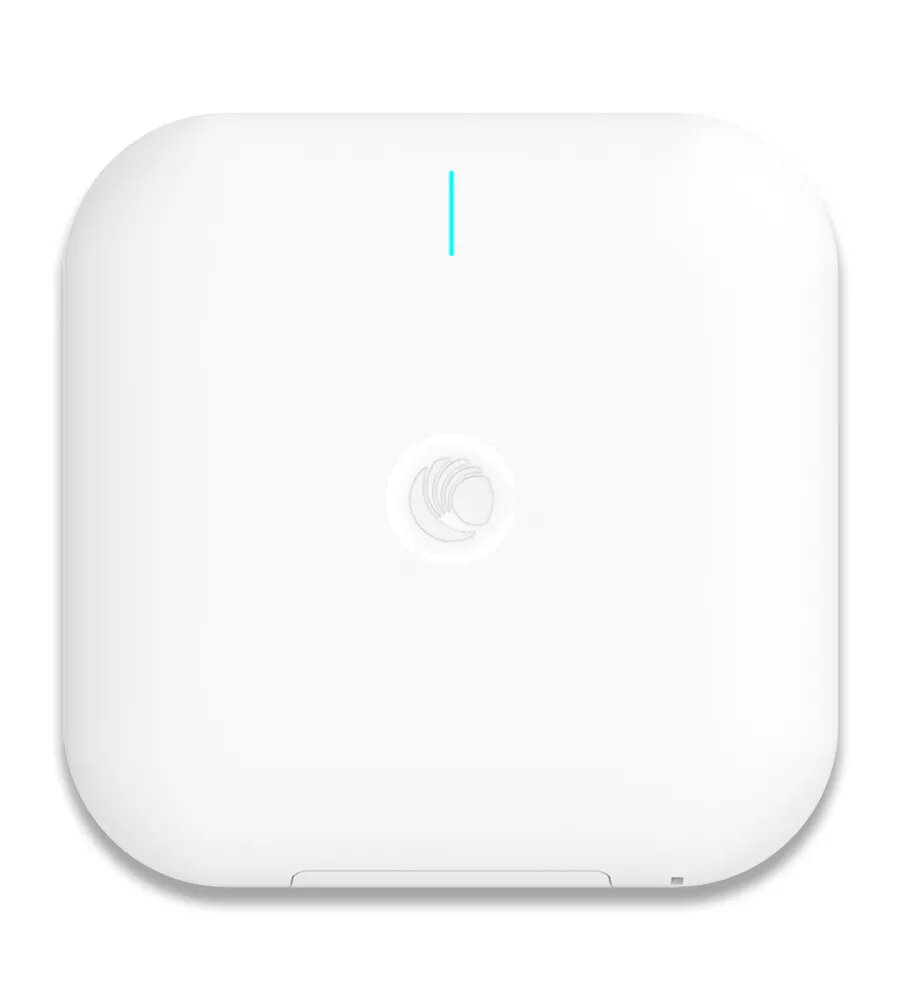

Wireless Access Point Cambium Networks XV3-8X00A00-EU

Name: Wireless Access Point Cambium Networks XV3-8X00A00-EU
Brand: Cambium Networks
SKU: 4222073
Price: 1656.49 EUR
Availability: OutOfStock

Hot Deals at AiO.lv

A curated selection of maximum value offers!

Wireless Access Point Cambium Networks XV3-8X00A00-EU 2.4GHz 5GHz Wi-Fi 6

Short description

The Cambium Networks XV3-8X00A00-EU is a high-performance wireless access point supporting dual-band 2.4 GHz and 5 GHz frequencies with a maximum data transfer rate of 4804 Mbit/s. It features advanced security protocols including WPA3 and supports multiple authentication methods such as 802.1x RADIUS and WPA2-Enterprise, ensuring secure connectivity. Its sleek white design makes it suitable for various environments, providing reliable and fast wireless access for users.

Warranty: 2 Years

SKU: 4222073

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Cambium Networks XV3-8X00A00-EU is an enterprise-grade Wi‑Fi 6 access point that supports dual-band 2.4 GHz and 5 GHz operation with a maximum data rate of 4804 Mbit/s. This software-defined, multi-radio AP includes dedicated scanning and BLE radios, WPA3 secure public access, application control and 802.3bz Ethernet to meet the needs of high-density deployments in enterprise, education, retail and public venues.

Advantages

The XV3-8 features a five-radio architecture that delivers high capacity and density while reducing the number of devices required. It provides seamless and fast roaming, automatic RF optimization and interference avoidance, plus a dedicated scanning radio for continuous monitoring and security reporting. The radio configuration can operate as two 5 GHz 4×4 plus one 2.4 GHz 4×4 or be reconfigured into a single 5 GHz 8×8 mode without firmware changes, enabling optimized performance for legacy 802.11ac clients and for Wi‑Fi 6 (802.11ax) devices. Management is supported via Cambium XMS cloud or cnMaestro cloud and on-premises platforms.

Suitable for

High-density enterprise offices and conference halls
Campus and education environments
Retail stores and shopping centres
Public venues, stadiums and transport hubs

Key specifications

Model: XV3-8X00A00-EU
Wireless standard: IEEE 802.11ax (Wi‑Fi 6) with backward compatibility to 802.11a/b/g/n/ac
Frequency bands: 2.4 GHz and 5 GHz
Maximum data rate: 4804 Mbit/s
Radios: up to five radios (three data radios + dedicated scan radio + BLE IoT radio)
Radio modes: two 5 GHz 4×4 + one 2.4 GHz 4×4 or single 5 GHz 8×8
Security: WPA3, 802.1x RADIUS, WPA2-Enterprise
Ethernet: 802.3bz (multi-gig) with 2 × RJ-45 LAN ports
Weight: 1.25 kg
Colour: White

How to use

Install the XV3-8 according to site mounting instructions and connect to the network using the provided RJ-45 ports and PoE-capable switch or injector that supports the device power requirements. Configure radio modes and SSIDs in the chosen management platform (Cambium XMS or cnMaestro) and apply security settings such as WPA3 or 802.1x RADIUS authentication. Use automatic RF optimization and the dedicated scanning radio to monitor network health and adjust channel and power settings as required for high-density coverage.

Usage recommendations

For high-density environments, deploy XV3-8 units with overlapping coverage planning and use the 8×8 5 GHz mode when many Wi‑Fi 6 clients are present; where legacy 802.11ac clients dominate, use the dual 5 GHz 4×4 configuration to increase capacity. Regularly monitor the scan radio reports and enable automatic RF optimization to maintain performance and minimize interference.

Specifications

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.: Internal
USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 0
Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 2
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 4804 Mbit/s
5 GHz:: Yes
2.4 GHz:: Yes
Product colour: The colour e.g. red, blue, green, black, white.: White
Placement: Where the product can be placed e.g. floor, wall.: Ceiling, Wall
Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.: WPA3, WPA2-Enterprise, WPA2-EAP, WPA2-CCMP, WPA2-AES, WPA2, WPA-TKIP, WPA-PSK, 802.1x RADIUS

All features

Operational conditions

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -20 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 50

Packaging content

Quantity per pack:: 1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 1.25 kg
Height: The measurement of the product from head to foot or from base to top.: 42 mm
Depth: The distance from the front to the back of something.: 235 mm
Width: The measurement or extent of something from side to side.: 235 mm

Certificates

Certification:: Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, PP2.0, FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS

Antenna

Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.: 6.7 dBi
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.: Internal

Design

LED indicators:: Y
Cable lock slot type:: Kensington
Cable lock slot: Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.: Yes
Product colour: The colour e.g. red, blue, green, black, white.: White
Placement: Where the product can be placed e.g. floor, wall.: Ceiling, Wall

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 35 W

Ports & interfaces

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 0
Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 2

Protocols

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.: VHT MCS rates, 16/64/256/1024-QAM, 20/40/80/160 MHz, TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO, IEEE 802.11 a/ac/ax/b/d/e/g/h/i/j/k/n/r/s/u/v/w

Security

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.: WPA3, WPA2-Enterprise, WPA2-EAP, WPA2-CCMP, WPA2-AES, WPA2, WPA-TKIP, WPA-PSK, 802.1x RADIUS

Features

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.11k, IEEE 802.11w, IEEE 802.11u, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v
Maximum data transfer rate (5 GHz):: 4804 Mbit/s
Maximum data transfer rate (2.4 GHz):: 1147 Mbit/s
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 4804 Mbit/s
5 GHz:: Yes
2.4 GHz:: Yes
