CATA TFH 6430 GBK Semi built-in Hood

Name: CATA TFH 6430 GBK Semi 02010409
Brand: CATA
SKU: 11602392
Price: 190.49 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

CATA TFH 6430 GBK Semi built-in Pull Out Hood 391.5 m³/h Black

CATA TFH 6430 GBK Semi built-in Hood Photo 1

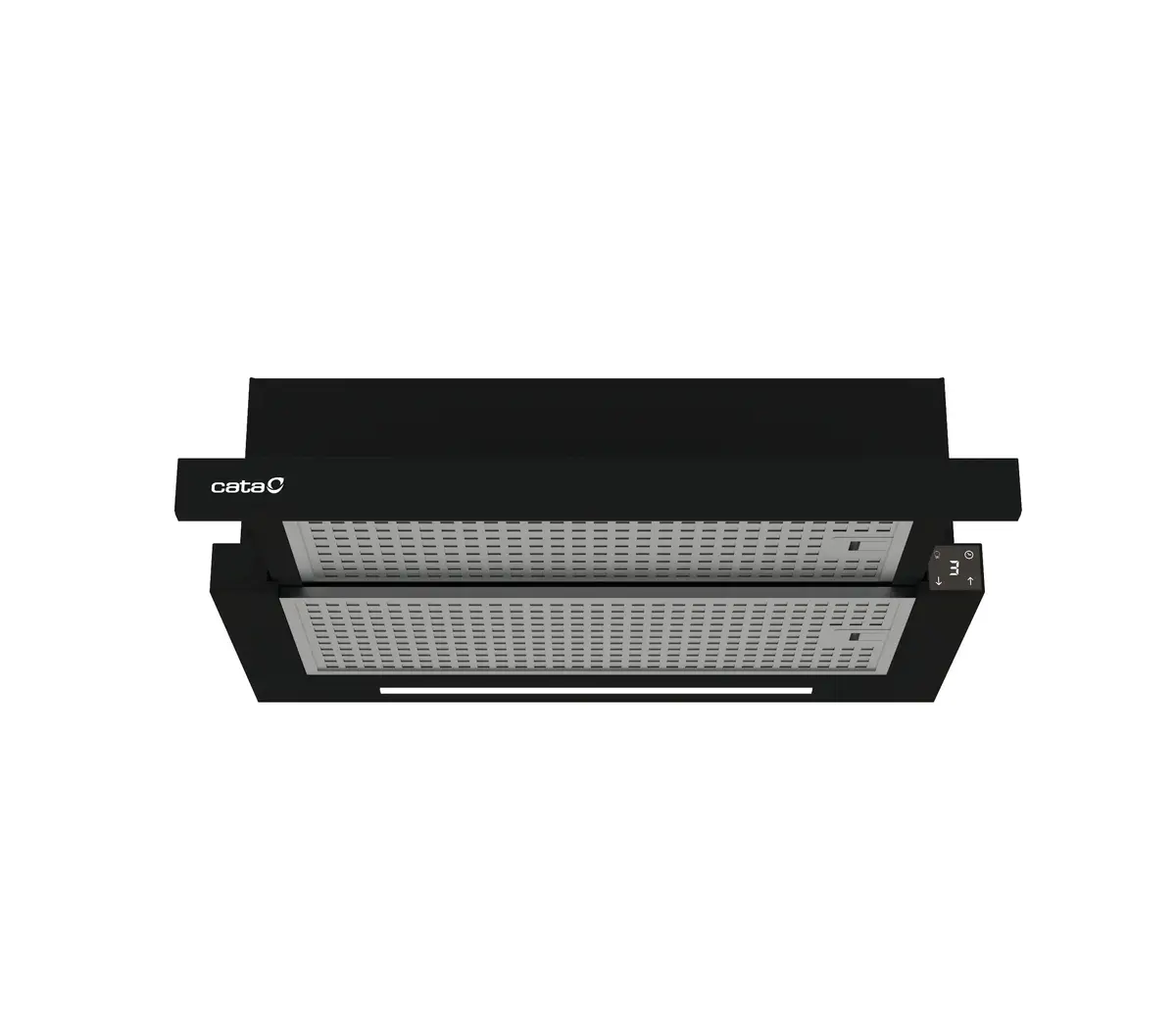

CATA TFH 6430 GBK Semi built-in Hood Photo 2

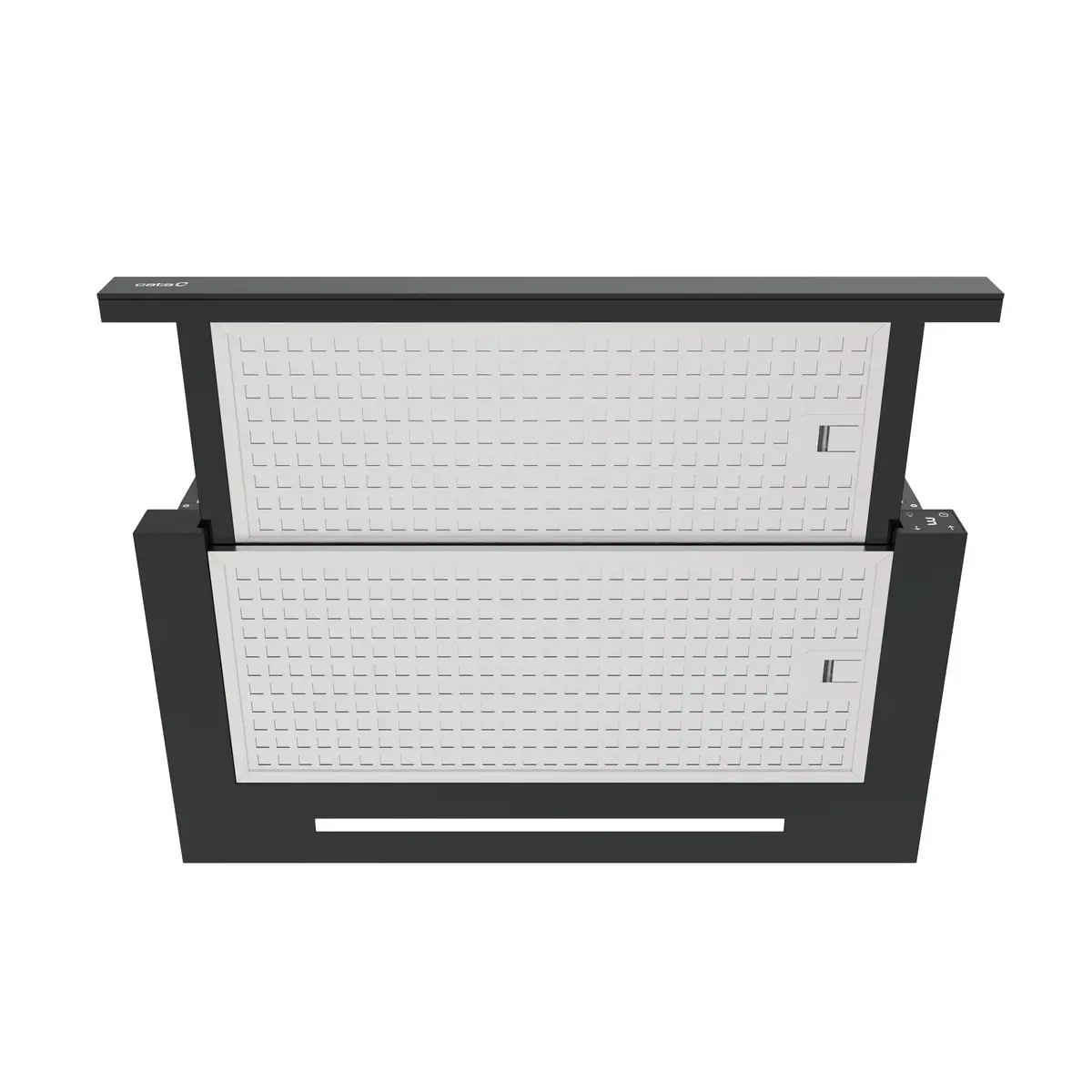

CATA TFH 6430 GBK Semi built-in Hood Photo 3

CATA TFH 6430 GBK Semi built-in Hood Photo 4

Short description

The CATA TFH 6430 GBK is a semi built-in pull out hood with a maximum extraction power of 391.5 m³/h. It features ducted and recirculating extraction options, an energy efficiency rating of A+++ to D, and a low power consumption of 0.45 W when off. The hood is equipped with two aluminum grease filters and a single 3 W LED bulb. Its sleek black design complements modern kitchens.

Warranty: 2 Years

SKU: 11602392

Manufacturer: CATA

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The CATA TFH 6430 GBK is a semi built-in pull out hood in black with a maximum extraction flow of 391.5 m³/h. It supports both ducted and recirculating installation and is equipped with two aluminium grease filters and one 3 W LED light. The hood has low standby consumption and an energy efficiency classification ranging A+ (product data) within the A+++ to D scale, making it suitable for modern kitchens requiring a compact, retractable extractor.

Advantages

This pull out hood offers a high extraction rate up to 391.5 m³/h and selectable ducted or recirculating operation. It includes a booster function for intensive extraction, a charcoal filter option for recirculation, a filter saturation indicator, and a dimmer-controlled SSLED light. The unit combines aluminium grease filters for effective grease capture with a compact semi built-in design in black.

Suitable for

Small to medium domestic kitchens where a retractable, semi built-in hood is preferred
Kitchens that require both ducted and recirculating extraction options
Spaces where discreet, integrated black appliances are desired

Key specifications

Type: Semi built-in (pull out)
Maximum extraction flow: 391.5 m³/h
Noise level: 65 dB
Number of speeds: 4 (plus booster)
Grease filters: 2 aluminium
Lighting: 1 × LED 3 W (SSLED) with dimmer
Charcoal filter: available for recirculation
Exhaust connection diameter: 150 mm
Annual energy consumption: 13 kWh
Fluid dynamic efficiency class: B
Grease filtering efficiency class: C
Lighting efficiency class: C
Product colour: Black

How to use

Install the CATA TFH 6430 GBK as a semi built-in pull out hood according to the manufacturer’s installation instructions, connecting either to a 150 mm duct for external extraction or fitting the charcoal filter for recirculating mode. Pull out the front section to switch the hood on and select the required speed; use the booster for short periods of intensive extraction. Adjust the SSLED light with the dimmer to the preferred brightness and replace or clean the aluminium grease filters regularly to maintain performance.

Usage recommendations

For best results, clean aluminium grease filters at least monthly depending on cooking frequency, replace the charcoal filter as recommended by the manufacturer when using recirculation mode, and avoid running the booster continuously to reduce noise and energy use.

Specifications

Width:: 598 mm
Maximum extraction power:: 391.5 m³/h
Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 65 dB
Type:: Semi built-in (pull out)
Grease filter type:: Aluminium
Energy efficiency class: Rating of how efficiently a device uses energy, affecting power consumption and costs.: A+
Bulb type:: LED
Product colour:: Black
Depth:: 320 mm

All features

Design

Type:: Semi built-in (pull out)
Product colour:: Black
Number of motors:: 1
Motor included:: Yes
Exhaust connection diameter:: 150 mm
Built-in display:: Yes

Filtering

Number of filters:: 2 pc(s)
Grease filter type:: Aluminium

Power

Power consumption (off):: 0.45 W
Power consumption (standby):: 0 W
Energy efficiency class: Rating of how efficiently a device uses energy, affecting power consumption and costs.: A+
Annual energy consumption: Energy consumption of XYZ kW/h per year is based on measurements calculated under standard conditions within 24 hours. Actual power consumption depends on the use of the device and its location.: 13 kWh
AC input frequency:: 50
AC input voltage:: 220 - 240
Energy efficiency index (EEI):: 41.5
Energy efficiency scale: Range of energy efficiency levels classifying devices from most to least energy-efficient.: A+++ to D
Energy efficiency class (old):: A+

Performance

Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 65 dB
Number of speeds:: 4
Type of extraction:: Ducted/Recirculating
Intensive speed:: Yes
Maximum extraction power:: 391.5 m³/h
Minimum distance from electric hob:: 550 mm
Minimum distance from gas hob:: 650 mm
Noise level (low speed):: 44 dB
Noise level (medium speed):: 62 dB
Noise level (high speed):: 65 dB
Pressure (Pa):: 152
Fluid dynamic efficiency class:: B
Lighting efficiency class:: C
Grease filtering efficiency class:: C
Boost position air extraction power:: 391.5 m³/h

Weight & dimensions

Width:: 598 mm
Depth:: 320 mm
Height (max):: 182 mm
Height (min):: 182 mm

Lighting

Bulb power:: 3 W
Bulb type:: LED
Number of bulbs:: 1 bulb(s)
