Semi built-in extractor CATA TF 5260 WH

Name: Semi built-in extractor CATA TF 02034501
Brand: CATA
SKU: 11391661
Price: 61.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Semi built-in extractor CATA TF 5260 WH 325 m³/h White

Fast shipping

Semi built-in extractor CATA TF 5260 WH Photo 1

Semi built-in extractor CATA TF 5260 WH Photo 2

Semi built-in extractor CATA TF 5260 WH Photo 3

Product data

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The CATA TF 5260 WH is a semi built-in extractor with a maximum extraction power of 325 m³/h. It features ducted and recirculating extraction types, a fluid dynamic efficiency class of E, and a white finish. The control type is a scrollbar, and it includes two metal grease filters. The extractor is equipped with two LED bulbs, each with a power of 5.5 W. It has an energy efficiency class of D and an annual energy consumption of 78 kWh.

Available for order: 12 pcs.

Warranty: 3 Years

SKU: 11391661

Manufacturer: CATA

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

Thursday {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Thursday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

04.08.2026 {{selectedOffer.courierDeliveryString}}

From 14.09 € (Weight: 18.00 kg)

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The CATA TF 5260 WH is a semi built-in (pull-out) kitchen extractor in white with a maximum extraction power of 325 m³/h. It supports both ducted and recirculating operation and is designed for installation in 600 mm cabinets. The extractor uses two metal grease filters and is fitted with two 5.5 W LED lamps. Energy efficiency is rated D with an annual consumption of 78 kWh, and the unit operates at a noise level of approximately 68 dB.

Advantages

This semi built-in extractor combines compact dimensions with a pull-out design for discreet integration into kitchen cabinetry. It provides both ducted and recirculating extraction modes to suit different ventilation setups. Metal grease filters offer durable grease capture, while LED lighting supplies clear illumination of the cooktop with low power consumption.

Suitable for

Homes with 600 mm wall cabinets where a semi built-in extractor is required
Kitchens requiring either ducted or recirculating ventilation
Cooking areas where low-power LED lighting is preferred

Key specifications

Type: Semi built-in (pull-out)
Width: 600 mm
Maximum extraction power: 325 m³/h
Operation modes: Ducted / Recirculating
Noise level: 68 dB
Grease filters: 2 metal filters
Number of speeds: 3
Lighting: 2 × LED 5.5 W (92.5 lx)
Fluid dynamic efficiency class: E
Lighting efficiency class: E
Grease filtering efficiency class: D
Energy efficiency class: D
Annual energy consumption: 78 kWh
Control type: Scrollbar
Depth: 280 mm
Colour: White

How to use

Install the extractor into a 600 mm wide cabinet following the manufacturer’s installation instructions and ensure correct ducting or recirculation setup as required. Use the scrollbar control to select one of three fan speeds, and extend the pull-out section when cooking to increase extraction. Replace or clean the metal grease filters regularly and switch on the LED lights as needed for cooktop illumination.

Usage recommendations

For optimal performance and lower noise, use the lowest fan speed sufficient for the cooking activity and ensure filters are cleaned or replaced according to the maintenance schedule. When using recirculation mode, fit and replace appropriate charcoal filters as specified by the manufacturer.

Specifications

Width: The measurement or extent of something from side to side.: 600 mm
Maximum extraction power: Speed of air extraction.: 325 m³/h
Noise level: The amplitude level of the undesired background noise, usually measured in decibels (db).: 68 dB
Type: Characteristics of the device.: Semi built-in (pull out)
Grease filter type: Grease filters typically used within kitchens to maintain hygiene standards. Also often a health and safety requirement, these filters collect grease and are usually available in permanent or washable formats.: Metal
Energy efficiency class: Rating of how efficiently a device uses energy, affecting power consumption and costs.: C
Energy efficiency class: Rating of how efficiently a device uses energy, affecting power consumption and costs.: D
Product colour: The colour e.g. red, blue, green, black, white.: White
Annual energy consumption: The amount of energy used by the product per year.: 78 kWh
Built-in display: A display which is part of the product, so you do not need to attach another display.: No
Number of speeds: The different speeds that the device can operate at.: 3
Grease filtering efficiency class:: D
Lighting efficiency class:: E
Fluid dynamic efficiency class:: E
Type of extraction: Type of cooker hood operating mode, ducted or recirculating.: Ducted/Recirculating

All features

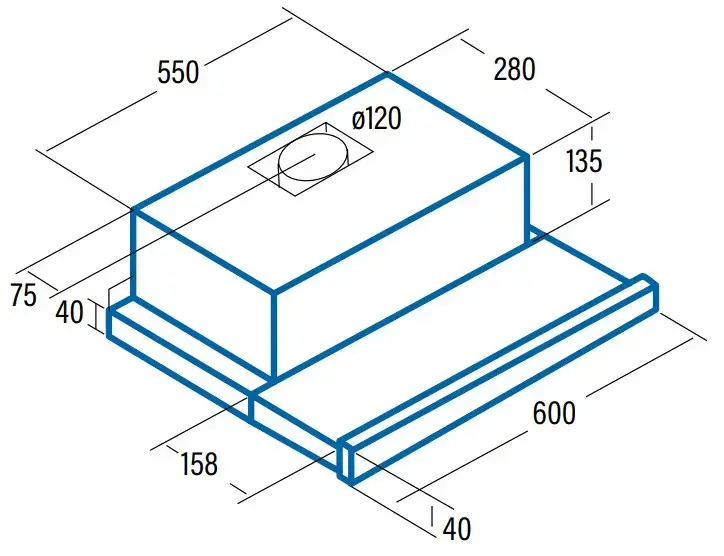

Weight & dimensions

Height (max): The maximum distance from the top to the bottom of the product.: 175 mm
Height (min): The minimum distance from the top to the bottom of the product.: 175 mm
Depth: The distance from the front to the back of something.: 280 mm
Width: The measurement or extent of something from side to side.: 600 mm

Power

AC input frequency:: 50
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 220 - 240
Annual energy consumption: The amount of energy used by the product per year.: 78 kWh
Motor power: Power of the motor.: 130 W
Connected load: The energy consumed when the device is connected.: 141 W
Energy efficiency scale: Range of energy efficiency levels classifying devices from most to least energy-efficient.: A+++ to D
Energy efficiency class: Rating of how efficiently a device uses energy, affecting power consumption and costs.: D
Energy efficiency class: Rating of how efficiently a device uses energy, affecting power consumption and costs.: C

Lighting

Lighting position:: Back
Illuminance:: 92.5 lx
Bulb type: The category of bulb used e.g. LED.: LED
Number of bulbs: The quantity of lightbulbs in the device.: 2 bulb(s)
Bulb power: The power of the lamp, usually measured in watts (W).: 5.5 W

Filtering

Dishwasher proof filter:: Yes
Washable filter:: Yes
Number of filters:: 2 pc(s)
Grease filter type: Grease filters typically used within kitchens to maintain hygiene standards. Also often a health and safety requirement, these filters collect grease and are usually available in permanent or washable formats.: Metal

Design

Motor included:: Yes
Number of motors:: 2
Exhaust connection diameter:: 120 mm
Exhaust location:: Top
Control type: The way in which the device is controlled.: Scrollbar
Built-in display: A display which is part of the product, so you do not need to attach another display.: No
Product colour: The colour e.g. red, blue, green, black, white.: White
Type: Characteristics of the device.: Semi built-in (pull out)

Performance

Minimum distance from gas hob:: 650 mm
Minimum distance from electric hob:: 550 mm
Pressure (Pa):: 200
Noise level: The amplitude level of the undesired background noise, usually measured in decibels (db).: 68 dB
Noise level (low speed):: 60 dB
Number of speeds: The different speeds that the device can operate at.: 3
Grease filtering efficiency class:: D
Lighting efficiency class:: E
Fluid dynamic efficiency class:: E
Type of extraction: Type of cooker hood operating mode, ducted or recirculating.: Ducted/Recirculating
Maximum extraction power: Speed of air extraction.: 325 m³/h

Hide Show all

Instructions


mmo_70356555_1753962273_2667_188596.pdf


Description

Instructions


mmo_70356555_1753962273_2667_188596.pdf


Machine translation. Load original

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

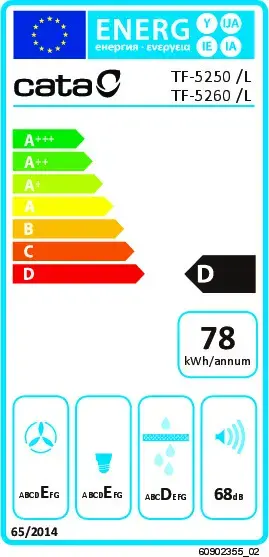

Energy label

02034501

Model

Device manufacturer code

CATA

Manufacturer

Device manufacturer

600 mm

Width

The measurement or extent of something from side to side.

78 kWh

Annual energy consumption

The amount of energy used by the product per year.

Energy efficiency class

Rating of how efficiently a device uses energy, affecting power consumption and costs.

Energy efficiency class

Rating of how efficiently a device uses energy, affecting power consumption and costs.

Metal

Grease filter type

Grease filters typically used within kitchens to maintain hygiene standards. Also often a health and safety requirement, these filters collect grease and are usually available in permanent or washable formats.

Built-in display

A display which is part of the product, so you do not need to attach another display.

Semi built-in (pull out)

Type

Characteristics of the device.

68 dB

Noise level

The amplitude level of the undesired background noise, usually measured in decibels (db).

Number of speeds

The different speeds that the device can operate at.

Ducted/Recirculating

Type of extraction

Type of cooker hood operating mode, ducted or recirculating.

325 m³/h

Maximum extraction power

Speed of air extraction.

White

Product colour

The colour e.g. red, blue, green, black, white.

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Semi built-in extractor CATA TF 5260 WH cost, and is it available for purchase?

The price is 61.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 12 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on Thursday at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All CATA products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized CATA service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: width, maximum extraction power, noise level, type, grease filter type, energy efficiency class, energy efficiency class, product colour, annual energy consumption, built-in display, number of speeds, grease filtering efficiency class, lighting efficiency class, fluid dynamic efficiency class, type of extraction, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Semi built-in extractor CATA TF 5260 WH?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
