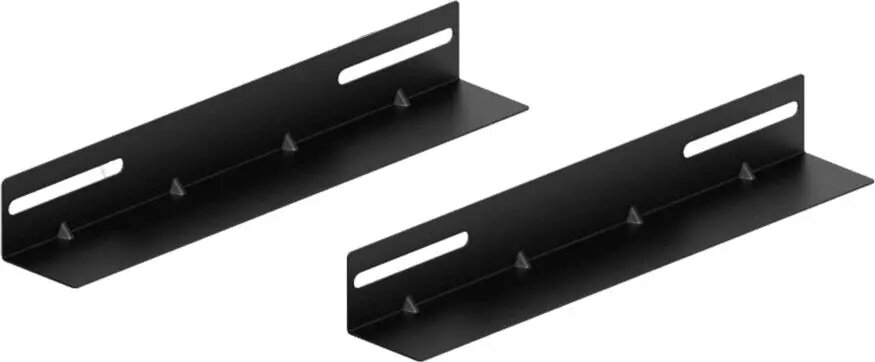

Rail set type L 19" CAYMON WPR60LR for 19-inch racks, L-shaped mounting rails

CAYMON WPR60LR is an L-shaped rail set designed for 19-inch equipment racks. The rails provide a secure mounting solution for rack-mounted devices and accessories, supporting installation and alignment inside standard 19" enclosures. The set is engineered for compatibility with server, audio and networking hardware where L-shaped mounting rails are required to fit depth variations or to add intermediate support rails in data rooms, broadcast racks and AV cabinets.

Advantages

The L-shaped design allows flexible positioning and additional support for equipment at varying depths while maintaining compatibility with standard 19" rack spacing. Constructed to provide stable attachment points, the rails reduce lateral movement and help keep mounted devices aligned. The set is suitable for mixed-use installations where both front and side support are needed, and it enables tidy, consistent mounting without the need for custom fabrication.

Suitable for

• Mounting servers and network switches in 19" racks where extra side support is required
• Securing audio and broadcast equipment in rack cabinets and broadcast racks
• Adding intermediate support rails for deeper or non-standard depth devices
• Retrofit installations that need L-shaped rails to adapt existing rack layouts

Key specifications

• Form factor: L-shaped mounting rails for 19" rack systems
• Compatibility: Designed for standard 19" rack spacing and rack-mounted equipment
• Function: Provides front and side support for rack-mounted devices and accessories
• Typical applications: Server rooms, AV cabinets, broadcast racks and networking enclosures

How to use

Install the L-shaped rails by aligning the rail mounting holes with the 19" rack vertical posts and secure using appropriate rack hardware. Position the rails at the required depth to support the device's front and side mounting points, ensuring even support across the unit. After fitting the rails, mount the equipment onto the rails following the device manufacturer's mounting instructions and verify that all fasteners are tightened to prevent movement.

Usage recommendations

Use compatible rack screws and cage nuts or threaded posts to match your rack type, and check load ratings of the rails against the weight of installed equipment. For heavy devices, use additional supports or multiple rail pairs and ensure proper ventilation and cable management to maintain system stability and serviceability.
