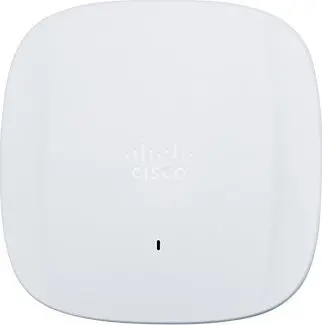

Wireless Access Point Cisco Meraki CW9166I 3400 Mbit/s 2.4GHz 5GHz 6GHz

The Cisco Meraki CW9166I is a Wi‑Fi 6E access point that delivers up to 3400 Mbit/s across the 2.4 GHz, 5 GHz and 6 GHz bands. Designed for enterprise environments, it supports flexible deployment modes (cloud-managed via Meraki Dashboard or on‑premises with Catalyst 9800 controllers) and includes three 4x4 radios plus an integrated Bluetooth radio. The device offers advanced security, automatic RF optimization, and capabilities for location-aware services and large-scale hybrid work environments.

Advantages

The CW9166I uses the 6 GHz band expansion to increase capacity, reduce interference, and deliver higher throughput. It provides MU‑MIMO and OFDMA for efficient multi-client transmission, an integrated Bluetooth Low Energy radio for beaconing and asset/location services, and a dedicated scanning radio for continuous RF monitoring and threat detection without affecting client traffic. The access point supports AES hardware encryption, 802.1X authentication, WPA3 and 192‑bit encryption, and offers seamless migration between cloud and on‑premises management.

Suitable for

• Enterprise offices and campus networks requiring high-capacity Wi‑Fi 6E coverage
• Retail and hospitality environments needing secure guest access and PCI compliance checks
• Locations using location-aware services, asset tracking, or Bluetooth beacons
• Environments that require centralized cloud management or on‑premises controller management

Key specifications

• Wi‑Fi standard: Wi‑Fi 6E (802.11ax, includes 6 GHz band)
• Maximum data rate: 3400 Mbit/s
• Radio configuration: three 4x4 radios plus dedicated tri‑band scanning radio
• Bluetooth: integrated BLE radio
• Ethernet ports: 1 x RJ‑45 (supports 100/1000/2.5G/5G Mbps)
• Security: AES hardware encryption, 802.1X, WPA3, 192‑bit encryption support
• Weight: 1.6 kg
• Colour: White
• Model / MPN: CW9166I‑E (EAN: 0889728464116)

How to use

Install the CW9166I on the ceiling or wall and connect it to the network via the RJ‑45 port. For cloud management, connect the access point to the internet so it can register in the Meraki Dashboard and download its configuration automatically. For on‑premises management, configure the Catalyst 9800 Wireless LAN Controller and adopt the access point there. Use the Meraki Dashboard or Catalyst controller to define SSIDs, security settings (WPA3/802.1X), QoS policies, and guest access. The dedicated scanning radio continuously monitors RF conditions while client radios handle user traffic.

Usage recommendations

Place access points to ensure overlapping coverage without excessive co‑channel interference, enable the dedicated scanning radio function, and schedule regular firmware updates via Meraki Dashboard. Choose cloud or on‑premises management based on organizational policy, and enable WPA3 and 802.1X for enterprise security. Use Meraki Health and RF optimization features to monitor performance and adjust placement or power settings as needed.
