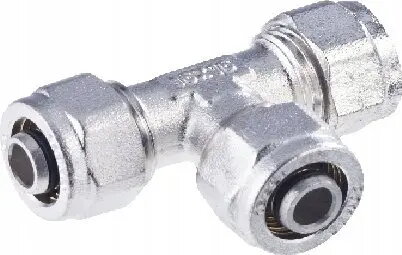

Brass compression tee Comap TurboSKIN 20×20×20 (screwable) model 9467051-02

Comap TurboSKIN brass compression tee 20×20×20 (screwable) is a three-way plumbing fitting designed to connect three 20 mm pipes in heating, potable water and sanitary installations. The fitting uses a screwable compression system that creates a mechanical, leak-resistant joint without soldering. Constructed from brass with a TurboSKIN surface, it is intended for use with copper, multilayer and compatible plastic pipes when used together with the correct compression sleeves and nuts.

Advantages

The screwable compression connection allows quick assembly and disassembly without heat or special tools, reducing installation time and enabling straightforward maintenance and repairs. Brass construction offers good corrosion resistance and mechanical strength for typical domestic and light commercial systems. The TurboSKIN surface improves handling and offers a uniform appearance while the 20×20×20 dimensions make the tee suitable for compact branch connections and distribution points.

Suitable for

• Connecting three 20 mm pipes in heating circuits
• Branching potable water distribution lines
• Sanitary installations and repair works
• Temporary or permanent connections where soldering is not desired

Key specifications

• Material: brass body with surface finish (TurboSKIN)
• Connection type: screwable compression fittings for all three ends
• Pipe diameter compatibility: 20 mm
• Suitable pipe materials: copper, multilayer, compatible plastic pipes when using appropriate compression sleeves
• Application areas: heating systems, potable water supply, sanitary systems

How to use

Ensure pipe ends are cut square, deburred and free of damage. Slide the compression nut and sleeve onto each pipe end, insert the pipe fully into the tee until it seats, then hand-tighten the compression nuts and complete final tightening with appropriate wrenches to the manufacturer’s recommended torque. Do not use soldering or excessive force; confirm the correct sleeve type is installed for the pipe material. After installation, pressure-test the system according to local codes and inspect all joints for leaks.

Usage recommendations

Use the fitting with the correct compression sleeves for the pipe material and follow local installation standards and pressure-testing procedures. Avoid overtightening to prevent deformation of sleeves or pipes. For long-term installations in aggressive environments, verify compatibility of brass with system media and consult documentation for maximum operating pressures and temperatures.
