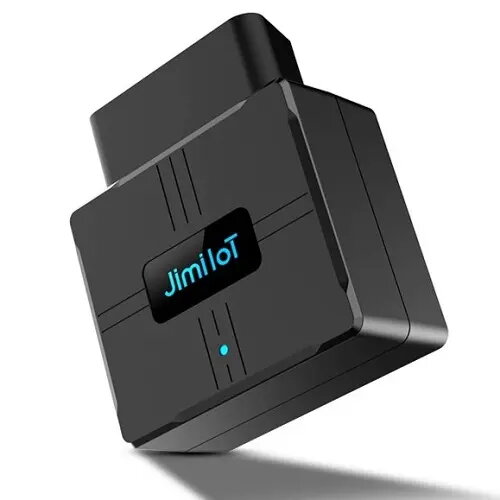

Concox Vehicle GPS Tracker OBDII VG502 — OBD-II Plug-in GPS Tracker with Diagnostics

Concox Vehicle GPS Tracker OBDII VG502 is an OBD-II plug-in GPS tracker that combines real-time GNSS positioning and vehicle diagnostics in a compact module. The device plugs directly into a vehicle’s OBD-II port, providing position data via GPS + BDS, reading OBD vehicle diagnostic parameters, and sending alerts for events such as device removal, overspeed, ignition state changes, and geofence breaches. VG502 includes driving behavior analysis based on a UBI algorithm and supports Bluetooth BLE 4.0 for extended accessory connectivity. A nano-SIM with mobile data is required (SIM not included).

Advantages

The VG502 requires no wiring or professional installation: simply plug into the standard OBD-II port. It provides high-accuracy positioning with combined GPS and BeiDou reception and fast time-to-first-fix for reliable tracking. Through the OBD interface the tracker reads diagnostic data and ignition status while the built-in accelerometer enables detection of harsh acceleration, harsh braking and sharp turns. Integrated alerts (overspeed, geofence, device removal) and Bluetooth connectivity make the unit suitable for both private vehicles and fleet monitoring.

Suitable for

• Real-time vehicle tracking for passenger cars and light commercial vehicles
• Fleet management and remote monitoring of company vehicles
• Theft detection and recovery with device removal and geofence alerts
• Driving behaviour monitoring and usage-based insurance (UBI) applications

Key specifications

• GNSS systems: GPS and BeiDou (BDS) with integrated GNSS antenna
• Positioning accuracy: <2.5 m CEP; tracking sensitivity -162 dBm
• Time to first coordinate: hot start <5 s, cold start <32 s
• Cellular: GSM 850/900/1800/1900 MHz with GPRS TCP/IP data
• Power and battery: operating voltage 9–36 V DC; internal 50 mAh / 3.7 V Li‑Po backup battery
• OBD connector: standard OBD-II port; supports ISO9141-2, ISO14230-4 (KWP), ISO15765-4 (CAN)
• Interfaces: CAN Bus and K-Line; Bluetooth BLE 4.0 support
• Sensors and indicators: built-in accelerometer; blue status LED
• Operating conditions: -20 °C to +70 °C, 5–95% RH (non-condensing)
• Physical: 61 × 52 × 26 mm, 55 g

How to use

Insert a nano-SIM with an active data plan into the VG502, then plug the device into the vehicle’s OBD-II port (usually located under the dashboard). After power-up the tracker acquires satellite signals and transmits location and diagnostic data to the selected tracking platform. Configure alerts, geofences and driving behaviour detection through the compatible platform or mobile app (Tracksolid compatibility has been validated). Regularly check device status and platform settings to ensure uninterrupted data transmission.

Usage recommendations

For reliable operation, use a mobile data plan with stable GPRS/TCP-IP connectivity and keep the OBD-II connector free of debris. Ensure the vehicle’s OBD-II port supplies power in the intended usage scenario (some vehicles cut power to the OBD port when ignition is off). Test geofence and alert settings after installation and periodically verify firmware and platform compatibility for optimal diagnostics and tracking performance.
