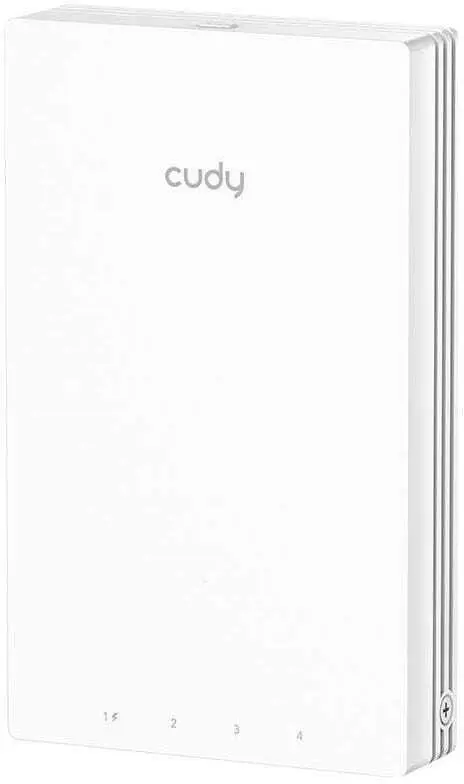

Wall-Plate Wi‑Fi 6 Access Point Cudy AX3000 (AP3000 WALL) — Dual-Band 2.4/5 GHz, 2976 Mbps, Gigabit Ethernet

The Cudy AX3000 (AP3000 WALL) is a wall‑plate Wi‑Fi 6 access point designed to provide wired and wireless connectivity from a standard wall outlet location. It delivers dual‑band wireless on 2.4 GHz and 5 GHz with a combined theoretical maximum throughput of 2976 Mbps and supports modern Wi‑Fi standards including IEEE 802.11ax/ac/n. The device is finished in white and integrates a Gigabit Ethernet RJ‑45 port for wired backhaul and local device connection, making it suitable for deployments in hospitality, offices and residences that require clean wall‑mounted access points.

Advantages

The AP3000 WALL offers Wi‑Fi 6 performance in a compact wall‑plate form factor, enabling improved capacity and efficiency for environments with multiple client devices. It supports WPA, WPA2 and WPA3 security algorithms and includes features such as PoE support, PoE passthrough and multi‑SSID/captive portal options for flexible network management. With a Gigabit Ethernet interface and support for common networking and Ethernet standards, the unit can integrate into existing wired infrastructure while providing high wireless data rates.

Suitable for

• Hotel guest rooms and hospitality corridors where a discreet wall‑mounted AP is preferred
• Small offices and meeting rooms that need reliable dual‑band Wi‑Fi coverage
• Residential apartments and multi‑dwelling units requiring a wall‑mounted access point with wired connectivity
• Deployments that need PoE powered devices and PoE passthrough to feed downstream equipment

When it may not be suitable

This wall‑plate access point is intended to cover a single room or small area rather than serve as a high‑capacity central AP for large open spaces; for wide open‑plan offices or large public areas a ceiling or dedicated high‑gain AP with broader coverage may be more appropriate. The unit provides a single integrated GbE port for local wired connectivity; environments requiring multiple wired ports at the outlet may need an additional switch or a different device.

Key specifications

• Wireless bands: Dual‑band 2.4 GHz and 5 GHz
• Maximum combined wireless throughput: 2976 Mbit/s
• Supported Wi‑Fi standards: IEEE 802.11ax (Wi‑Fi 6), 802.11ac, 802.11n and legacy standards
• Security: WPA, WPA2, WPA3
• Ethernet: 1× Gigabit RJ‑45 LAN port (10/100/1000 Mbit/s)
• Power: Power over Ethernet (PoE) support and PoE passthrough capability
• Physical colour: White
• Weight: approximately 0.2986 kg

How to use

Install the AP3000 WALL into a standard wall‑plate location and connect a Gigabit Ethernet cable from a PoE switch or injector to its RJ‑45 port to provide both power and network backhaul. Configure wireless settings via the device’s management interface or centralized multi‑AP controller, set SSIDs and security (WPA/WPA2/WPA3), and enable captive portal or multi‑SSID options if required. If needed, use the PoE passthrough to power a downstream PoE device such as an IP phone. Place the unit where it has unobstructed coverage of the target room for best performance.

What to consider before purchase

• Whether a wall‑plate form factor and single‑room coverage match the deployment needs
• Availability of PoE power (802.3at/af or compatible injector) for powering the access point
• Requirement for additional wired ports at the outlet — an external switch may be needed
• Compatibility with existing network management systems if centralized multi‑AP control is required

Usage recommendations

For best results, mount the access point at the height and position that minimizes obstruction and interference from metal objects and large appliances; use a PoE switch that meets the device power requirements and plan SSID and channel allocation across multiple APs to reduce co‑channel overlap.
