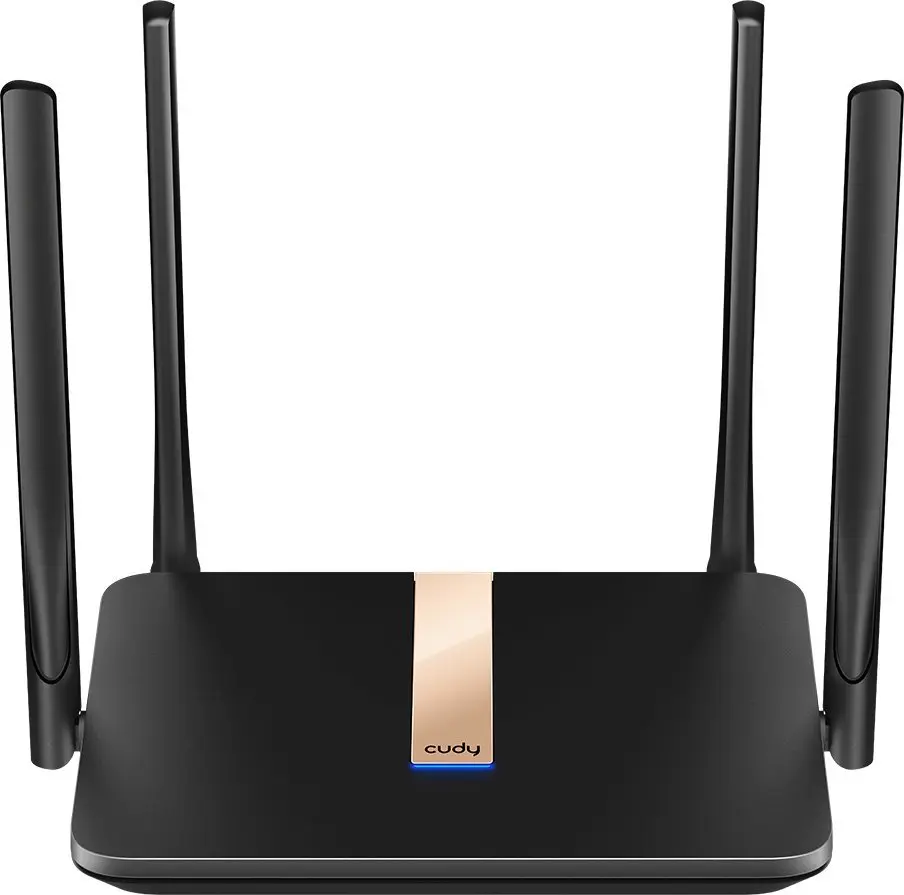

Tabletop Wireless Router Cudy LT500D 4G Dual-band (2.4/5 GHz), 4x LAN, NanoSIM, Wi‑Fi 5, 128MB RAM

The Cudy LT500D 4G Dual-band Black is a wireless router that provides 4G mobile Internet and dual-band Wi‑Fi (2.4 GHz and 5 GHz). It accepts a NanoSIM card and can be used as a primary internet source in areas without fixed broadband or as a backup router when connected to a WAN/LAN Ethernet line. The device supports external detachable SMA antennas to improve cellular reception and is compatible with 2G/3G/4G networks.

Advantages

The router supports automatic failover between WAN/LAN and 4G so it switches to the mobile network if the wired connection fails. It supports multiple VPN client protocols (PPTP, L2TP, OpenVPN, WireGuard, IPsec and ZeroTier) for secure remote connections. LT500D works in LAN mode as a standard 4G router and in WAN mode it can keep both 4G and WAN available while prioritizing wired Internet for connected devices. It also supports more than 15 DDNS providers for remote management and a combined data throughput on Wi‑Fi of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, with cellular download speeds up to 150 Mbps and upload up to 50 Mbps.

Suitable for

• Rural homes without reliable fixed broadband
• Small offices that need a wired primary connection with 4G backup
• Vacation homes or temporary locations requiring quick Internet via SIM
• Remote workers requiring VPN connectivity to company networks

Key specifications

• Model: Cudy LT500D
• Mobile network generation: 4G (backward compatible with 2G/3G)
• SIM card type: NanoSIM
• Wi‑Fi bands and speeds: 2.4 GHz up to 300 Mbps, 5 GHz up to 867 Mbps
• Ethernet: WAN (RJ‑45) and Fast Ethernet LAN ports 10/100 Mbps
• External antenna: 2 detachable SMA connectors
• VPN support: PPTP, L2TP, OpenVPN, WireGuard, IPsec, ZeroTier
• DDNS: compatible with 15+ providers

How to use

Insert a NanoSIM card into the router, power it on and follow the web-based setup to configure mobile network credentials or connect an Ethernet cable to the WAN/LAN port for fixed-line Internet. Choose operating mode (LAN or WAN) in the administration interface: in WAN mode the router can use the wired connection as the primary source while keeping 4G as automatic backup; in LAN mode it operates as a standard 4G router. Configure Wi‑Fi SSIDs and passwords, set up VPN client parameters if remote secure access is required, and attach external antennas to the SMA ports for improved signal if needed.

Usage recommendations

Place the router near a window or a higher position for better 4G reception, and use the detachable external antennas outdoors or in elevated positions when signal strength is weak. For stable office use, connect the primary Internet to the WAN/LAN port and enable automatic failover to 4G. Keep firmware updated and secure administrative access with a strong password.
