Wireless router Cudy LT500E Dual-band Wi‑Fi 5 (2.4/5 GHz), Fast Ethernet, 4G (LTE-TDD/FDD), white

The Cudy LT500E is a compact desktop and pole-mountable wireless router that provides Dual-band Wi‑Fi 5 (802.11ac) connectivity across 2.4 GHz and 5 GHz bands with up to 867 Mbit/s WLAN throughput. It accepts a nano SIM for 4G mobile network access (LTE‑TDD / LTE‑FDD) and supports 3G WCDMA, while wired connectivity is handled by a WAN-capable RJ‑45 port and four Fast Ethernet LAN ports (10/100 Mbit/s). LED indicators show system status for LAN, LTE, Link, System, WAN, WLAN and WPS. The unit is white, weighs approximately 0.3 kg and is suitable for creating primary internet access or mobile-broadband failover for home and small office environments.

Advantages

The router combines cellular and wired WAN options in a single device, allowing automatic failover between 4G and Ethernet connections. Dual‑band Wi‑Fi 5 with MU‑MIMO support improves concurrent device performance on both 2.4 GHz and 5 GHz bands. A compact form factor supports either desktop placement or pole mounting, and front-panel LEDs provide clear operational status at a glance. Four Fast Ethernet LAN ports enable wired device connections for stable throughput where needed.

Suitable for

• Home internet access with optional mobile backup
• Small office network connectivity and basic wired device integration
• Temporary sites such as exhibitions or pop‑up stores requiring quick internet setup
• Surveillance camera systems needing both Wi‑Fi and wired connections
• Recreational vehicles (RVs) and mobile environments using SIM‑based broadband

Key specifications

• Wireless standard: IEEE 802.11ac (Wi‑Fi 5), dual‑band 2.4 GHz and 5 GHz
• Maximum WLAN throughput: up to 867 Mbit/s (on 5 GHz)
• Mobile network support: 4G (LTE‑TDD / LTE‑FDD) and 3G WCDMA
• SIM: nano SIM slot for cellular data
• Ethernet: 1x WAN (RJ‑45) and 4x Fast Ethernet LAN ports (10/100 Mbit/s)
• Multi‑user technology: MU‑MIMO support

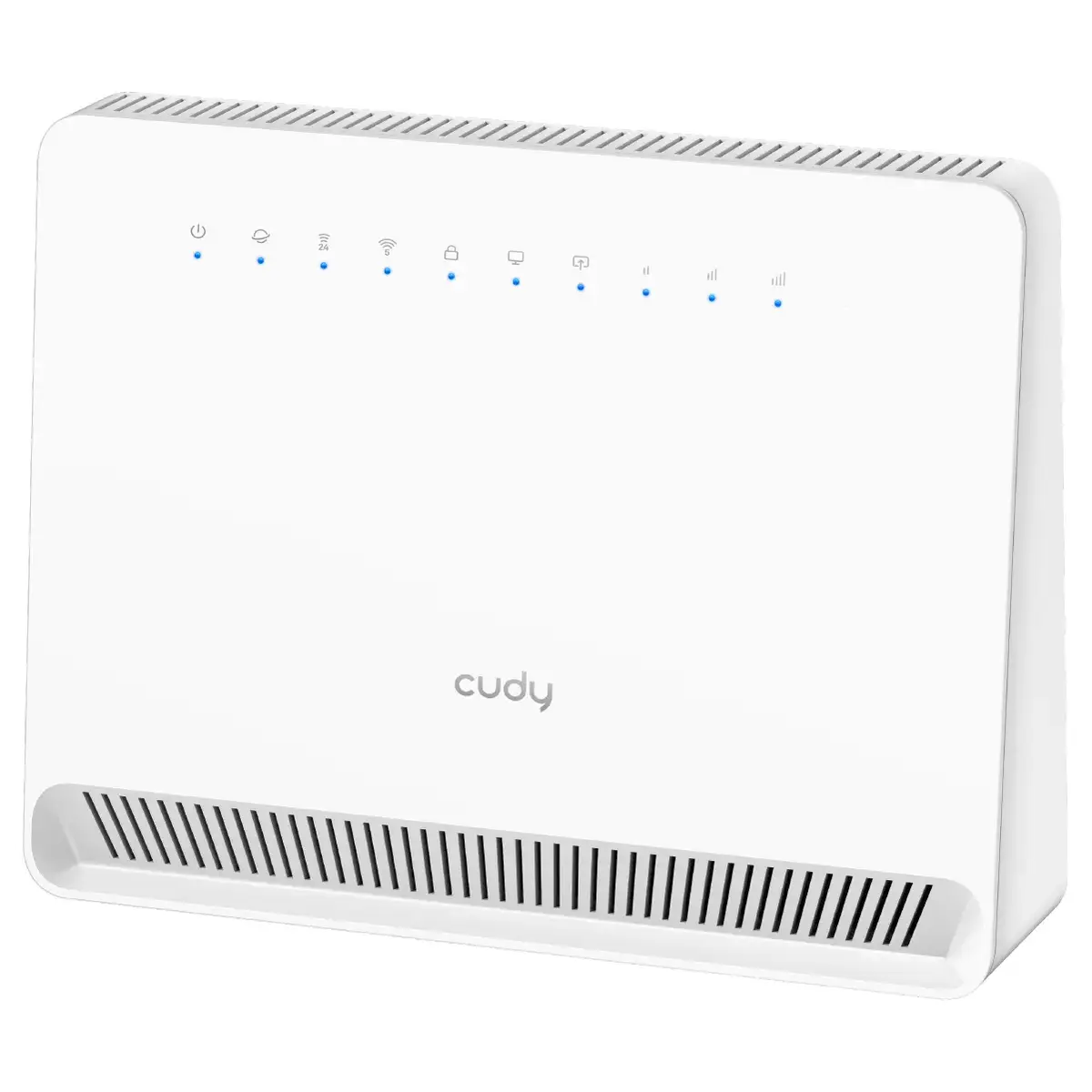

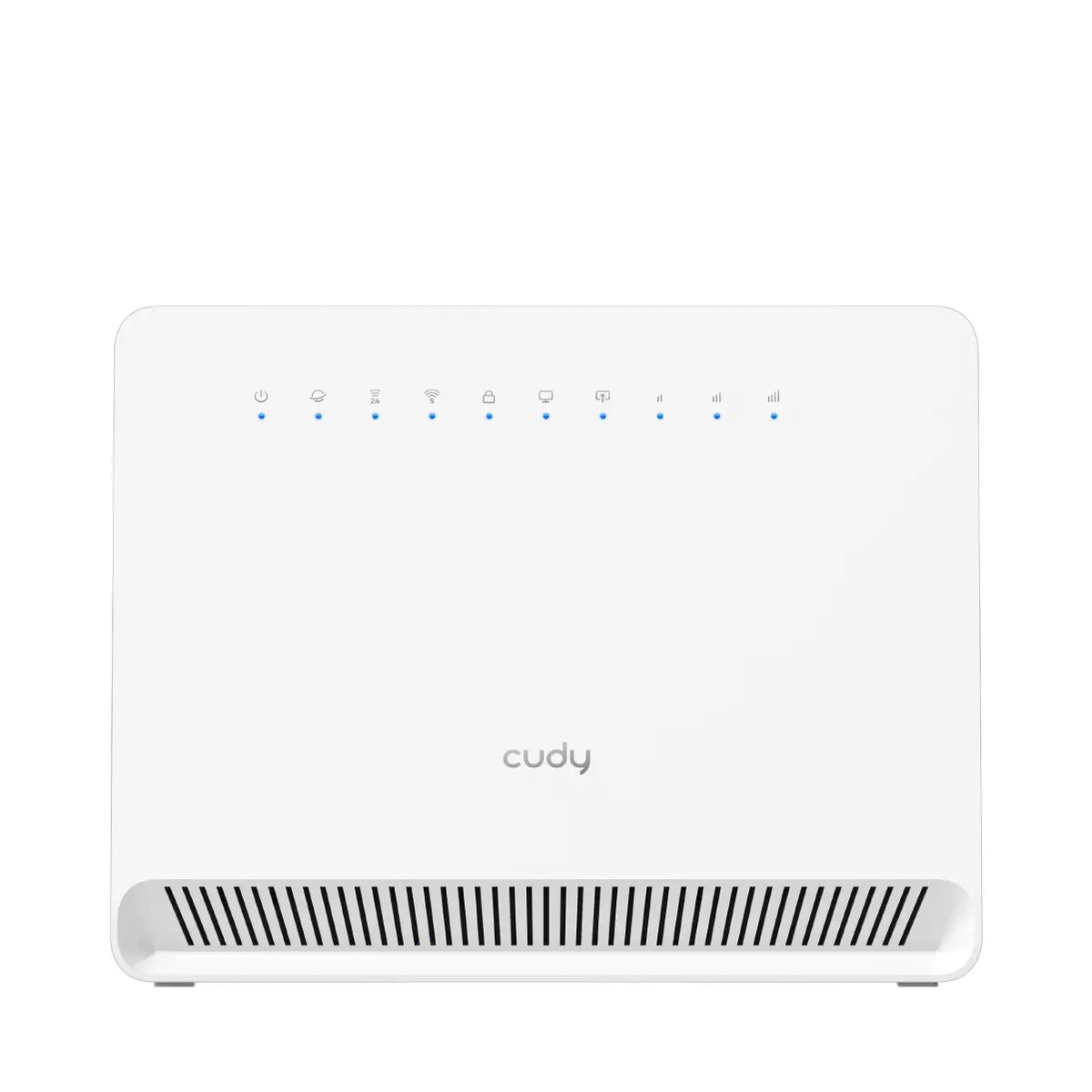

• Indicators: LAN, LTE, Link, System, WAN, WLAN, WPS LEDs
• Form factor: desktop or pole mountable; colour: white; weight approx. 0.3 kg

How to use

Install a compatible nano SIM in the SIM tray and connect the router to power. For wired WAN use, connect the upstream modem or Ethernet line to the WAN RJ‑45 port; for cellular operation the device will obtain a mobile data connection automatically once the SIM is active. Connect client devices via Wi‑Fi on 2.4 GHz or 5 GHz SSIDs or by using any of the four Fast Ethernet LAN ports. Use the web‑based management interface to configure APN settings, wireless SSIDs, security (WPA2), and failover behavior between Ethernet and 4G. LEDs on the front panel indicate link and system status during setup and operation.

Usage recommendations

Place the router in a location with good cellular signal if using 4G as primary or backup WAN. For optimal wireless performance, position the device centrally relative to connected clients and avoid large obstructions. Configure separate SSIDs for 2.4 GHz and 5 GHz where device compatibility or range requirements differ, and enable WPA2 encryption to secure wireless connections. For environments with many wired devices or higher throughput needs, connect critical devices via Ethernet to ensure stable performance.
