Cullmann LANCOM LX-6400 — dual-band access point

Name: Wireless Access Point Cullmann LANCOM 61821
Brand: Cullmann
SKU: 2080503
Price: 49.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Wireless Access Point Cullmann LANCOM LX-6400 (EU) — dual-band 2.4/5 GHz, 3550 Mbps, 8 antennas, 2x RJ-45, PoE, white

Cullmann LANCOM LX-6400 — dual-band access point Photo 1

Cullmann LANCOM LX-6400 — dual-band access point Photo 2

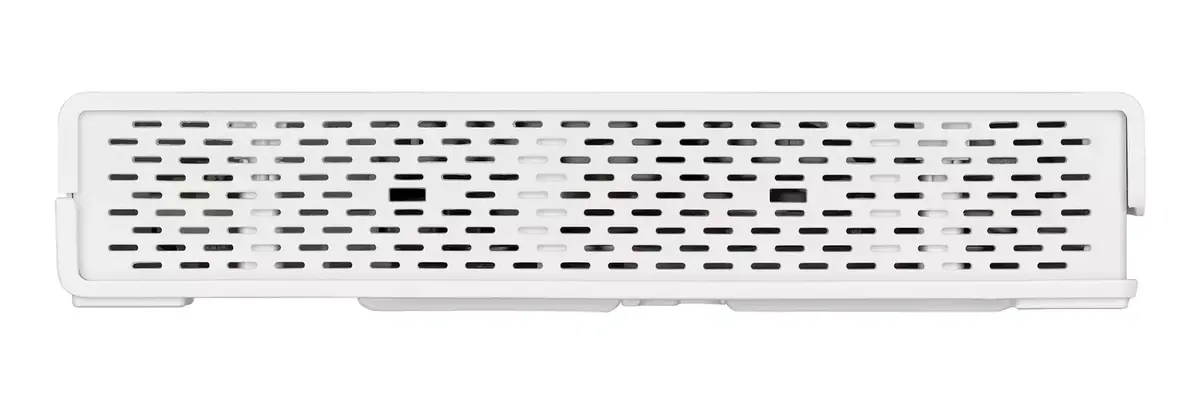

Cullmann LANCOM LX-6400 — dual-band access point Photo 3

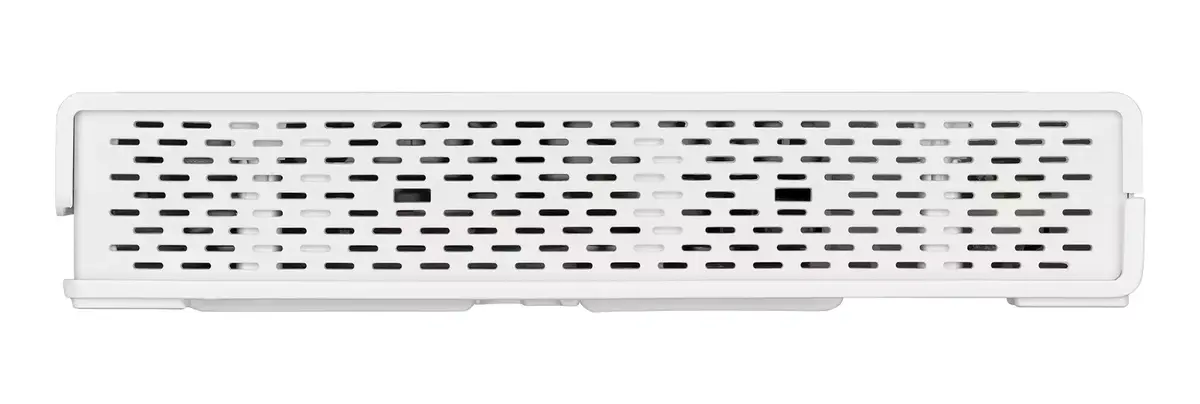

Cullmann LANCOM LX-6400 — dual-band access point Photo 4

Cullmann LANCOM LX-6400 — dual-band access point Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Cullmann LANCOM LX-6400 (EU) is a dual-band wireless access point operating on 2.4 GHz and 5 GHz with a maximum aggregated throughput of 3550 Mbps. It features eight antennas, two Ethernet RJ-45 ports supporting 10/100/1000/2500 Mbps, PoE power, and broad security support including WPA2/WPA3, AES-CCMP/GCMP, EAP methods and legacy options. Suited for dense Wi‑Fi deployments, office networks and high-capacity wireless backhaul.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 2080503

Manufacturer: Cullmann

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.82 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Cullmann LANCOM LX-6400 (EU) is a dual-band Wi‑Fi 6 access point designed for high-density environments and high-capacity wireless networks. Operating concurrently on 2.4 GHz and 5 GHz bands, it provides an aggregated throughput of up to 3550 Mbps using up to eight integrated antennas and multi-user radio technologies. The device includes two RJ-45 Ethernet ports with gigabit-plus speeds and supports power over Ethernet (PoE) as well as an external power supply option. Security protocols include WPA2/WPA3 and enterprise-grade authentication methods to meet modern network requirements.

Advantages

The LANCOM LX-6400 delivers high per-client throughput and low latency thanks to Wi‑Fi 6 features such as OFDMA, MU‑MIMO for uplink and downlink, and Target Wake Time for improved client battery life. A 160 MHz channel width option enables maximum transfer rates on compatible clients. Band steering and advanced load balancing help maintain performance in congested environments. Centralized management is available through the LANCOM Management Cloud, and the unit supports robust security standards including WPA3 and IEEE 802.1X.

Suitable for

Dense office Wi‑Fi deployments and open-plan workspaces
Lecture halls, schools and university campuses
Retail locations, shopping centres and public spaces
Event venues and stadiums with high client density
Wireless backhaul and high-throughput client aggregation

Key specifications

Dual-band operation: 2.4 GHz and 5 GHz (Wi‑Fi 6 / IEEE 802.11ax compatible)
Maximum aggregated throughput: up to 3550 Mbps
Antennas: 8 integrated antennas
MIMO: 4x4 MU‑MIMO support for uplink and downlink
Channel widths: 20 / 40 / 80 MHz (4 streams), 160 MHz (2 streams)
Ethernet: 2 × RJ-45 ports with 10/100/1000/2500 Mbps support
Power: Power over Ethernet (IEEE 802.3at) and external PSU option
Security: WPA2, WPA3, AES-CCMP/GCMP and IEEE 802.1X / EAP support
Management: LANCOM Management Cloud compatible
Colour: White

How to use

Install the access point in a location that provides clear radio coverage of the intended area, ideally mounted on a ceiling or high on a wall to optimise signal propagation. Connect one of the RJ-45 ports to the network and provide power via a compatible PoE switch or the included external power supply. Configure SSIDs, security settings and band steering via the LANCOM Management Cloud or the supported controller management option when available. Place multiple units with consideration for channel planning and site layout to achieve seamless roaming and load distribution.

Usage recommendations

For best performance in high-density deployments, enable OFDMA and MU‑MIMO, use 160 MHz channels only where interference is minimal and client devices support them, and activate band steering to direct capable devices to the 5 GHz band. Use PoE for simplified installation and central power management, and adopt enterprise authentication (IEEE 802.1X) together with WPA3 for enhanced network security.

Specifications

Antennas quantity:: 8
Ethernet LAN (RJ-45) ports:: 2
Maximum data transfer rate:: 3550 Mbit/s
Networking standards:: IEEE 802.1x, IEEE 802.3az, IEEE 802.3at, IEEE 802.11v, IEEE 802.11n, IEEE 802.11i, IEEE 802.11h, IEEE 802.11g, IEEE 802.11d, IEEE 802.11b, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a
Product colour:: White

All features

Features

Maximum data transfer rate:: 3550 Mbit/s
Channel bandwidth:: 160 MHz
Spread spectrum method:: OFDMA
Number of users:: 511 user(s)
Networking standards:: IEEE 802.1x, IEEE 802.3az, IEEE 802.3at, IEEE 802.11v, IEEE 802.11n, IEEE 802.11i, IEEE 802.11h, IEEE 802.11g, IEEE 802.11d, IEEE 802.11b, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a
Quality of Service (QoS) support:: Yes
Ethernet LAN data rates:: 2500, 1000, 100, 10
VLAN support:: Yes
2.4 GHz:: Yes
5 GHz:: Yes
MIMO:: Yes
Maximal-Ratio Combining (MRC):: Yes
Fast roaming:: Yes
Number of VLAN IDs:: 4096
Band steering:: Yes
MIMO type:: Multi User MIMO
Maximum data transfer rate (2.4 GHz):: 1150 Mbit/s
Maximum data transfer rate (5 GHz):: 2400 Mbit/s
6 GHz:: No

Operational conditions

Operating relative humidity (H-H):: 0 - 90
Operating temperature (T-T):: 0 - 40

Certificates

Certification:: CE : EN 62368-1:2014+AC:2015+A11:2017, EN 62479:2010, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 300 328 V2.2.2, EN 301 893 V2.1.1 FCC Part 15B, 15C, 15E

Antenna

Antenna type:: Internal
Antenna gain level (max):: 7 dBi
Antennas quantity:: 8

Power

Power over Ethernet (PoE):: Yes
AC input voltage:: 12

Logistics data

Country of origin:: Malaysia
Customs product code (TARIC):: 85176200

Packaging content

AC adapter included:: Yes
Cables included:: LAN (RJ-45)
Quick start guide:: Yes
Quantity per pack:: 1 pc(s)

Packaging data

Package weight:: 1860 g
Package depth:: 288 mm
Package height:: 94 mm
Package width:: 385 mm

Weight & dimensions

Height:: 42 mm
Width:: 205 mm
Depth:: 205 mm

Ports & interfaces

USB connector type:: USB Type-A
USB 2.0 ports quantity:: 1
Ethernet LAN (RJ-45) ports:: 2
DC-in jack:: Yes

Management features

Firmware upgradeable:: Yes

Design

Cable lock slot:: Yes
LED indicators:: Y
Product colour:: White
Housing material:: Synthetics
Placement:: Table
Cable lock slot type:: Kensington

Security

Security algorithms:: EAP-PEAP, EAP-GTC, EAP-FAST, AES-GCMP, AES-CCMP, EAP-TLS, WPA3, WPA2, WEP, TKIP, EAP-TTLS
