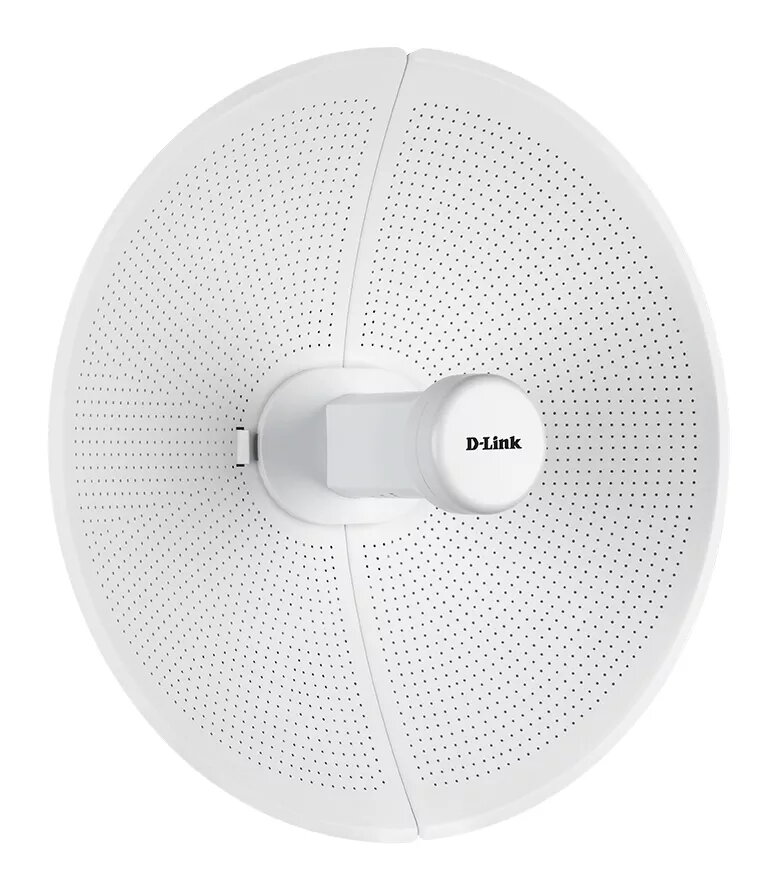

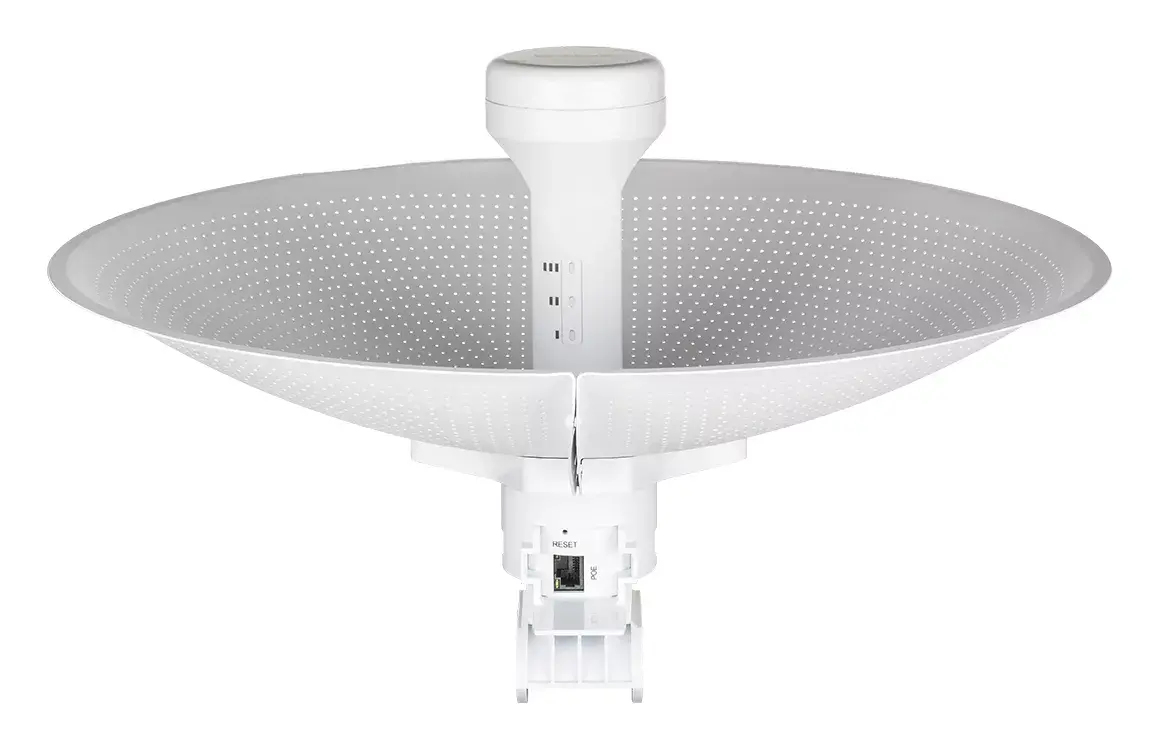

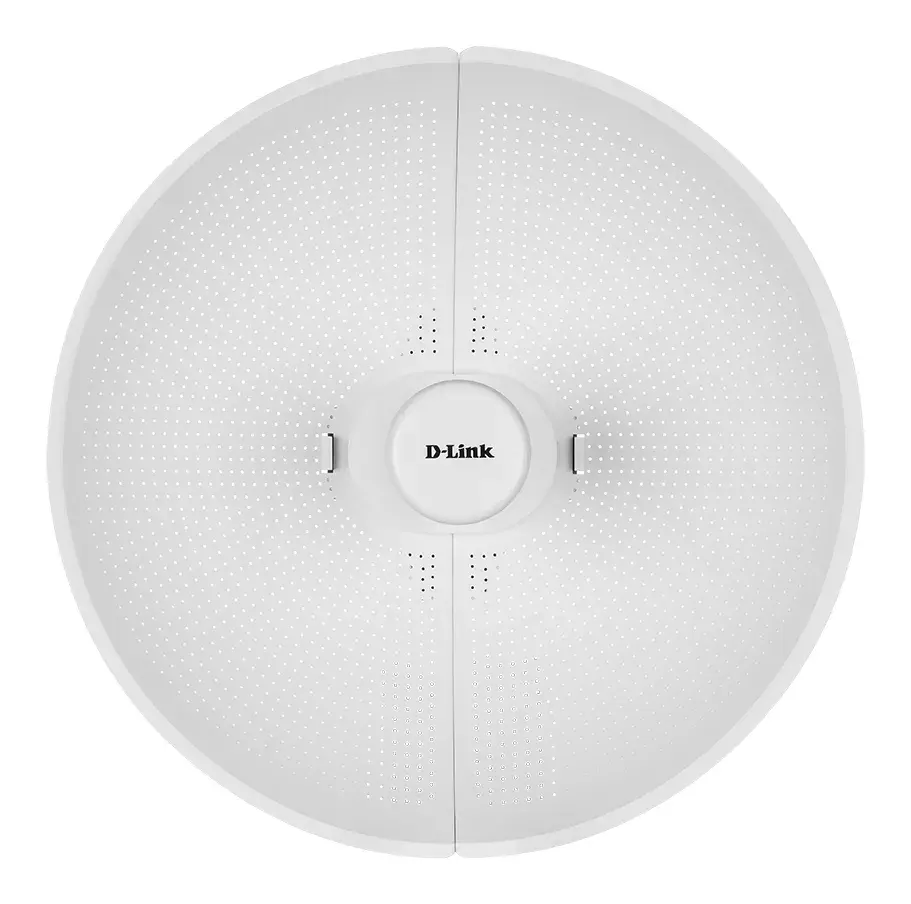

Wireless Bridge DAP-3712 5 GHz IEEE 802.11ac

Material:

Acrylonitrile Butadiene Styrene (ABS)

Ethernet LAN:

Yes

Connectivity technology:

Wired & Wireless

Wi-Fi:

Yes

Power over Ethernet (PoE) voltage:

48 V

Mounting type:

Pole

Surge protection:

Yes

Power source type:

PoE

Maximum transfer distance:

20000 m

Product type:

Network bridge

Wi-Fi band:

Single-band (5 GHz)

Ethernet LAN interface type:

Gigabit Ethernet

WLAN data transfer rate (max):

867 Mbit/s

Signal strength:

27 dBm

Antenna design:

External

Features

Cabling technology:

10/100/1000Base-T(X)

Maximum data transfer rate:

867 Mbit/s

Frequency band:

5.180 - 5.825

Networking standards:

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n

Channels quantity:

2 channels

Ethernet LAN data rates:

100, 1000

Design

LED indicators:

Signal strength

Product colour:

White

Reset button:

Yes

International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.

IP66

Antenna

Antenna gain level (max):

23 dBi

Antennas quantity:

1

Operational conditions

Operating relative humidity (H-H):

0 - 90

Storage temperature (T-T):

-40 - 85

Operating temperature (T-T):

-40 - 65

Storage relative humidity (H-H):

0 - 90

Certificates

Certification:

CE, FCC

Logistics data

Harmonized System (HS) code:

85176990

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.

15 W

Power over Ethernet (PoE):

Yes

Weight & dimensions

Weight:

0.9 kg

Height:

372 mm

Width:

372 mm

Depth:

241 mm

Packaging content

Quantity per pack:

1 pc(s)

Security

Security algorithms:

128-bit AES

MAC address filtering:

Yes

Management features

Web-based management:

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports:

1
