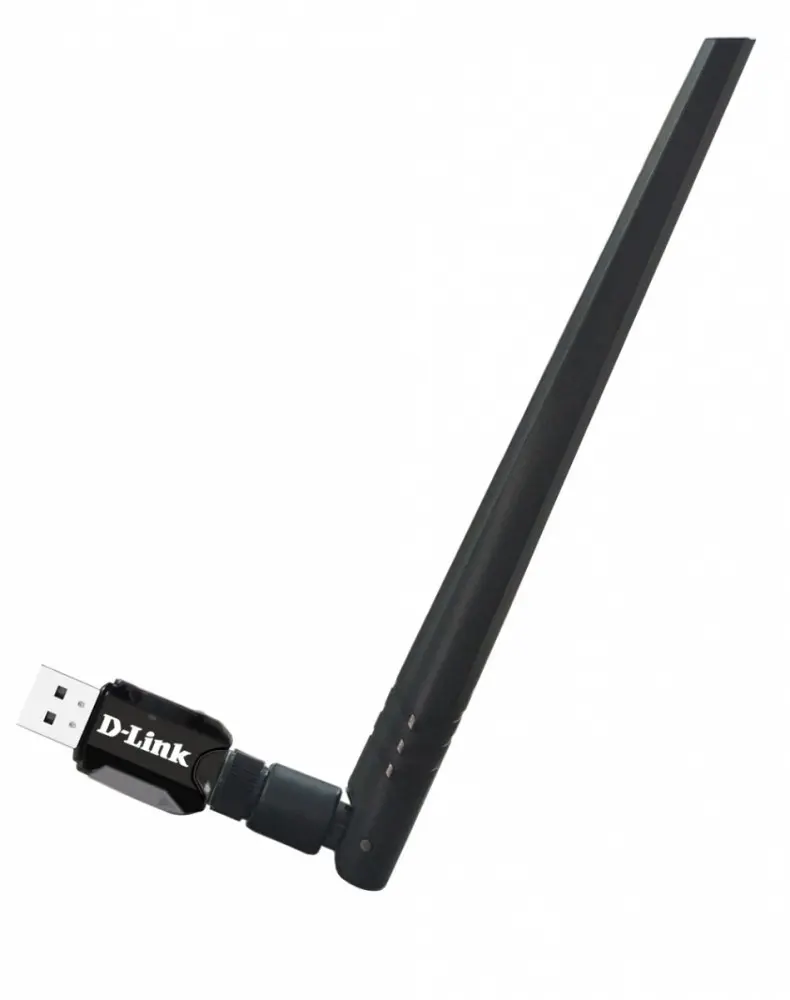

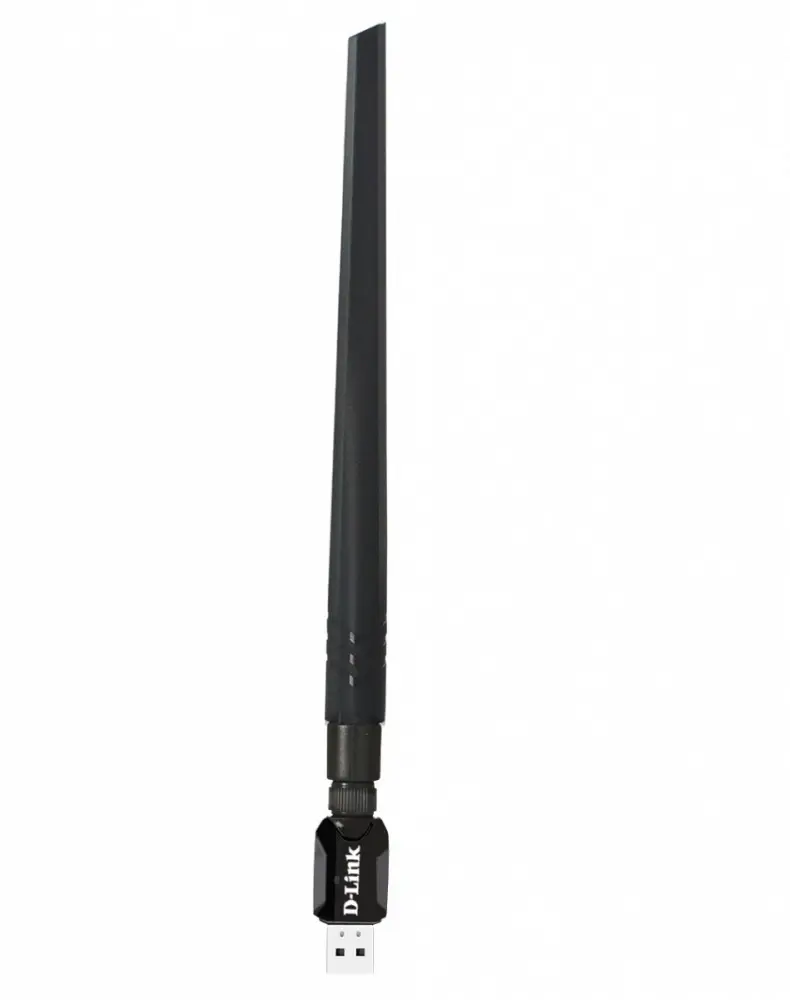

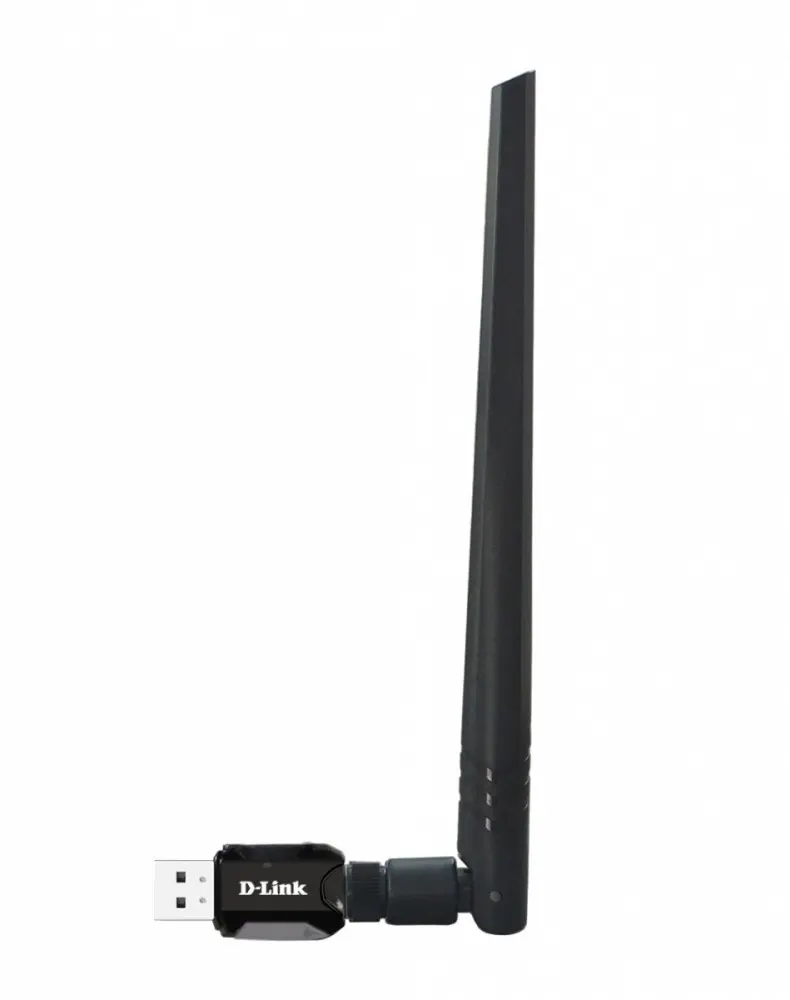

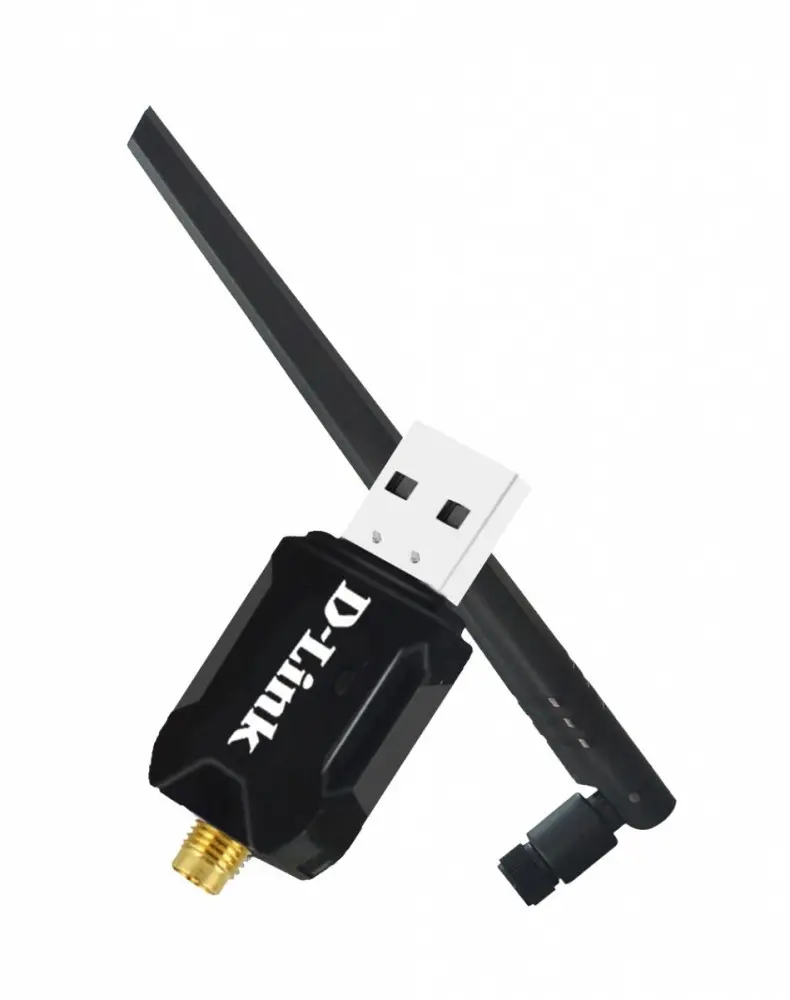

Network Card D-Link DWA-137

Ports & interfaces

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

WLAN

Host interface: Interface that enables a host controller to communicate with a driver.

USB

Internal: The product is built in.

No

USB ports quantity:

1

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 4 (802.11n), 802.11g, 802.11b

Network

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

No

Wireless LAN features

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Wi-Fi band: The frequency bands the product features.

Single-band (2.4 GHz)

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 4 (802.11n)

WLAN data transfer rates supported:

36, 48, 54, 5.5, 24, 18, 12, 11, 9, 6, 2, 1

Antenna

Gain:

5 dBi

Quality of Service (QoS) support:

Yes

Antenna:

Yes

Frequency range:

2.4 - 2.4835

Detachable antenna(s):

Yes

Performance

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

128-bit WEP, 64-bit WEP, WPA, WPA2

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Yes

Windows operating systems supported: Windows vesions wich can be used with the device.

Yes

Design

Product colour: The colour e.g. red, blue, green, black, white.

Black

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.0255 kg

Height: The measurement of the product from head to foot or from base to top.

251 mm

Width: The measurement or extent of something from side to side.

23 mm

Depth: The distance from the front to the back of something.

10.8 mm

Power

USB powered: The device can be powered via a USB connection.

Yes

Operational conditions

Operating relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 65

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Storage relative humidity (H-H):

5 - 95

Certificates

Certification:

CE, FCC, WPS Certified, Windows®8 Certified
