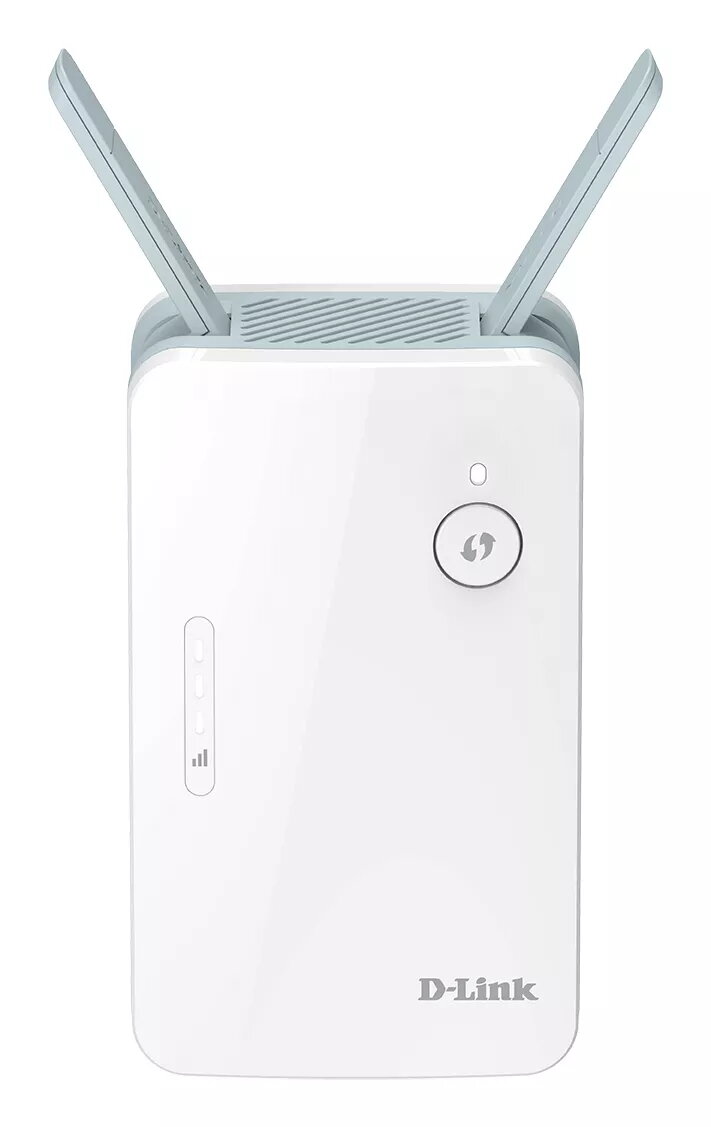

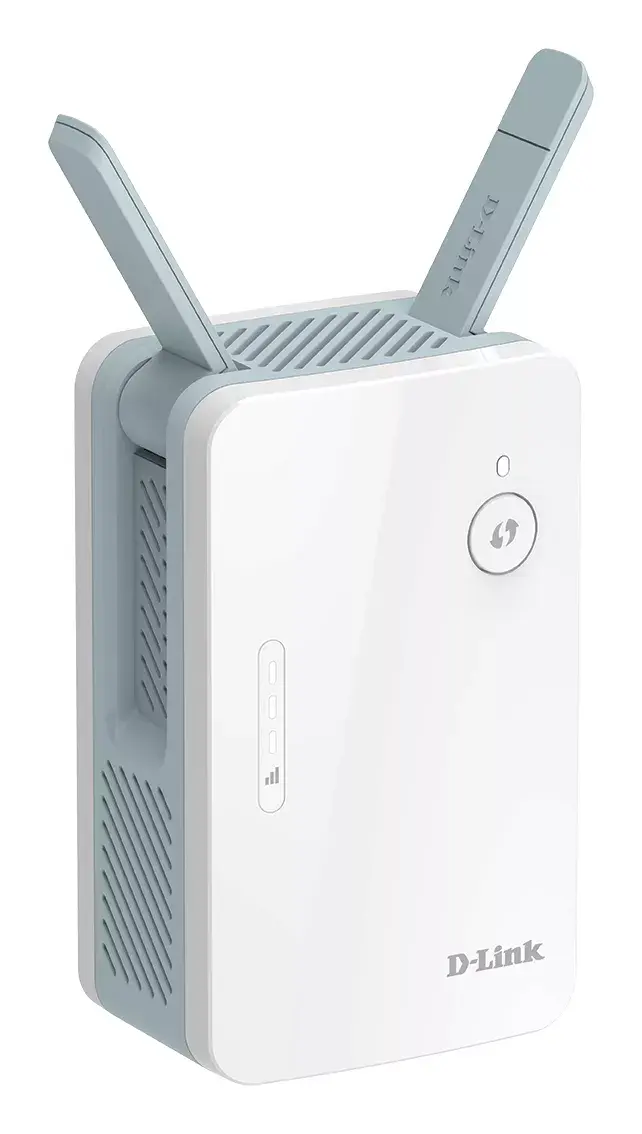

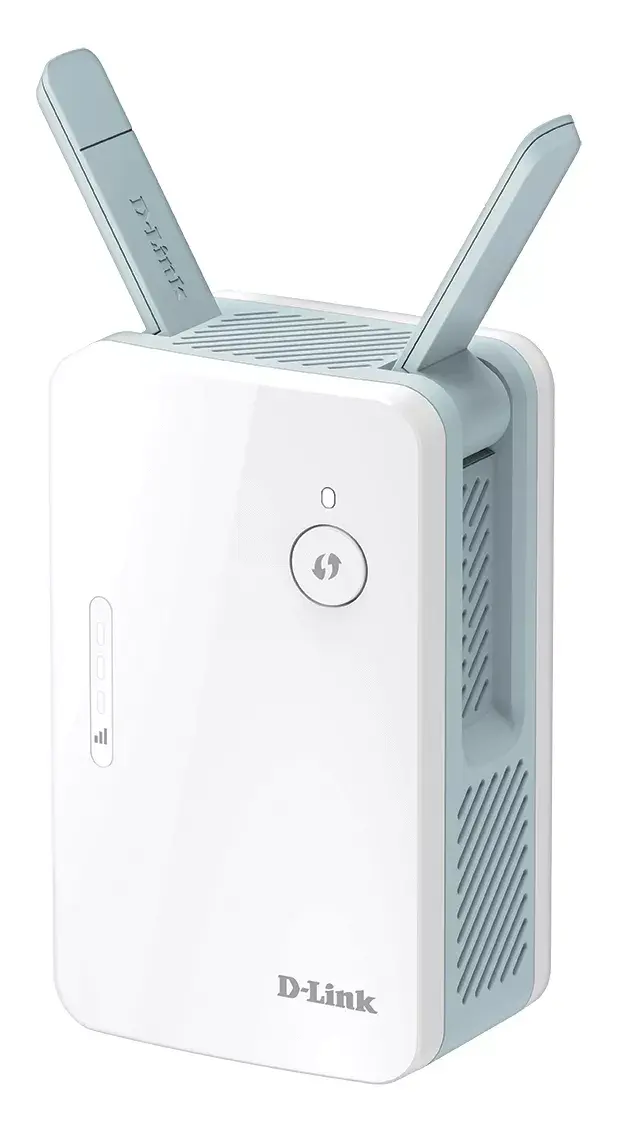

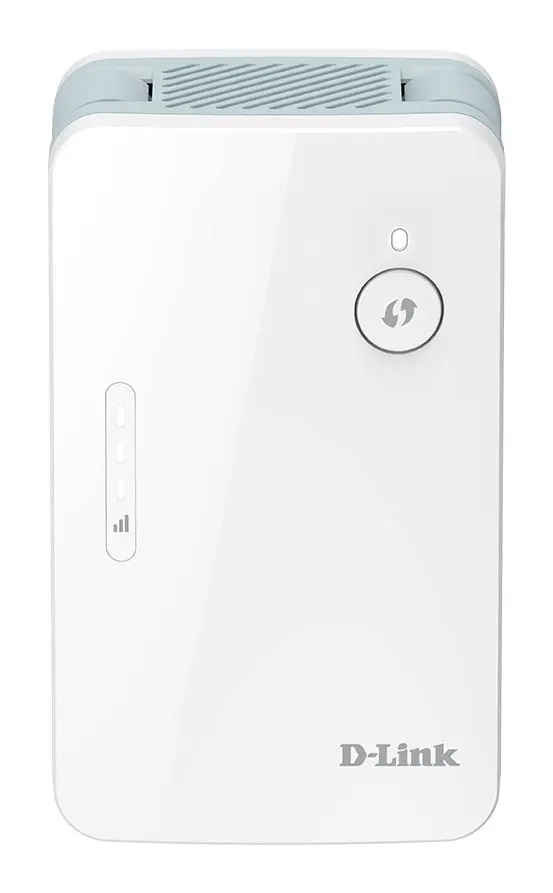

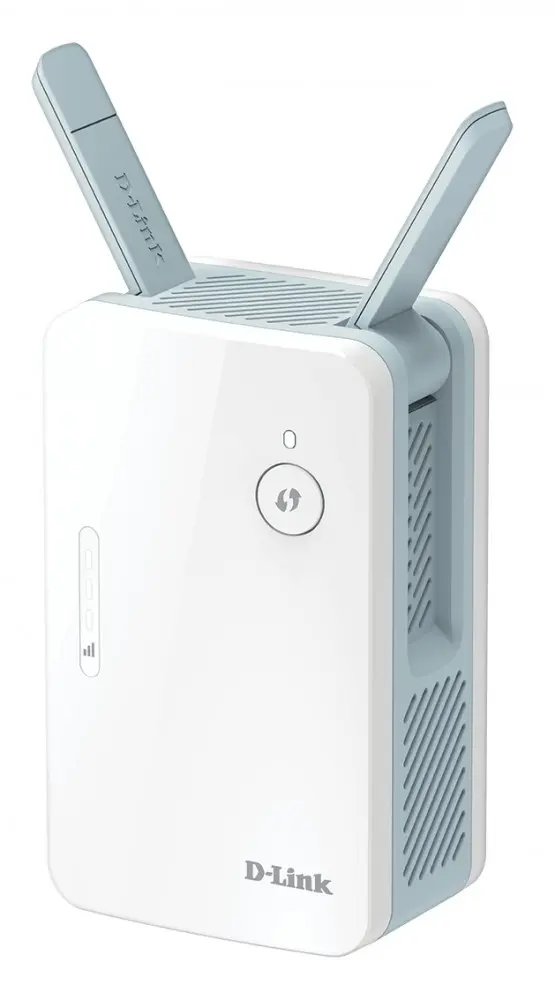

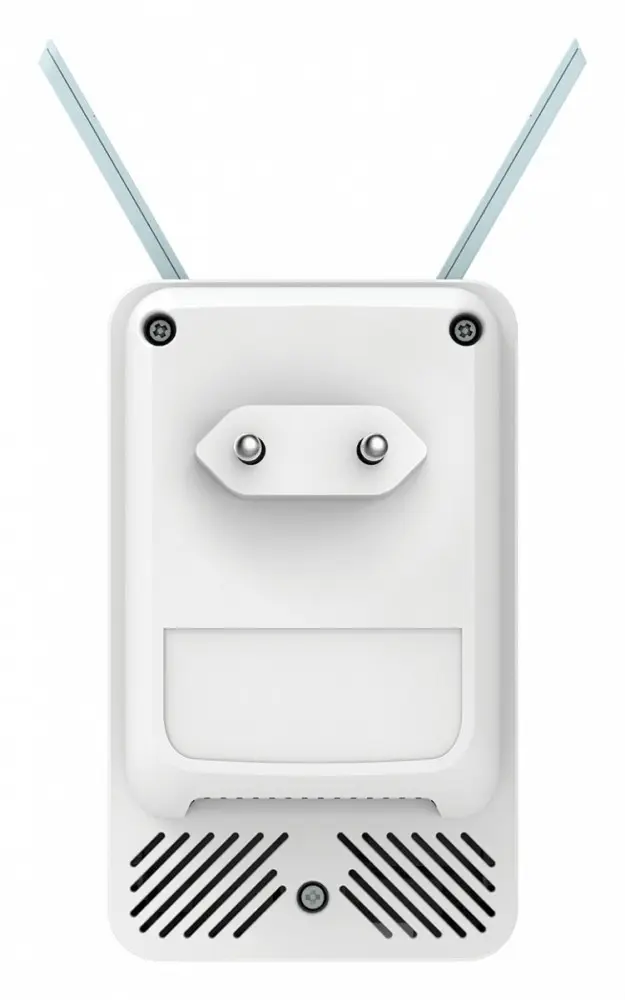

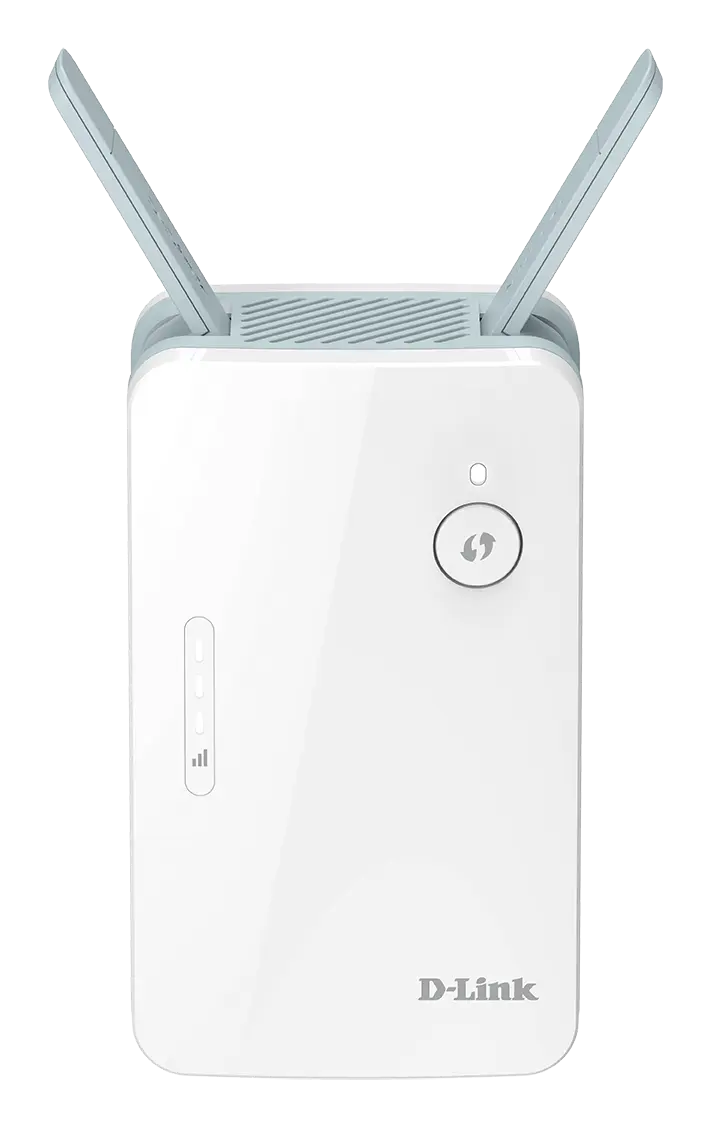

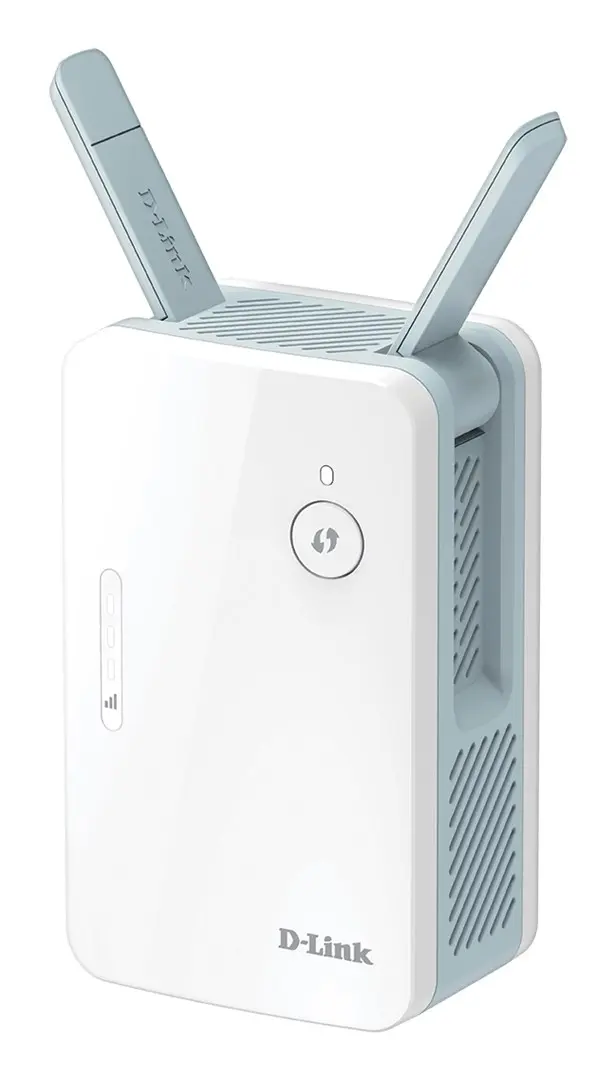

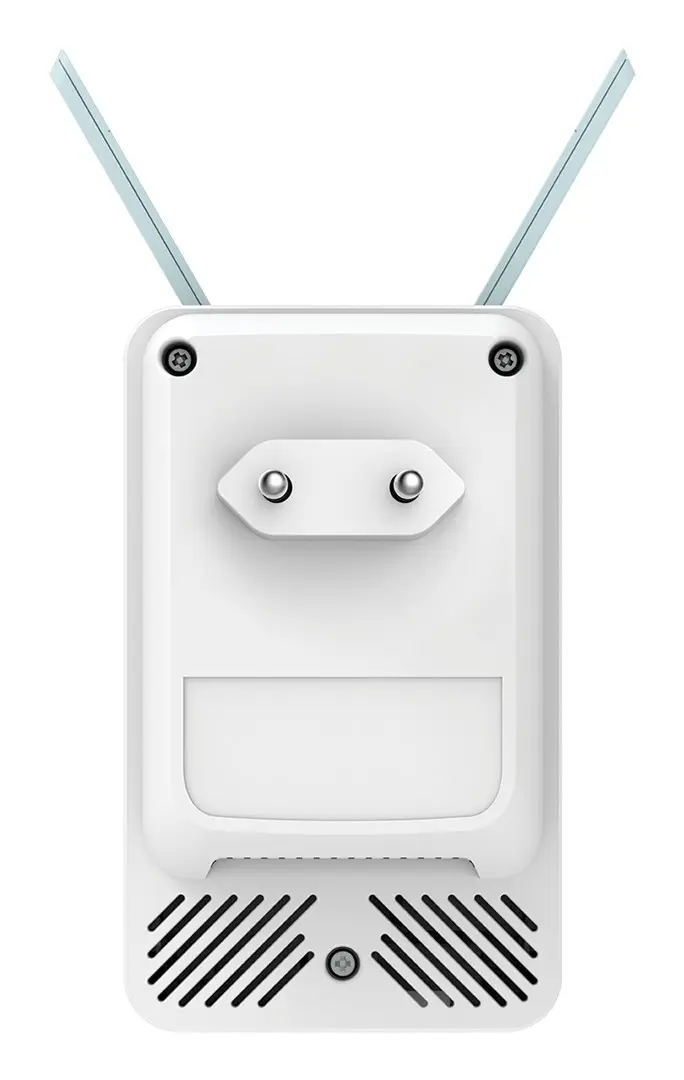

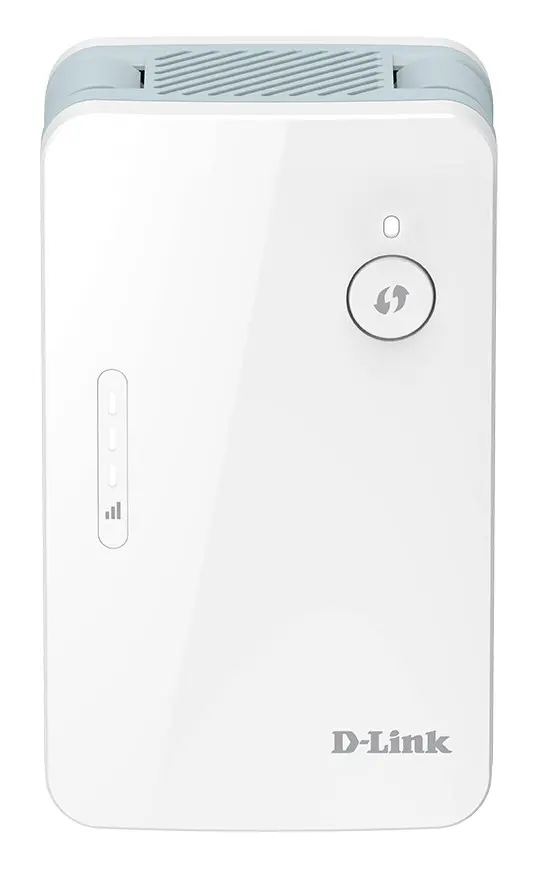

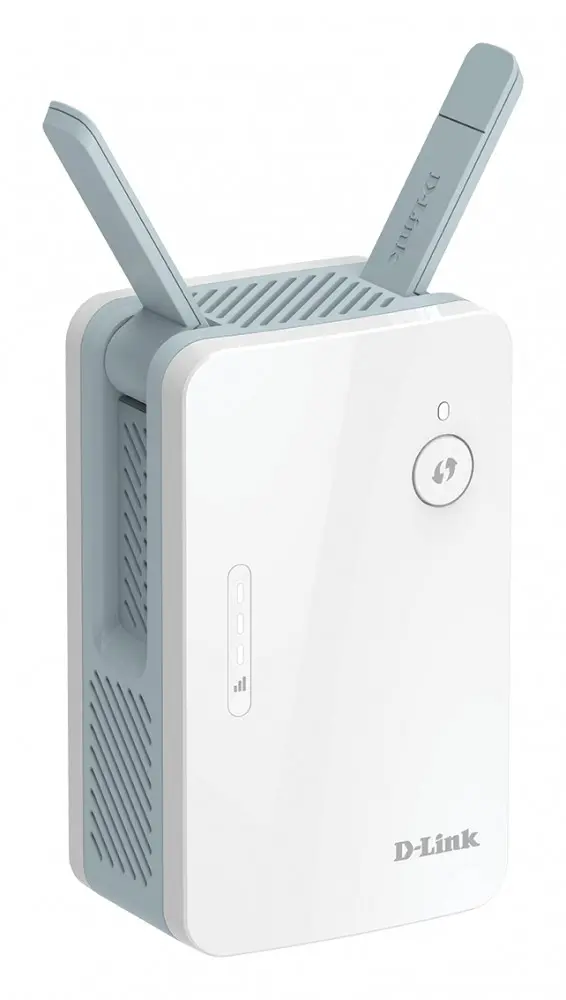

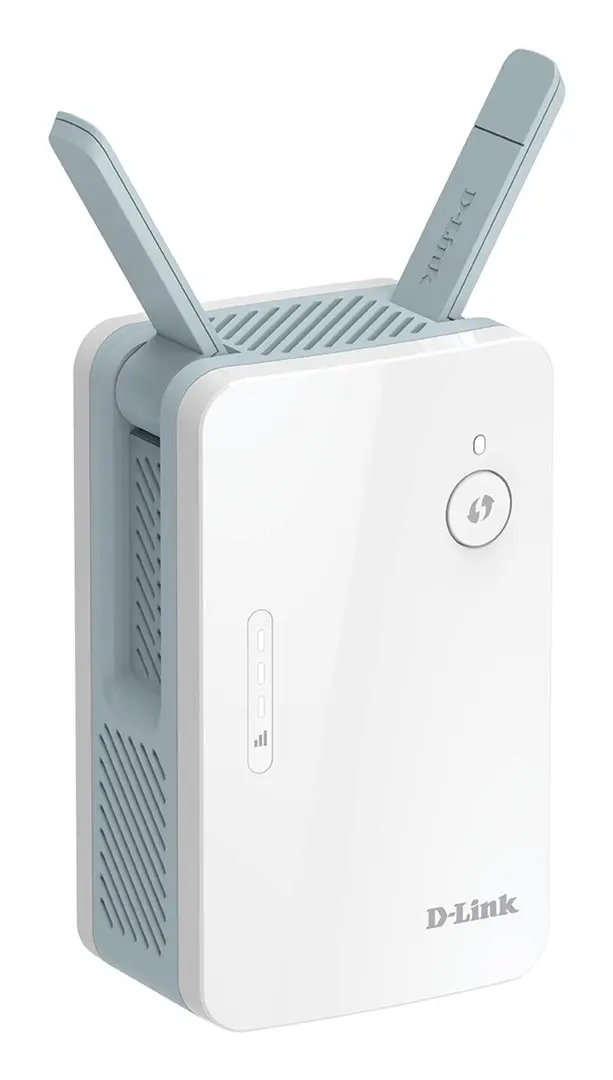

Network transmitter D-Link E15 AX1500 Wi-Fi 6

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Data transfer rate: Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.

1200 Mbit/s

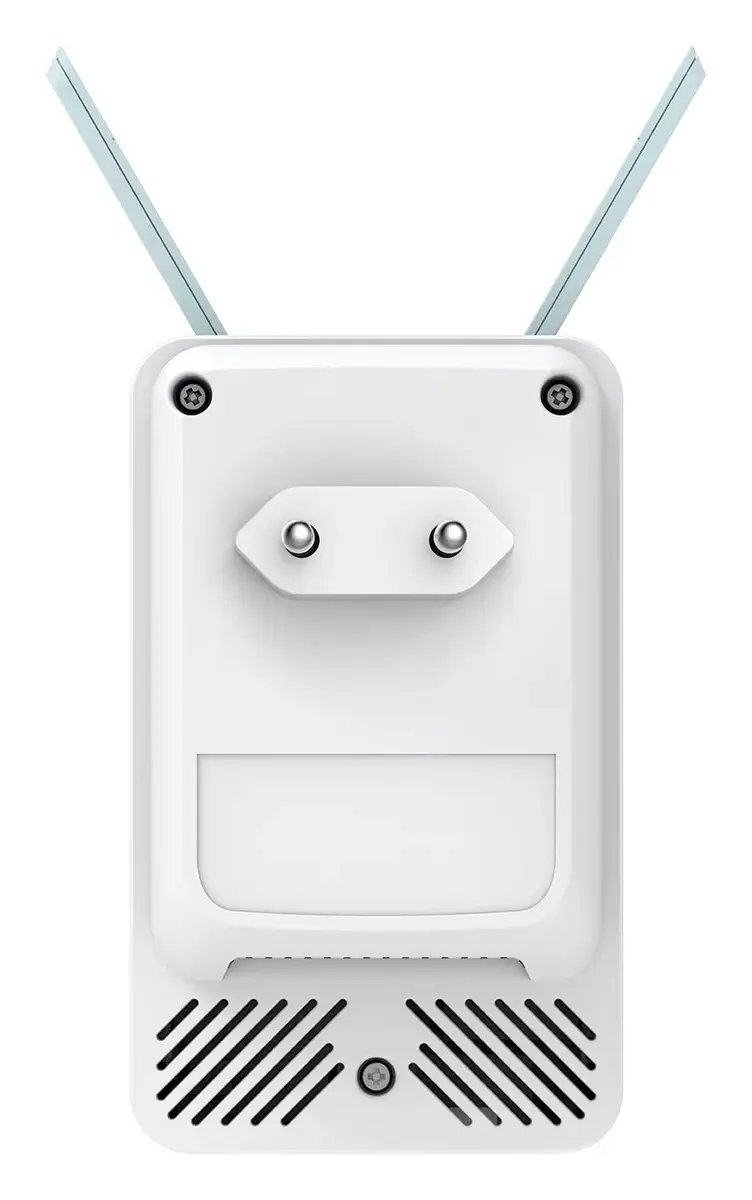

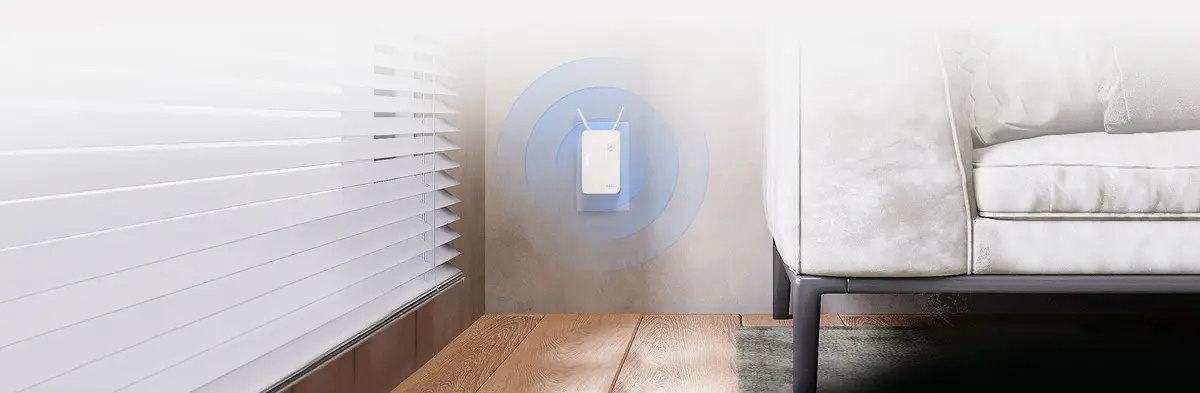

Mounting type: Type of mounting e.g. wall mounting.

Wall

Wi-Fi band: The frequency bands the product features.

Dual-band (2.4 GHz / 5 GHz)

Sustainability

Sustainability compliance:

Yes

Sustainability certificates:

CE

Operational conditions

Storage relative humidity (H-H):

5 - 95

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Operating relative humidity (H-H):

10 - 90

Other features

Type: Characteristics of the device.

Network transmitter

Packaging content

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Cables included:

LAN (RJ-45)

Quantity per pack:

1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.161 kg

Height: The measurement of the product from head to foot or from base to top.

50 mm

Depth: The distance from the front to the back of something.

63.5 mm

Width: The measurement or extent of something from side to side.

105 mm

Certificates

Certification:

FCC, IC, UL

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE

Technical details

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Performance

Mobile operating systems supported: The operating systems e.g. Android, iOS, that can be used with the mobile device.

iOS, Android

Antenna

Antennas quantity:

2

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

External

Design

LED indicators:

Y

WPS push button:

Yes

Reset button:

Yes

Product colour: The colour e.g. red, blue, green, black, white.

White

Power

Power consumption (max): The maximum amount of power used by the device.

11 W

AC input frequency:

50 - 60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Ports & interfaces

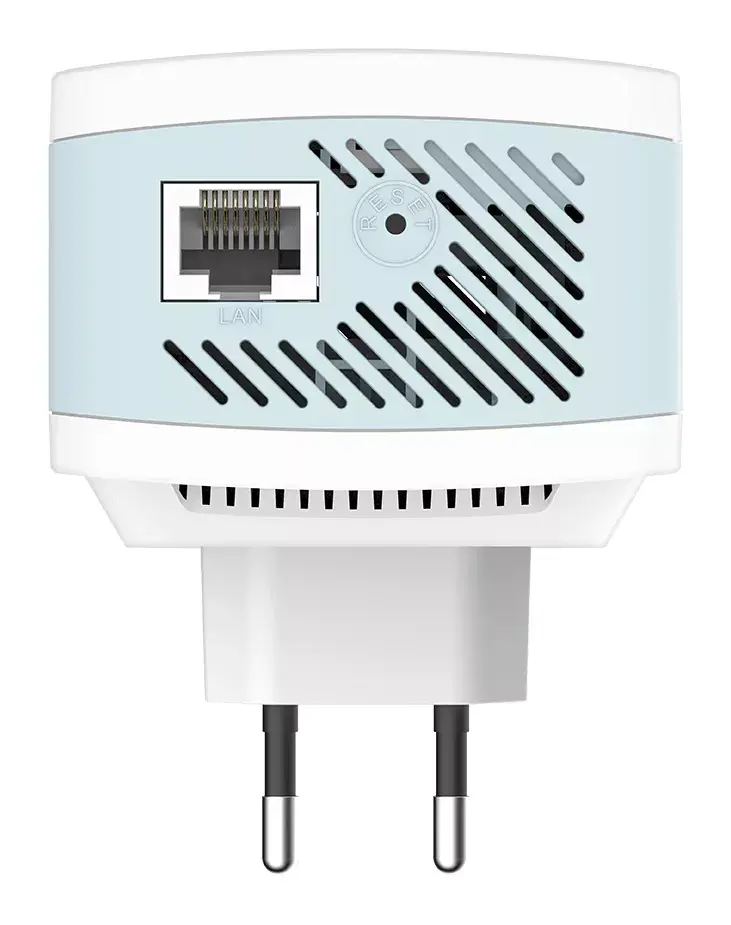

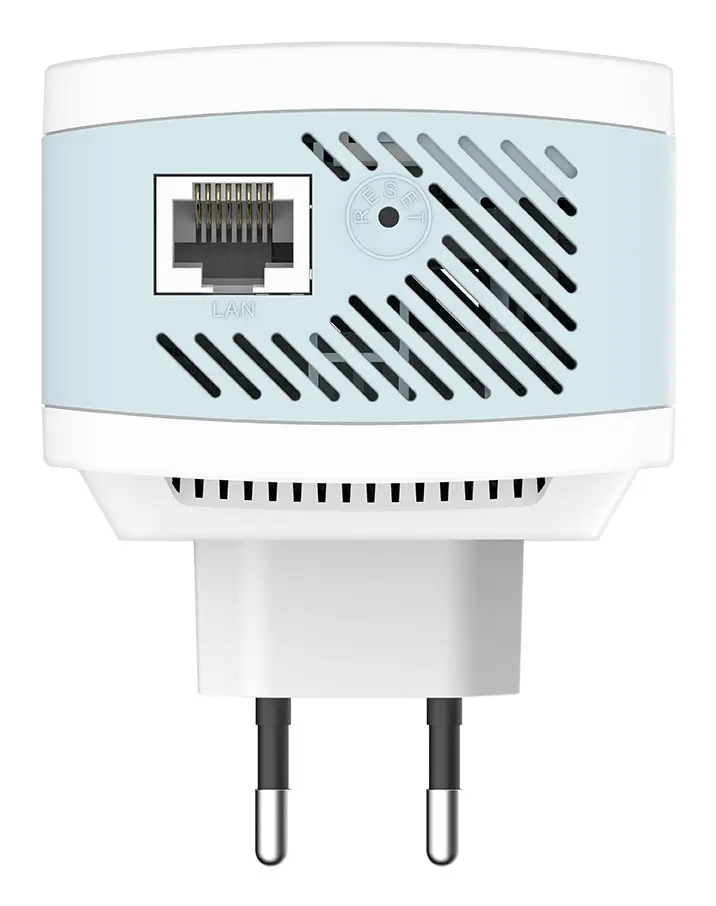

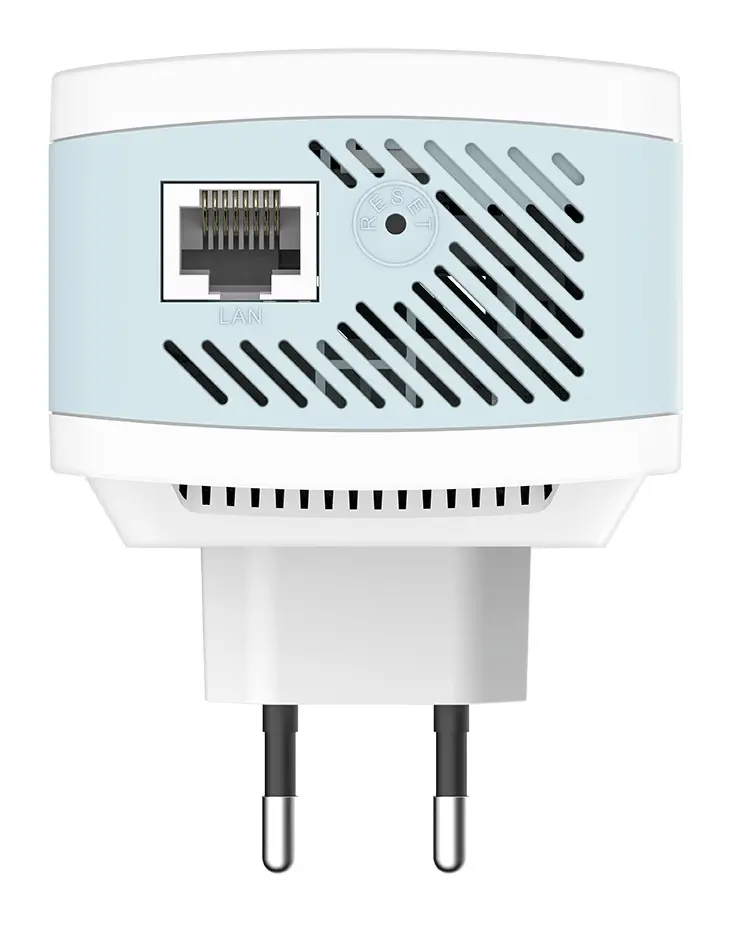

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Management features

Web-based management: Using a website/web application to manage something.

Yes

Security

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA, WPA2, WPA3, WPS

Features

Cabling technology: Type of cable technology performance.

10/100/1000Base-T(X)

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11ac, IEEE 802.11v, IEEE 802.3ab, IEEE 802.3u, IEEE 802.11n, IEEE 802.11k, IEEE 802.11h, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a, IEEE 802.11ax

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100, 1000

Wi-Fi data rate (max):

1200
