header-product Access control reader DAHUA DHI-ASR2200A-D — Basic reader, 12 V DC, 1.7 W, 135×40×15 mm, black
43.99 €

Access control reader DAHUA DHI-ASR2200A-D — Basic reader, 12 V DC, 1.7 W, 135×40×15 mm, black

Fast delivery available

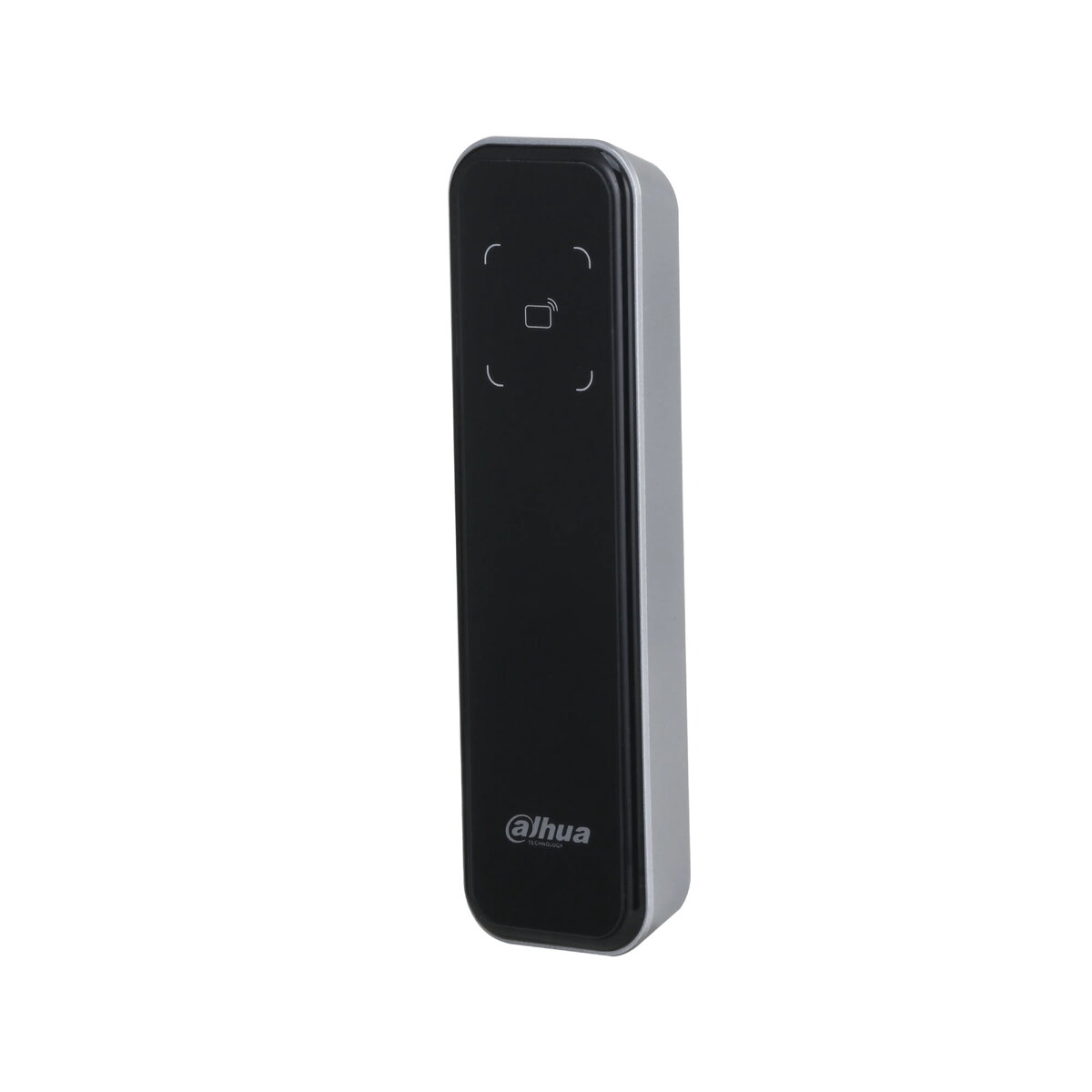

Dahua Technology DHI-ASR2200A-D access control reader DHI-ASR2200A-D Photo 1
Dahua Technology DHI-ASR2200A-D access control reader DHI-ASR2200A-D Photo 2
Dahua Technology DHI-ASR2200A-D access control reader DHI-ASR2200A-D Photo 3
Dahua Technology DHI-ASR2200A-D access control reader DHI-ASR2200A-D Photo 1
Dahua Technology DHI-ASR2200A-D access control reader DHI-ASR2200A-D Photo 2
Dahua Technology DHI-ASR2200A-D access control reader DHI-ASR2200A-D Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Access control reader DAHUA DHI-ASR2200A-D — Basic reader, 12 V DC, 1.7 W, 135×40×15 mm, black

{{email}}
You keep track of price changes

Access control reader DAHUA DHI-ASR2200A-D — Basic reader, 12 V DC, 1.7 W, 135×40×15 mm, black

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

DAHUA DHI-ASR2200A-D is a basic access control reader designed for entry and security systems. It operates from 12 V DC with typical power consumption of 1.7 W and maximum DC current of 0.5 A. The compact black housing measures 135 × 40 × 15 mm. Suitable for mounting on doors or panels to read credentials and integrate with access control installations.
Available at price 43.99 €: 1 pcs.
Total available for order: 3 pcs.
Warranty: 2 Years
SKU: 11697817
Manufacturer: DAHUA
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
15.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
20.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
20.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

DAHUA DHI-ASR2200A-D is a basic access control reader designed for integration into entry and security systems. The reader accepts contactless ID cards and transmits credential data to an access controller for verification. It is powered by 12 V DC with typical power consumption of 1.7 W and a maximum DC current of 0.5 A. The compact black housing measures 135 × 40 × 15 mm and combines a PC body with a tempered glass panel and IP66 protection, allowing installation in both indoor and outdoor locations.

Advantages

The DHI-ASR2200A-D offers simple installation and a slim profile suited for mounting on doors or panels. It supports both Wiegand and RS485 communication, enabling compatibility with a wide range of access controllers. Built-in indicator and buzzer prompts provide clear user feedback, while anti-tampering alarm and watchdog functionality improve reliability by detecting abnormal operation and initiating recovery. All connection ports include overcurrent and overvoltage protection for enhanced durability.

Suitable for

  • Office buildings and corporate reception points
  • Schools, universities and educational facilities
  • Residential complexes and gated communities
  • Industrial sites, factories and warehouses
  • Government properties, stadiums and public venues

Key specifications

  • Power supply: 12 V DC
  • Typical power consumption: 1.7 W
  • Maximum DC current: 0.5 A
  • Dimensions: 135 × 40 × 15 mm
  • Housing color and materials: black PC body with tempered glass panel
  • Ingress protection: IP66 (suitable for indoor and outdoor use)
  • Credential type: contactless ID card support
  • Communication interfaces: Wiegand and RS485
  • User feedback: buzzer and indicator prompts
  • Security features: anti-tampering alarm, built-in watchdog
  • Port protection: overcurrent and overvoltage protection on connection ports

How to use

Mount the reader on a suitable surface near the controlled entry point using the appropriate screws or mounting accessories, ensuring the unit is positioned for easy card presentation. Connect the reader to the access controller using the Wiegand or RS485 interface according to the controller's wiring diagram, and supply 12 V DC power. Configure the controller to recognize the reader and enroll ID cards in the controller database. Test card reads to verify communication, buzzer and indicator responses, and anti-tamper signalling before putting the device into regular operation.

Usage recommendations

For reliable long-term performance, install the reader in a location protected from direct physical impact and extreme debris accumulation. Use the specified 12 V DC power source with appropriate surge protection. Regularly inspect the reader housing and connectors for signs of wear or damage, and follow the access controller manufacturer's guidelines for card enrollment and system-level security settings.

All features
Type:
Basic access control reader
Power consumption (typical): Power consumption in switched-on state expressed in W.
1.7 W
Operating relative humidity (H-H):
5 - 95
Package weight:
160 g
Operating temperature (T-T):
-30 - 70
Height:
15 mm
Width:
135 mm
Depth:
40 mm
Product colour:
Black
Buzzer:
Yes
Fingerprint reader:
No
Package depth:
400 mm
Package height:
230 mm
Package width:
415 mm
Housing material:
Polycarbonate (PC), Tempered glass
Active tampering alarm:
Yes
Waterproof:
Yes
RS-485 ports:
1
DC voltage range:
12
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP66
Recommended usage:
Indoor / Outdoor
Built-in display:
No
Access chip/card reader:
Yes
Access chip/card reader type:
Contactless
Authentication type:
Access chip/card
Contacting working distance:
0 mm
Contactless working distance:
50 mm
Watch Dog function:
Yes
Front camera:
No
Unlock function:
Yes
Verification (1:1) time:
0.1 s
DC current (max):
0.5 A
Wiegand interface:
Yes
Tamper protection:
Yes
Sustainability compliance:
Yes
Compliance certificates:
Federal Communications Commission (FCC), CE
