DAHUA EAP6230-C Wireless Access Point

Name: Wireless Access Point DAHUA EAP6230-C EAP6230-C
Brand: DAHUA
SKU: 12400080
Price: 141.49 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Wireless Access Point DAHUA EAP6230-C — Dual‑Band Wi‑Fi 6 (2.4/5 GHz), 3000 Mbps, PoE, Gigabit Ethernet, WPA3

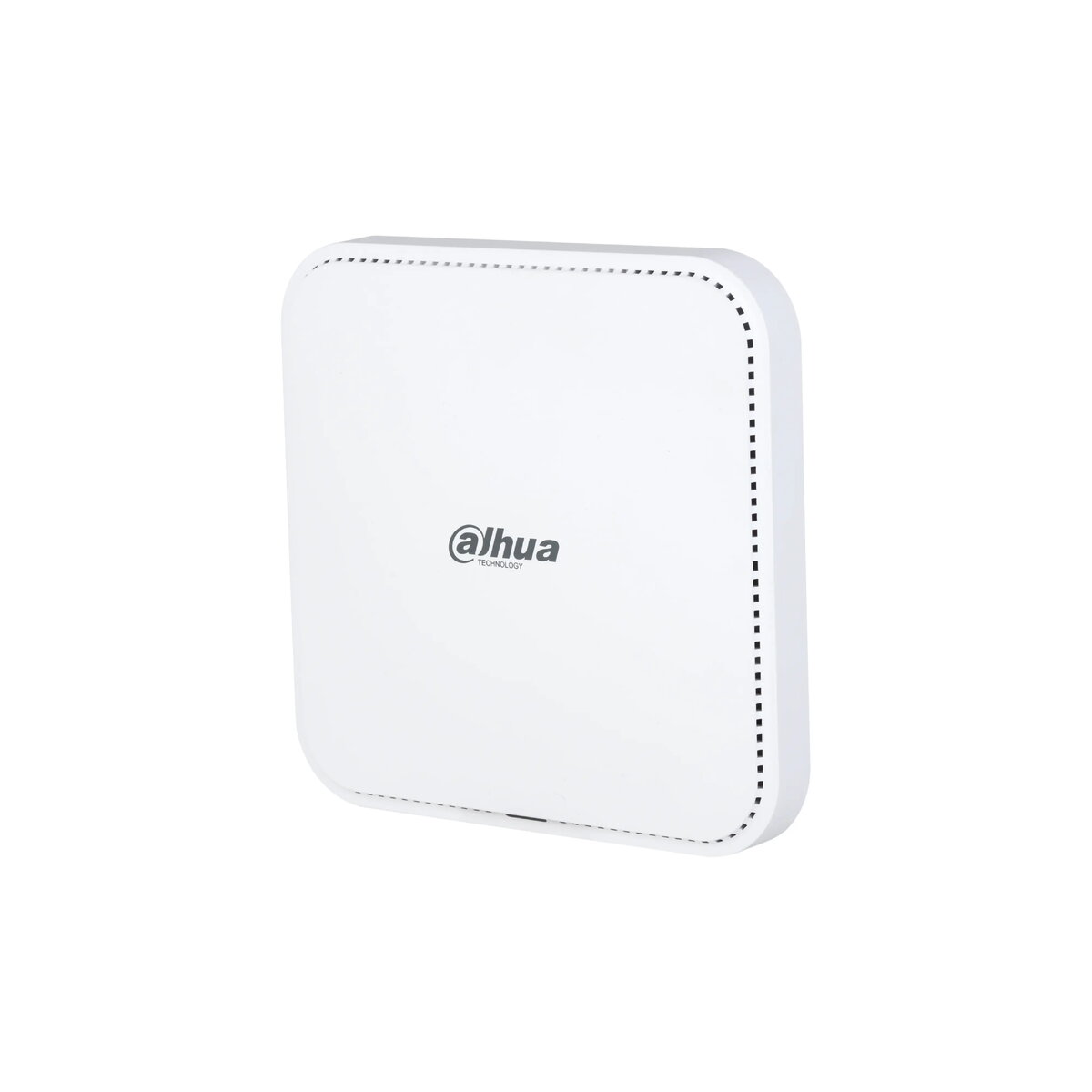

DAHUA EAP6230-C Wireless Access Point Photo 1

DAHUA EAP6230-C Wireless Access Point Photo 2

DAHUA EAP6230-C Wireless Access Point Photo 3

Short description

DAHUA EAP6230-C is a dual‑band wireless access point operating on 2.4 GHz and 5 GHz with Wi‑Fi 6 performance and a combined maximum data rate of 3000 Mbps. It supports WPA‑PSK/WPA2‑PSK/WPA3‑PSK security, Gigabit Ethernet (10/100/1000 Mbps) and Power over Ethernet (PoE). Designed for business and high‑density wireless deployments, it provides secure, high‑speed indoor Wi‑Fi coverage and easy integration into existing networks.

Warranty: 2 Years

SKU: 12400080

Manufacturer: DAHUA

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

DAHUA EAP6230-C is a dual‑band indoor wireless access point that supports Wi‑Fi 6 (802.11ax) and delivers a combined maximum data rate of up to 3000 Mbps. It provides dual concurrent wireless networks on 2.4 GHz and 5 GHz, Gigabit Ethernet connectivity and Power over Ethernet (PoE) for simplified installation. The unit includes an internal high‑gain antenna and is intended for business and high‑density indoor Wi‑Fi coverage where multiple devices connect simultaneously.

Advantages

The access point uses MU‑MIMO and OFDMA technologies to improve capacity and handle many concurrent users with reduced latency. It supports seamless roaming between access points, WPA‑PSK/WPA2‑PSK/WPA3‑PSK security standards and Gigabit Ethernet for reliable wired backhaul. PoE support allows flexible placement without a nearby power outlet.

Suitable for

Office environments and meeting rooms
Retail stores and small shopping areas
Schools, classrooms and training facilities
High‑density indoor public spaces such as lobbies or waiting areas

When it may not be suitable

This access point is designed for indoor deployments and is not rated for outdoor or exposed installations. It may be unnecessary for very small home networks where advanced multi‑user features and enterprise security are not required.

Key specifications

Wireless standard: IEEE 802.11ax (backward compatible with 802.11a/b/g/n/ac)
Dual‑band operation: 2.4 GHz and 5 GHz
Data rates: 2.4 GHz up to 574 Mbps; 5 GHz up to 2402 Mbps; combined up to 3000 Mbps
Wireless technologies: MU‑MIMO, OFDMA
Security: WPA‑PSK, WPA2‑PSK, WPA3‑PSK
Wired interface: Gigabit Ethernet (10/100/1000 Mbps)
Power: Power over Ethernet (PoE) support
Antennas: 1 internal high‑gain antenna

How to use

Mount the access point in a central indoor location and connect it to your network switch or router using a Gigabit Ethernet cable. If available, supply power via PoE from a compatible PoE switch or injector. Configure wireless settings, SSIDs and security (WPA3 recommended where supported) through the DAHUA management interface or compatible network controller, and place additional EAP units to provide seamless roaming coverage across the site.

What to consider before purchase

Intended deployment: indoor use only
Existing network infrastructure: PoE switch or injector required for PoE power
Required coverage area and device density to determine number of access points
Compatibility with network management or controller software you plan to use

Usage recommendations

For best performance, position the EAP6230‑C away from large metal objects and other RF sources, use WPA3 where client devices support it, and plan AP placement to ensure overlapping coverage for seamless roaming in high‑density areas.

Specifications

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.: Internal
Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes
USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 0
Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 1
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 3000 Mbit/s
5 GHz:: Yes
6 GHz:: No
2.4 GHz:: Yes
Product colour: The colour e.g. red, blue, green, black, white.: White
Placement: Where the product can be placed e.g. floor, wall.: Ceiling
Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.: WPA3-PSK, WPA-PSK, WPA2-PSK

All features

Sustainability

Sustainability compliance:: Yes

Operational conditions

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -20 - 45
Operating relative humidity (H-H):: 5 - 95

Packaging content

Bundled software: Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.: Independent A Configure VLAN based on SSID Auto channel Power adjustment 5G Precedence SSID extender WiFi Timer Pass through on VPN connection Configure information restore/back up
Quantity per pack:: 1 pc(s)

Packaging data

Package weight: Weight of the packaged product.: 890 g
Package height: The distance from the top to the bottom of the packaging.: 76 mm
Package depth: The distance from the front to the back of the packaging.: 243 mm
Package width: The distance from one side of the packaging to the other.: 235 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.55 kg
Height: The measurement of the product from head to foot or from base to top.: 37 mm
Depth: The distance from the front to the back of something.: 188 mm
Width: The measurement or extent of something from side to side.: 188 mm

Certificates

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: RoHS, CE, Federal Communications Commission (FCC)

Performance

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.: 128 MB
Flash memory:: 8 MB

Antenna

Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.: 5 dBi
Antennas quantity:: 1
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.: Internal

Design

LED indicators:: Y
Reset button:: Yes
Product colour: The colour e.g. red, blue, green, black, white.: White
Placement: Where the product can be placed e.g. floor, wall.: Ceiling

Power

Power consumption (max): The maximum amount of power used by the device.: 15 W
Input current:: 1
DC voltage range:: 12
Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.: Yes
WAN connection: A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations.: Ethernet (RJ-45)
USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 0
Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 1

Management features

Firmware upgradeable:: Yes
Syslog:: Yes
Web-based management: Using a website/web application to manage something.: Yes

Protocols

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.: UDP;IPv4;IP Filter;DNS;HTTP;PPPoE;NTP;DHCP;Qos;T CP/IP;DDNS;UPnP;ICMP

Security

Service Set Identifier (SSID) features:: Hidden SSID
IP address filtering:: Yes
MAC address filtering: Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.: Yes
Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.: WPA3-PSK, WPA-PSK, WPA2-PSK

Features

Transmitting power (CE):: 25
Maximum indoor range: The maximum distance to which the signals are transmitted, when the device is used indoors.: 15 m
Quality of Service (QoS) support:: Yes
Dynamic Frequency Selection (DFS):: Yes
Operating modes:: FIT AP, FAT AP
Spread spectrum method:: OFDMA
MIMO type:: Multi User MIMO
MIMO:: Yes
Channel bandwidth:: 160 MHz
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3af, IEEE 802.11b, IEEE 802.11g
Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.: 2.4 - 5.85
Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.: 1000, 100, 10
Maximum data transfer rate (5 GHz):: 2402 Mbit/s
Maximum data transfer rate (2.4 GHz):: 574 Mbit/s
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 3000 Mbit/s
5 GHz:: Yes
6 GHz:: No
2.4 GHz:: Yes

Hide Show all

Instructions

mmo_116438495_1698740996_7694_20179.pdf

dahua-EAP6230-C-12400080.pdf

Description

Instructions

mmo_116438495_1698740996_7694_20179.pdf

dahua-EAP6230-C-12400080.pdf

Machine translation.

Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}
