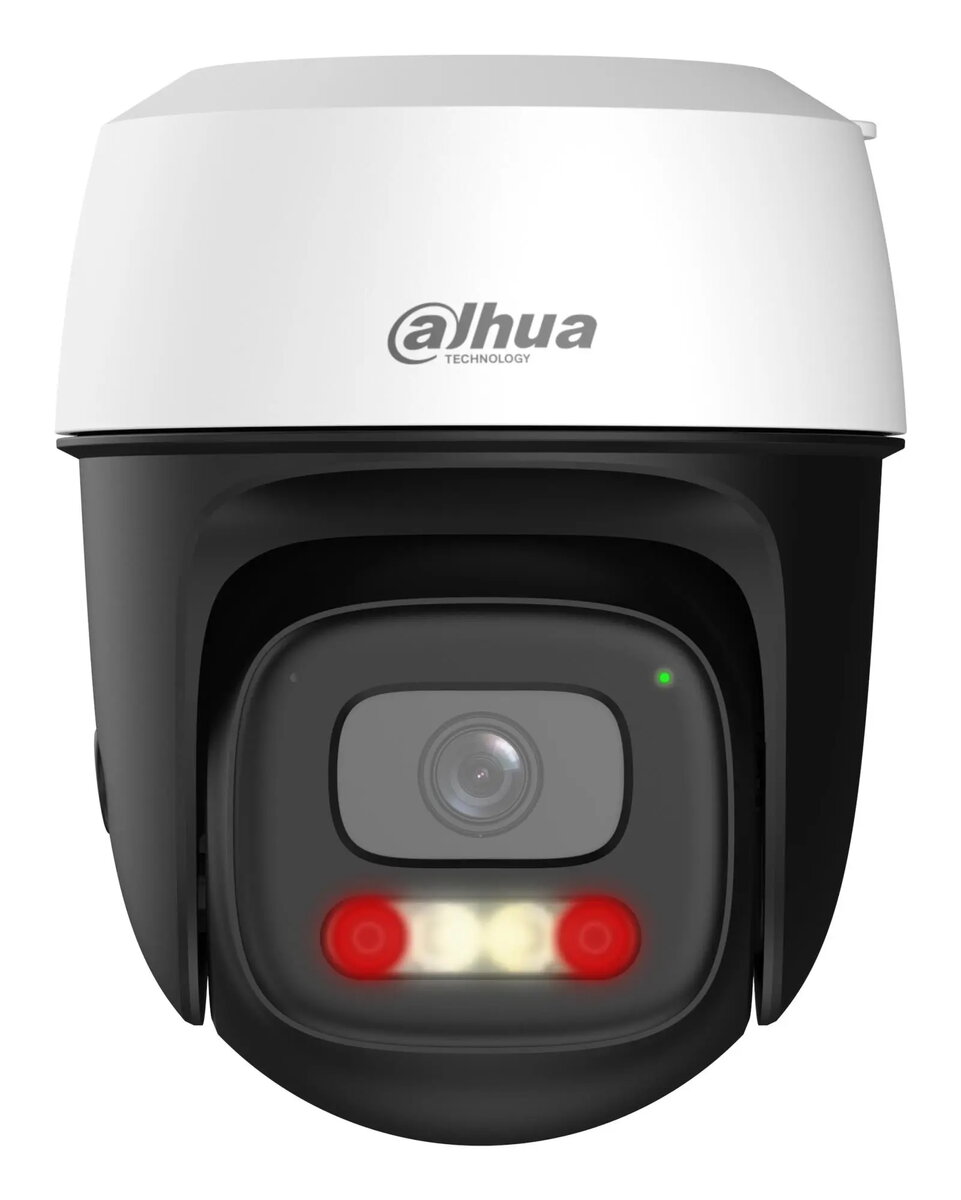

Dahua 5MP PT Dome Wi‑Fi Camera P5I-PV — 5 MP, 350° pan, IP66, night vision 30 m, WDR, built-in mic, Wi‑Fi/Ethernet

Dahua P5I-PV is a 5 MP pan‑tilt dome network camera designed for indoor and outdoor video surveillance. It combines a 1/3.2" CMOS sensor with fixed‑focus optics, a 0–350° pan range and built‑in white light to provide colour imaging in low light. The camera supports Wide Dynamic Range (WDR), day/night operation and offers wired and wireless connectivity plus an integrated microphone and SD card slot. Its IP66 weatherproof housing and DC power input suit perimeter monitoring, entrances, parking areas and general site surveillance.

Advantages

The camera provides 5 MP resolution with up to 15 fps and WDR for improved detail in high‑contrast scenes. A wide 0–350° pan range allows extensive horizontal coverage without multiple devices. Built‑in white light and night vision up to 30 m enable colour video after dusk, while an integrated microphone and local SD storage add basic audio recording and on‑device retention. Support for Wi‑Fi, Ethernet and Bluetooth gives flexible installation and connectivity options, and the IP66 rating ensures reliable outdoor operation.

Suitable for

• Perimeter and boundary monitoring
• Building entrances and gates
• Parking lots and small outdoor car parks
• General site surveillance for commercial or residential properties

When it may not be suitable

This camera uses fixed‑focus optics, so it is not intended for applications requiring variable zoom or highly detailed identification at long distances beyond the specified night‑vision range. The frame rate is up to 15 fps at full resolution, which may be insufficient for applications that require very smooth, high‑frame‑rate video of fast motion.

Key specifications

• Image sensor: 1/3.2" CMOS
• Resolution: 5 MP (total megapixels)
• Frame rate: up to 15 fps
• Optics: fixed focus, single lens
• Pan range: 0–350°
• Day/night: day/night mode with built‑in white light
• Night vision range: up to 30 m (colour with built‑in light)
• Wide Dynamic Range (WDR): yes
• Audio: built‑in microphone
• Connectivity: Wi‑Fi, Ethernet (LAN), Bluetooth
• Local storage: integrated SD card slot
• Ingress protection: IP66 (weatherproof)
• Power: DC power input
• Mounting: dome — ceiling, wall or desk
• Weight: 336 g

How to use

Install the dome on a suitable ceiling, wall or flat surface using the manufacturer’s mounting hardware and ensure the camera is aimed to cover the required area. Connect power via the DC input and choose wired Ethernet or Wi‑Fi for network access; Bluetooth can assist initial setup if supported by the companion app. Insert a compatible SD card for on‑device recording if local storage is needed, and configure recording schedules, motion detection zones and WDR or night‑light settings through the camera’s web interface or the vendor application.

What to consider before purchase

• Fixed focus lens — no optical zoom; verify required field of view and identification distance
• Maximum 15 fps at full resolution — consider if higher frame rates are necessary
• DC power requirement — confirm power source and cabling for installation
• Outdoor placement — ensure suitable mounting location and protection for cabling

Usage recommendations

For best results, mount the camera at a height and angle that maximises coverage of the target area while keeping key details within the effective night‑vision distance (up to 30 m). Use WDR in scenes with mixed bright and dark areas and enable local recording to the SD card as a backup in case of temporary network loss.
