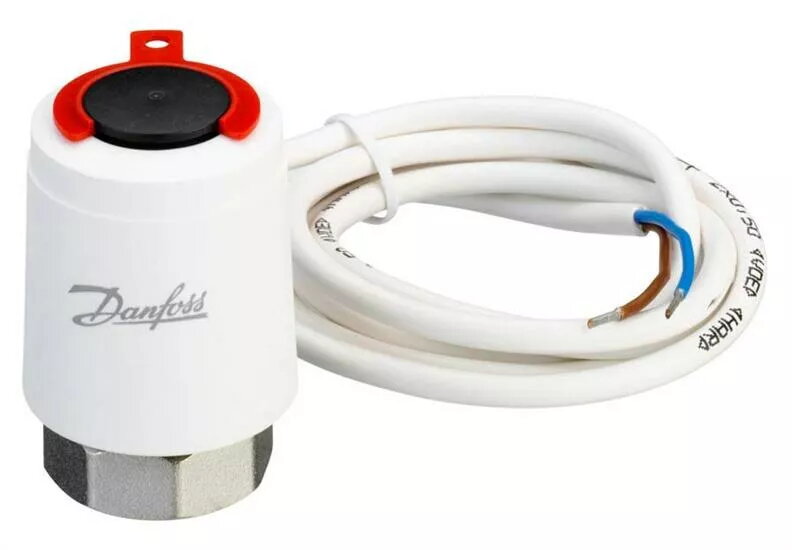

Actuator DANFOSS TWA-K/NC 088H3142 – spring return thermal actuator for valves

The DANFOSS TWA-K/NC 088H3142 is a spring-return thermal actuator designed to control heating and cooling valves in HVAC systems. The actuator uses a thermal element to move the valve spindle and integrates a mechanical spring to return the valve to the normally closed position if power or thermal input is removed. The compact design enables direct mounting on compatible valve bodies for automatic regulation of radiator or zone valves and supports straightforward installation and maintenance.

Advantages

The actuator offers reliable automatic valve operation with a built‑in fail‑safe spring return to closed position, ensuring system protection in case of power or control signal loss. Its thermal operation provides smooth, proportional movement without the need for complex electronics, and the compact housing simplifies mounting on standard valve bodies. Designed for long service life, the unit minimizes maintenance requirements while delivering consistent performance across typical heating and cooling applications.

Suitable for

• Automatic control of radiator valves
• Zone valve regulation in HVAC distribution systems
• Fail‑safe shutoff applications requiring normally closed operation
• Retrofit projects with compatible valve bodies

Key specifications

• Operation principle: thermal-driven actuator with mechanical spring return
• Fail-safe position: normally closed (NC)
• Mounting: direct attachment to compatible valve bodies
• Control type: automatic thermal control (no separate electronic drive required)
• Typical applications: heating and cooling valve regulation for radiators and zones
• Construction: compact housing designed for HVAC environments

How to use

Mount the actuator directly onto a compatible valve body following the valve manufacturer's instructions and ensure correct alignment of the spindle connection. Connect the actuator according to the system's thermal or control setup; the unit operates by responding to thermal input and will return the valve to the closed position via the internal spring when thermal input is removed. Verify motion and sealing after installation and perform system checks under typical operating conditions to confirm proper regulation.

Usage recommendations

Use the actuator in accordance with applicable HVAC design guidelines and the valve manufacturer's installation instructions. Ensure the actuator is used within recommended ambient temperature ranges and installed on compatible valve types to achieve expected performance and fail‑safe behavior. For periodic inspection, check mechanical connections and verify actuator movement; replace the unit if mechanical wear or loss of thermal response is observed.
