Datalogic Skorpio X5 handheld mobile computer

Name: Datalogic Skorpio X5 handheld mobile 943500048B2
Brand: Datalogic
SKU: 5045445
Price: 1921.49 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

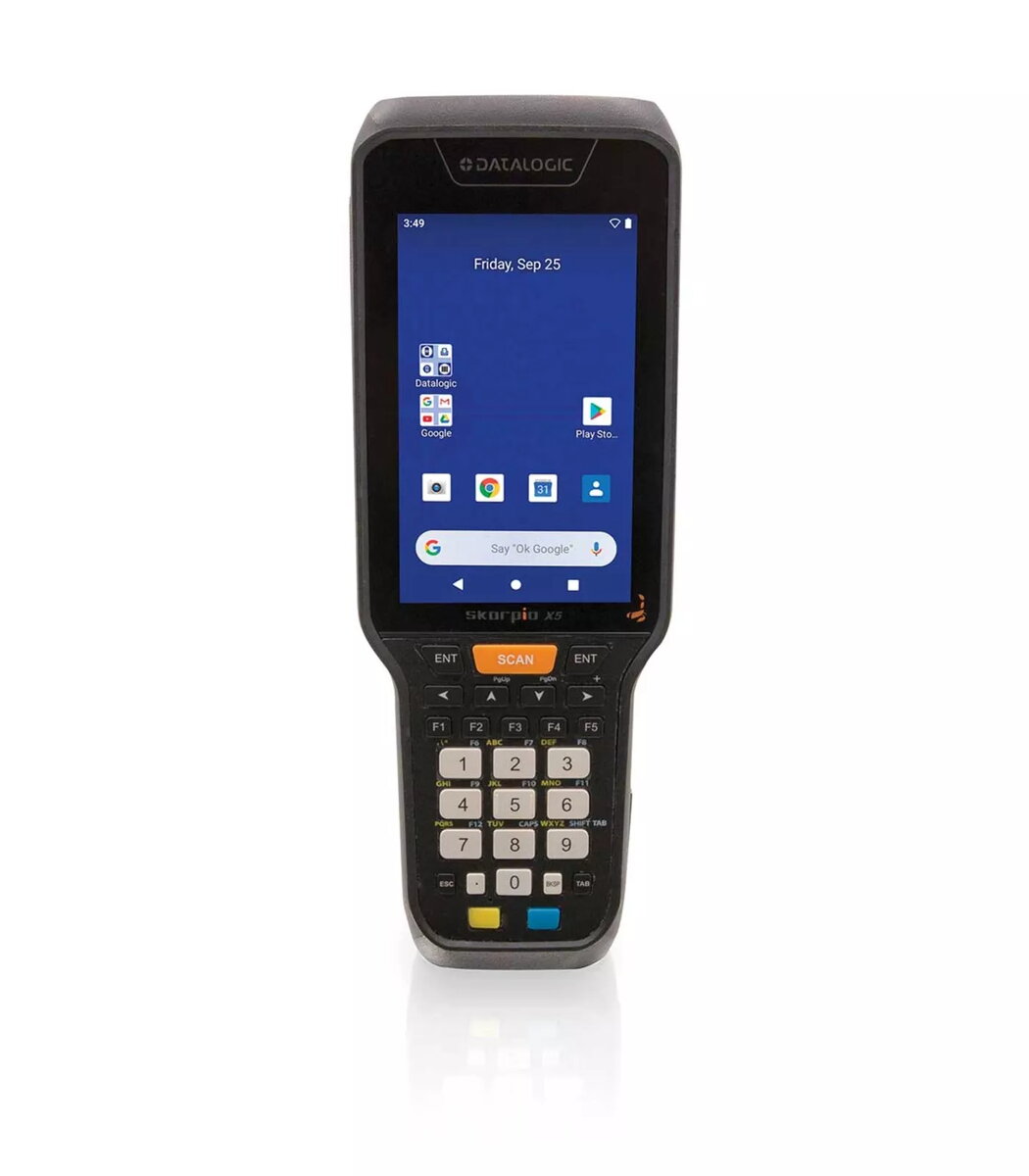

Datalogic Skorpio X5 handheld mobile computer 10.9 cm 4.3" 800 x 480

Datalogic Skorpio X5 handheld mobile computer Photo 1

Datalogic Skorpio X5 handheld mobile computer Photo 2

Datalogic Skorpio X5 handheld mobile computer Photo 3

Datalogic Skorpio X5 handheld mobile computer Photo 4

Datalogic Skorpio X5 handheld mobile computer Photo 5

Datalogic Skorpio X5 handheld mobile computer Photo 6

Short description

The Datalogic Skorpio X5 is a handheld mobile computer featuring a 4.3" multi-touch display with a resolution of 800 x 480 pixels. It is powered by a Qualcomm Snapdragon 660 processor with a frequency of 2.2 GHz and comes with 4 GB of internal memory and 64 GB of flash memory, supporting SDXC cards. It operates on Android and supports various Wi-Fi standards including 802.11ac. Ideal for inventory management and data collection in various industries.

Warranty: 2 Years

SKU: 5045445

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Datalogic Skorpio X5 is a rugged, key-based handheld mobile computer with a 4.3" multi-touch Gorilla Glass display and an 800 × 480 resolution. Designed for retail, transportation and logistics, manufacturing and healthcare, the Skorpio X5 combines a high-performance Qualcomm Snapdragon platform, multiple scan-engine options (including a unique Mid-Range imager), wireless contactless charging, hot-swappable battery technology and enterprise-grade Android to support intensive, long-shift workflows and reliable barcode capture in diverse conditions.

Advantages

The Skorpio X5 offers a large, bright 4.3" screen for improved readability in all lighting conditions, several selectable scan engines to match scanning distance requirements, and strong processing power for running multiple demanding applications concurrently. Wireless contactless charging models reduce maintenance by avoiding exposed charging contacts, while hot-swappable batteries and advanced battery management support extended shifts. The device is fully rugged with drop resistance up to 1.8 m, IP65 protection and Gorilla Glass display protection.

Suitable for

Retail point-of-sale, in-store and backroom stock operations
Warehouse picking, packing and logistics tracking
Transportation and field service data collection
Manufacturing line and inventory control
Healthcare inventory and asset management

Key specifications

Display: 4.3" multi-touch Gorilla Glass, 800 × 480 pixels
Processor: Qualcomm Snapdragon platform (market text cites up to 2.3 GHz; product data indicates Snapdragon 660 at 2.2 GHz)
Memory: 4 GB RAM; 64 GB flash storage; SDXC support
Scan engines: Linear imager, Standard 2D imager, Mid-Range imager (up to ~2 m)
Wireless: Wi‑Fi 802.11ac; optional contactless wireless charging models
Battery: Hot-swappable battery technology; advanced battery and charging management
Ruggedness: Drop resistance up to 1.8 m / 6 ft; IP65 ingress protection; Gorilla Glass display
OS: Android with Google Mobile Services; Android Enterprise Recommended
MPN: 943500048B2

How to use

Power on the Skorpio X5 and sign in using your enterprise credentials. Select or install the required mobile applications and configure Wi‑Fi or cellular connectivity as needed. Choose the scan engine variant appropriate for your workflows; use the physical scan keys or the soft spot to capture barcodes. Replace batteries during long shifts using the hot‑swappable battery feature to avoid downtime. For charging, place the device on the compatible contactless charging dock for models that support wireless charging, or use the specified charging cradle for standard models.

Usage recommendations

For best performance in scanning workflows, select the scan engine that matches the typical reading distance in your operation (linear or 2D for short range; Mid‑Range for distances up to approximately 2 m). Use the contactless charging model where high uptime and low maintenance are priorities. Store and handle the device according to IP65 and drop-resistance specifications and consider using the optional rubber boot for additional drop protection.

Specifications

Operating system installed:: Android
Display resolution:: 800 x 480
Weight:: 0.626 kg
Bluetooth:: Yes
Wi-Fi:: Yes
Touchscreen:: Yes
Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.: 4.3 "
Product colour:: Black
Compatible memory cards:: SDXC

All features

Network

Wi-Fi standards:: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a
Bluetooth version:: 5.0+EDR
Networking standards:: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11a
Bluetooth:: Yes
Wi-Fi:: Yes
Data network:: Not supported
Bluetooth Low Energy (BLE):: Yes

Software

Operating system installed:: Android
Operating system version:: 10

Operational conditions

Storage temperature (T-T):: -30 - 70
Operating temperature (T-T):: -20 - 50

Technical details

Scanner type:: 2D
Keyboard layout:: Numeric
Product colour:: Black
Drop proof:: 180 cm
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP65
Linear (1D) barcodes supported:: Code 39, POSTNET, PLANET, PDF417, Matrix 2 of 5, Interleaved 2 of 5, GS1-128 (UCC/EAN-128), GS1 DataBar Omnidirectional, GS1 DataBar, Discrete 2 of 5, Code 93, U.P.C., Code 128, Codabar
2D (matrix & stacked) barcodes supported:: QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Data Matrix, Composite Codes, Aztec Code
Barcode reader:: Yes
Chemical-resistant:: Yes
Drop proof:: Yes
Compliance certificates:: RoHS

Audio

Audio system:: HD Audio

Processor

Processor model:: 660
Processor manufacturer:: Qualcomm
Processor family:: Snapdragon
Built-in processor:: Yes
Processor frequency:: 2.2 GHz
Number of cores:: 8

Display

Display:: LCD
Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.: 4.3 "
Display resolution:: 800 x 480
Touchscreen:: Yes
Touch technology:: Multi-touch
Touchscreen type:: Capacitive
Display glass type:: Gorilla Glass

Battery

Battery technology:: Lithium-Ion (Li-Ion)
Battery capacity:: 6200 mAh

Weight & dimensions

Weight:: 0.626 kg
Width:: 78.5 mm
Depth:: 218 mm

Camera

Built-in flash:: Yes
Built-in camera:: Yes
Rear camera resolution (numeric):: 13 MP

GPS Performance

GPS (satellite):: No

Power

Battery voltage:: 3.7 V
Fast charging:: Yes
Wireless charging:: Yes

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:: 1

Memory

Compatible memory cards:: SDXC
Flash memory:: 64 GB
Maximum memory card size:: 256 GB
Internal memory:: 4 GB

Sustainability

Sustainability compliance:: Yes

Packaging content

Docking station included:: Yes
Pistol-grip handle included:: Yes

Sensors

Proximity sensor:: Yes
Ambient light sensor:: Yes
Accelerometer:: Yes
Gyroscope:: Yes
