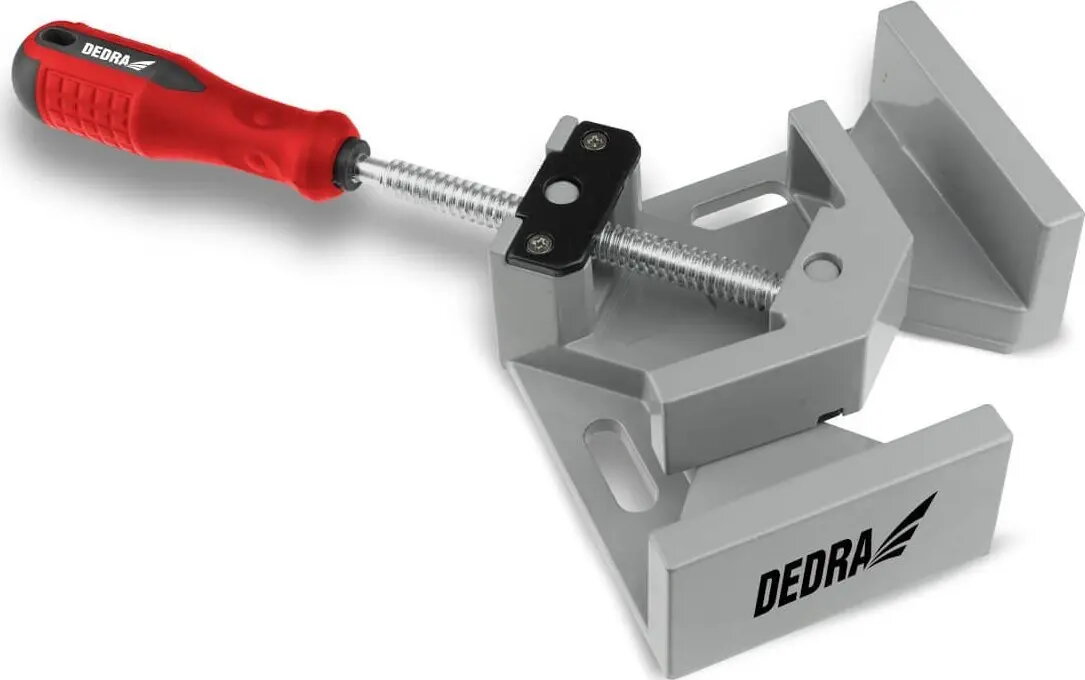

Angle clamp Dedra 70 mm, model 12A001, 70mm jaw opening for right-angle workpieces

Angle clamp Dedra 70 mm (model 12A001) is a compact right-angle clamping tool designed to secure two workpieces at an accurate 90° junction. The clamp provides a 70 mm jaw opening and a stable grip suitable for light carpentry, metalwork, cabinetry and general DIY assembly tasks where precise corner alignment is required. Its compact body and simple adjusting mechanism enable quick positioning and firm holding of components during gluing, welding, screwing or nailing operations.

Advantages

This angle clamp offers reliable right-angle positioning with a 70 mm jaw opening that accommodates common profile sizes. The design ensures consistent contact surfaces for repeatable joints and reduces the need for manual alignment during assembly. Its compact size makes it easy to handle and store, while the clamping force maintains stability for accurate fastening or adhesive curing. The tool’s construction supports both woodworking and light metal fabrication tasks without complex setup.

Suitable for

• Securing corner joints during wood or metal frame assembly
• Holding parts at 90° for gluing and adhesive curing
• Positioning components for spot welding or riveting
• Accurate alignment when fastening with screws or bolts
• DIY projects, cabinetry work and small repairs

Key specifications

• Maximum jaw opening: 70 mm
• Application: right-angle clamping for two workpieces
• Typical materials: wood, light metal, composite panels
• Compact format for easy handling and storage
• Adjustable clamping mechanism for firm holding

How to use

Place the two components to be joined in the clamp so their edges meet at the internal stops forming a 90° angle. Adjust the jaw opening to accommodate the material thickness, then tighten the clamping mechanism until the parts are held securely without deformation. Verify the square alignment visually or with a try square before applying adhesive, fasteners or welds. Release the clamp only after the bond has set sufficiently or the mechanical fixation is complete.

Usage recommendations

For best results, clean contact surfaces from dust and debris before clamping, and avoid overtightening on soft materials to prevent marking. Use with compatible adhesives and fasteners appropriate for the workpiece material, and check alignment periodically when performing multiple repeat assemblies.
