SDS Drill Head Assembly Dedra XDED7840.503 compatible SDS system

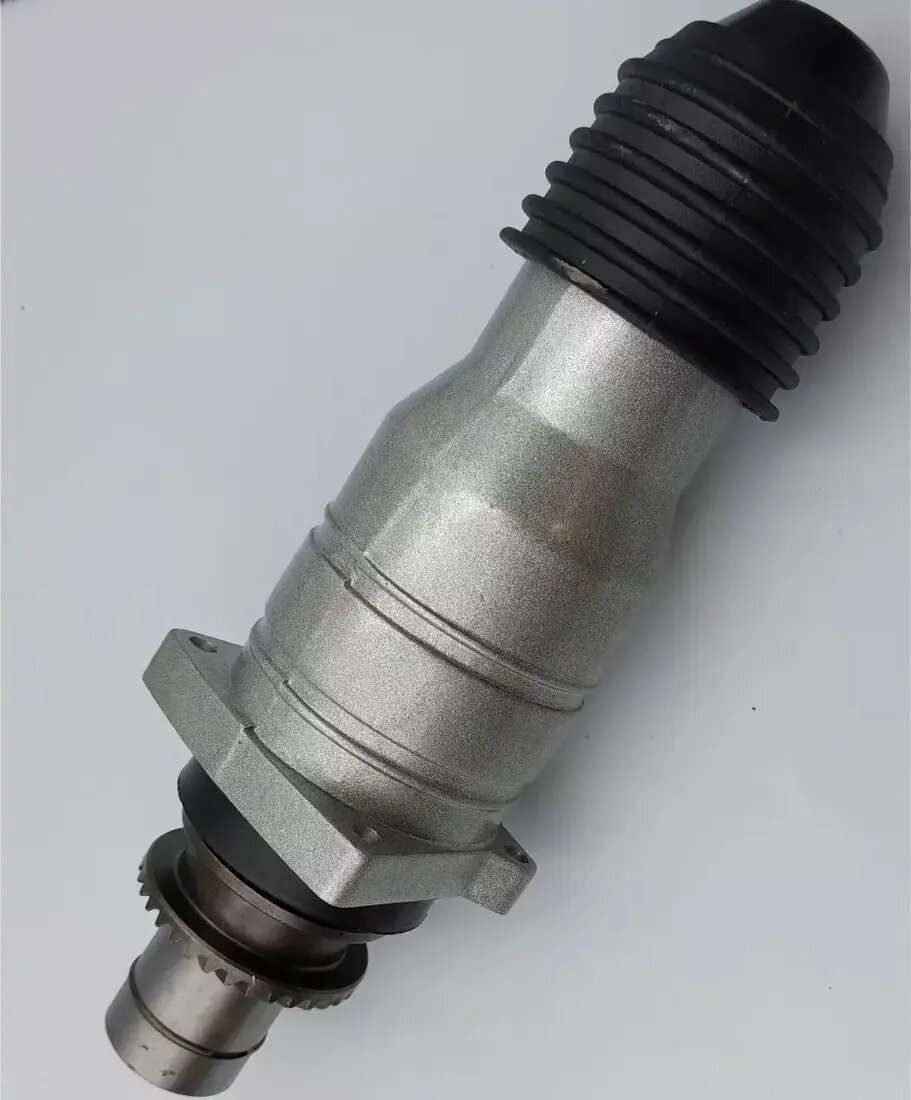

Replacement SDS drill head assembly by Dedra, model XDED7840.503 compatible with SDS rotary hammer systems. This component serves as the connection between SDS drill bits and the tool's chuck, ensuring secure bit retention and reliable transfer of torque during drilling and chiselling tasks. It is intended for maintenance, repair, or refurbishment of SDS-compatible demolition and drilling tools where the original head assembly is worn or damaged.

Advantages

The Dedra SDS drill head assembly is manufactured to match the dimensional and functional requirements of standard SDS interfaces, providing a precise fit and consistent engagement with SDS shank bits. It restores reliable bit locking and reduces play between the bit and tool, which helps maintain drilling accuracy and efficient power transfer. The design focuses on robust contact surfaces to withstand repeated insertion and extraction of bits under load.

Suitable for

• Repairing or refurbishing SDS-compatible rotary hammers and demolition tools
• Replacing worn or damaged SDS bit retention components
• Workshops performing maintenance on power tools that use SDS shank bits
• Users who need to restore secure bit holding and consistent torque transfer

When it may not be suitable

This head assembly is designed specifically for SDS systems; it may not be compatible with other proprietary bit retention systems or non-SDS chucks. It is not a full replacement for other internal tool components such as the gearbox, piston, or motor; if issues stem from those parts, replacing the drill head assembly alone will not resolve them.

Key specifications

• Compatibility: SDS rotary hammer systems (standard SDS interface)
• Function: Bit retention and torque transfer between SDS bits and tool chuck
• Material characteristics: durable contact surfaces suitable for repeated use under load
• Application: maintenance and repair of SDS-compatible demolition and drilling tools

How to use

Turn off and unplug the power tool or remove its battery before starting any maintenance. Disassemble the tool according to the manufacturer’s service instructions to access the existing SDS head assembly, remove the worn component, and install the replacement assembly in the correct orientation. Ensure all retaining parts and springs are correctly seated and that any lubrication points are serviced as specified by the tool manufacturer. After reassembly, test the tool at low speed without load to confirm proper engagement and secure bit retention before resuming normal work.

What to consider before purchase

• Verify that your tool uses a standard SDS interface and is compatible with this type of head assembly
• Confirm that the issue is limited to the head assembly and not caused by internal gearbox or drive issues
• Check that you have the correct tools and technical skill to perform the replacement or consult a qualified service technician

Usage recommendations

Use OEM or equivalent-quality lubricants where recommended, inspect retaining springs and contact surfaces periodically, and replace the assembly if excessive wear or deformation is observed. Follow the tool manufacturer's maintenance schedule to ensure safe and reliable operation.
