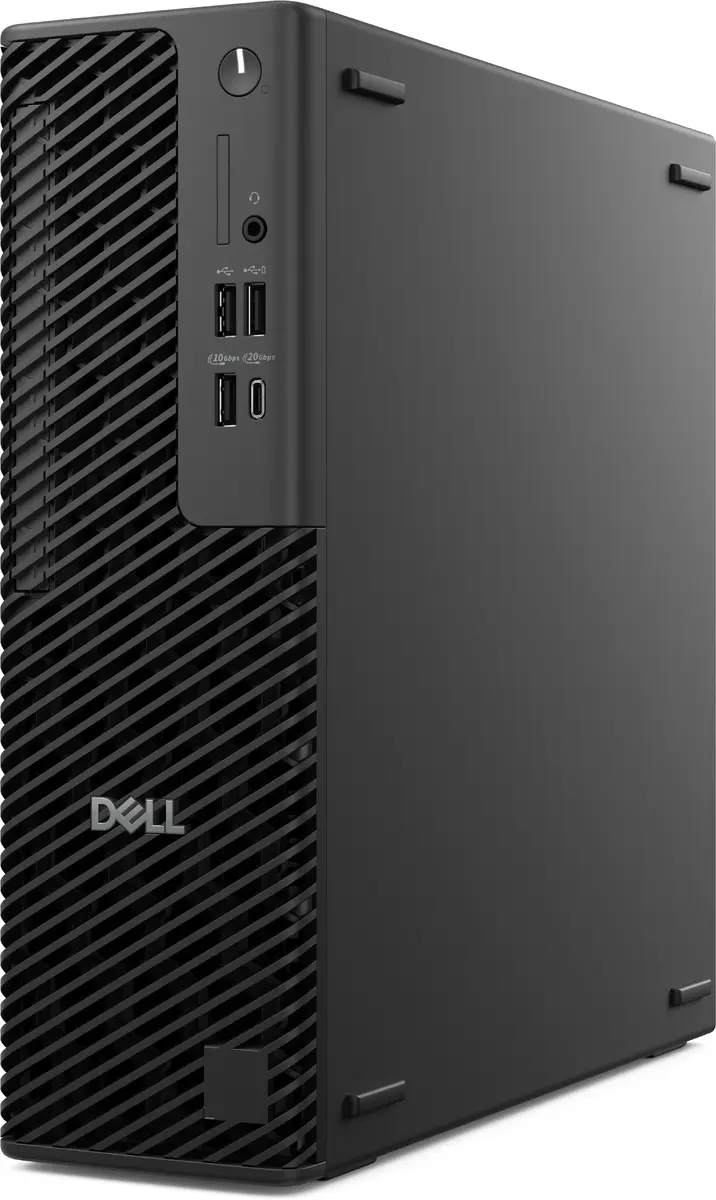

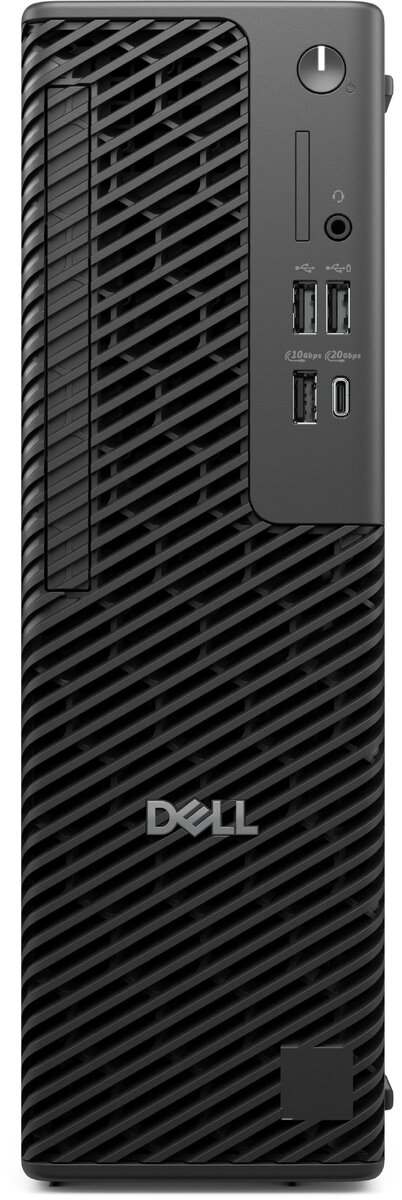

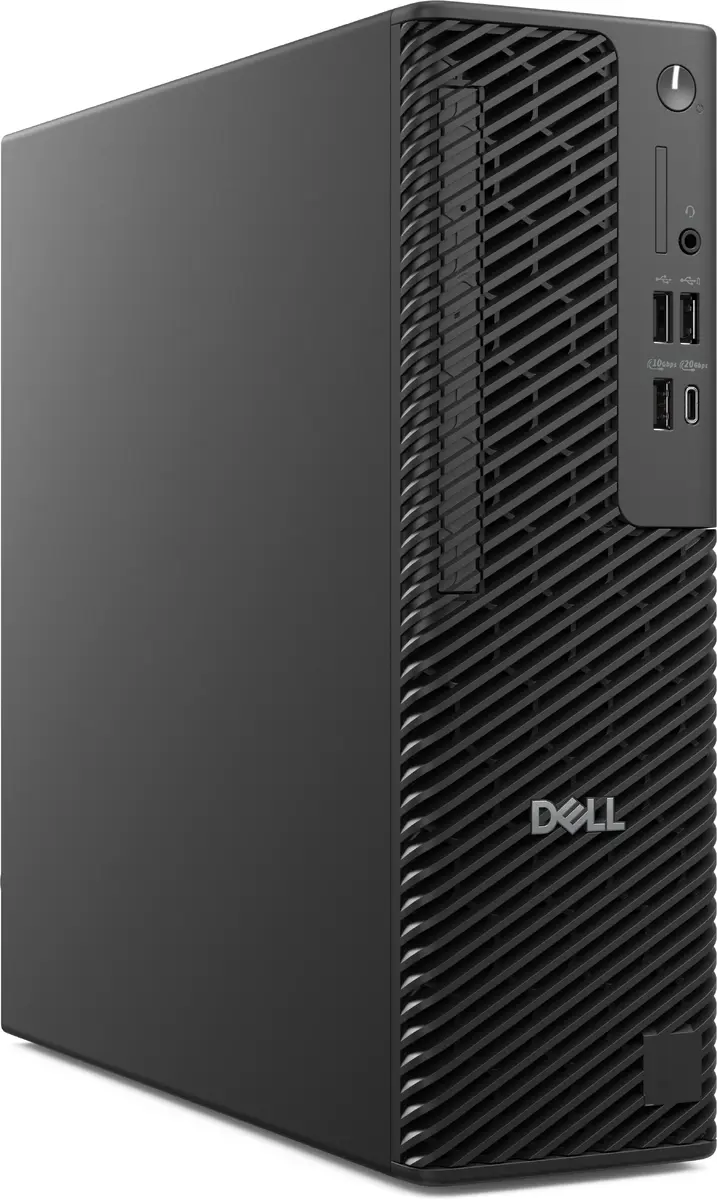

Desktop PC Dell Pro Max Slim FCS1250 — Intel Core Ultra 5 245, 16GB RAM, 512GB SSD, Integrated graphics, vPro, Windows 11 Pro

Self-Encrypting Drive (SED):

Yes

PCI Express x16 (Gen 4.x) slots:

1

Processor

Processor family:

Intel Core Ultra 5

Processor model:

245

Processor boost frequency:

5.1 GHz

Processor cores:

14

Processor threads:

14

Processor cache:

24 MB

Processor cache type:

Smart Cache

Processor manufacturer:

Intel

Processor base power:

65 W

Maximum turbo power:

121 W

Efficient-core base frequency:

3 GHz

Performance-core base frequency:

3.5 GHz

Processor generation:

Intel Core Ultra (Series 2)

Efficient-core Max Turbo Frequency:

4.5 GHz

Performance-core Max Turbo Frequency:

5.1 GHz

Efficient cores:

8

Performance cores:

6

Memory

Internal memory:

16 GB

Internal memory type:

DDR5-SDRAM

Memory slots:

4x SO-DIMM

Maximum internal memory:

128 GB

Non-ECC:

Yes

Memory layout (slots x size):

1 x 16

Memory data transfer rate:

5600 MT/s

Storage

Total storage capacity:

512 GB

SSD capacity:

512 GB

SSD interface:

PCI Express 4.0

Number of SSDs installed:

1

Storage media:

SSD

Number of storage drives installed:

1

SSD form factor:

M.2

NVMe:

Yes

Total SSDs capacity:

512 GB

SSD memory type:

TLC

M.2 SSD size:

2280 (22 x 80 mm)

Graphics

Discrete graphics card model:

Not available

Graphics card Mini DisplayPort ports quantity:

4

Discrete graphics card:

No

On-board graphics card:

Yes

On-board GPU manufacturer:

Intel

Network

Wi-Fi:

No

Ethernet LAN:

Yes

LAN controller:

Intel I219-LM

Ethernet LAN data rates:

10, 100, 1000

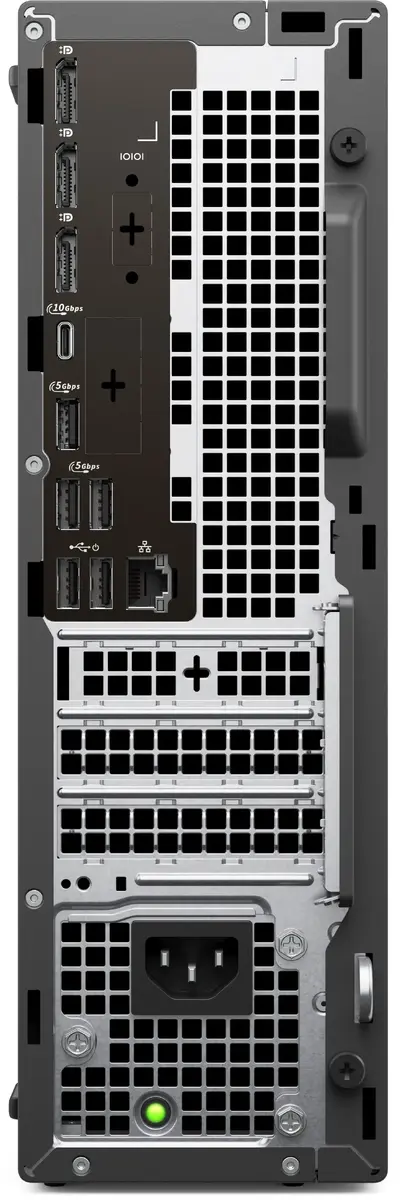

Ports & interfaces

Ethernet LAN (RJ-45) ports:

1

USB 2.0 ports quantity:

4

DC-in jack:

Yes

DisplayPorts quantity:

3

Number of SATA III connectors:

2

Combo headphone/mic port:

Yes

DisplayPort version:

1.4a

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

1

USB 3.2 Gen 2x2 Type-C ports quantity:

1

Software

Operating system installed:

Windows 11 Pro

Trial software:

Activate Your Microsoft 365 For A 30 Day Trial

Operating system architecture:

64-bit

Expansion slots

PCI Express x4 (Gen 3.x) slots:

1

PCI Express x1 (Gen 3.x) slots:

1

Design

Product colour:

Black

Chassis type:

Slim PC

Cable lock slot:

Yes

Cable lock slot type:

Kensington

80 PLUS certification:

80 PLUS Platinum

Operational conditions

Operating altitude:

-15.2 - 3048

Operating relative humidity (H-H):

10 - 90

Storage temperature (T-T):

-40 - 65

Operating temperature (T-T):

0 - 35

Storage relative humidity (H-H):

0 - 95

Non-operating altitude:

-15.2 - 10668

Weight & dimensions

Weight:

6.11 kg

Height:

303.5 mm

Width:

95 mm

Depth:

293 mm

Packaging content

Cables included:

AC

Other features

Number of processors installed:

1

Cabling technology:

10/100/1000Base-T(X)

Power supply:

360 W

Display included:

No

Audio

Audio system:

High Definition Audio

Performance

Optical drive type:

No

Motherboard chipset:

Intel W880

Trusted Platform Module (TPM):

Yes

Trusted Platform Module (TPM) version:

2.0

Product type:

PC

Audio chip:

Realtek ALC3204

Doesn't contain:

PVC/BFR

Power

Power supply input voltage:

90 - 264

Power supply input frequency:

47/63

Neural processor unit (NPU)

Sparsity support:

Yes

Windows Studio effects support:

Yes

AI software frameworks supported by NPU:

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to:

29 TOPs

NPU performance up to:

13 TOPs

Neural processor unit (NPU):

Intel AI Boost

GPU performance up to:

8 TOPs

Carbon footprint

Total carbon footprint (kg of CO2e):

202

Carbon emissions, manufacturing (kg of CO2e):

95.748

Carbon emissions, logistics (kg of CO2e):

10.1

Carbon emissions, energy usage (kg of CO2e):

92.718

Carbon emissions, end-of-life (kg of CO2e):

3.64

PAIA version:

GaBi version 1, 2024
