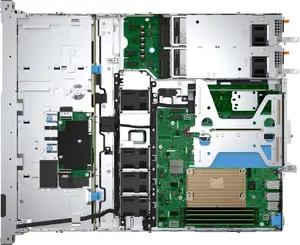

Dell PowerEdge R360 Rack Server, Intel Xeon 6369P 3.3 GHz, 32 GB DDR5-SDRAM, 960 GB Storage, 700 W

Performance cores:

8

Processor

Processor model:

6369P

Processor manufacturer:

Intel

Processor threads:

16

Processor boost frequency:

5.7 GHz

Processor cache:

24 MB

Processor frequency:

3.3 GHz

Thermal Design Power (TDP):

95 W

Memory types supported by processor:

DDR5-SDRAM

Memory clock speeds supported by processor:

4800

Memory

Internal memory type:

DDR5-SDRAM

Maximum internal memory:

128 GB

ECC:

Yes

Memory layout (slots x size):

1 x 32

Internal memory:

32 GB

Memory data transfer rate:

5600 MT/s

Buffered memory type:

Unregistered (unbuffered)

Storage

Optical drive type:

No

Hot-Plug support:

Yes

Total storage capacity:

960 GB

SSD interface:

SATA III

SSD capacity:

480 GB

Number of SSDs installed:

2

Number of SSDs supported:

8

Supported RAID controllers:

Front PERC H755 Front Load

SSD size:

2.5"

Supported SSD sizes:

2.5"

Graphics

On-board graphics card model:

Not available

Network

Ethernet LAN:

Yes

LAN controller:

Broadcom 5720

Ethernet interface type:

Gigabit Ethernet

Ports & interfaces

Serial ports quantity:

1

USB 2.0 ports quantity:

2

Ethernet LAN (RJ-45) ports:

2

VGA (D-Sub) ports quantity:

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

1

Expansion slots

PCI Express x16 slots:

1

PCI Express x8 slots:

1

Power

Power supply:

700 W

Power supply input voltage:

200 - 240

Redundant power supply (RPS) support:

Yes

Number of redundant power supplies installed:

2

Design

Chassis type:

Rack (1U)

Product colour:

Black

Bezel:

Yes

Performance

Remote administration:

iDRAC9, Enterprise 16G

Technical details

Total carbon footprint (kg of CO2e):

1140

Other features

Number of processors installed:

1

Memory slots:

4x DIMM

Data transfer rate:

6 Gbit/s

Bytes per sector:

512

Processor cores:

8

On-board graphics card:

No

Target workload:

Read Intensive (RI)

Weight & dimensions

Height:

42.8 mm

Width:

482 mm

Certificates

80 PLUS certification:

80 PLUS Titanium

Software

Operating system installed:

No

Features

Compatible operating systems:

Canonical® Ubuntu® Server LTSMicrosoft® Windows Server® with Hyper-VRedHat® Enterprise LinuxSUSE® Linux Enterprise ServerVMware® ESXi®

Carbon footprint

Total carbon emissions, standard deviation (kg of CO2e):

943

Carbon emissions, manufacturing (kg of CO2e):

307.8

Carbon emissions, logistics (kg of CO2e):

102.6

Carbon emissions, energy usage (kg of CO2e):

718.2

Carbon emissions, end-of-life (kg of CO2e):

11.4

PAIA version:

PAIA 1.4.0, 2024

Packaging data

Packaging content:

Riser Config 0, 2x Rack Power Cord 2M (C13/C14 12A) - FGA Only
