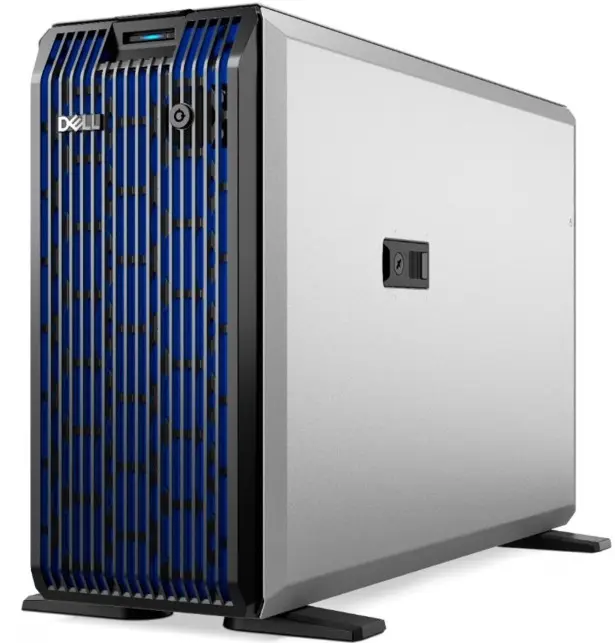

Tower server Dell PowerEdge T360 — Intel Xeon 6 6357P 3 GHz, 64 GB DDR5, 960 GB, 700 W (4.5U)

Performance cores:

8

Processor

Processor model:

6357P

Processor manufacturer:

Intel

Processor family:

Intel Xeon 6

System bus rate:

16 GT/s

Processor threads:

16

Processor boost frequency:

5.4 GHz

Processor cache:

24 MB

Processor frequency:

3 GHz

Thermal Design Power (TDP):

80 W

Memory types supported by processor:

DDR5-SDRAM

Memory clock speeds supported by processor:

4800

Memory

Internal memory type:

DDR5-SDRAM

Maximum internal memory:

128 GB

ECC:

Yes

Memory layout (slots x size):

2 x 32

Internal memory:

64 GB

Memory data transfer rate:

5600 MT/s

Buffered memory type:

Unregistered (unbuffered)

Storage

Optical drive type:

No

Hot-Plug support:

Yes

Total storage capacity:

960 GB

SSD interface:

SATA III

SSD capacity:

480 GB

RAID support:

No

Number of SSDs installed:

2

Number of SSDs supported:

8

Supported RAID controllers:

PERC H755 Adapter FH

Storage drive adapter included:

Yes

Storage drive adapter type:

2.5" - 3.5"

SSD size:

2.5"

Supported SSD sizes:

3.5"

Network

Cabling technology:

10/100/1000Base-T(X)

Ethernet LAN:

Yes

LAN controller:

Broadcom 5720

Ethernet interface type:

Gigabit Ethernet

Ports & interfaces

Serial ports quantity:

1

USB 2.0 ports quantity:

3

Ethernet LAN (RJ-45) ports:

2

VGA (D-Sub) ports quantity:

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

4

Power cables quantity:

2

Expansion slots

PCI Express x4 slots:

2

Power

Power supply:

700 W

Power supply input voltage:

200 - 240

Redundant power supply (RPS) support:

No

Power cable length:

2 m

Number of main power supplies:

1

Power cable current:

10 A

Power cable connector 1:

C13 coupler

Power cable connector 2:

C14 coupler

Design

Chassis type:

Tower (4.5U)

Product colour:

Black

Bezel:

Yes

Performance

Remote administration:

iDRAC9, Enterprise 16G

Technical details

Total carbon footprint (kg of CO2e):

1409

Other features

Number of processors installed:

1

Memory slots:

4x DIMM

Data transfer rate:

6 Gbit/s

Bytes per sector:

512

Target workload:

Read Intensive (RI)

Weight & dimensions

Width:

175 mm

Depth:

581.12 mm

Certificates

80 PLUS certification:

80 PLUS Titanium

Operational conditions

Operating altitude:

0 - 2048

Storage temperature (T-T):

-40 - 65

Storage relative humidity (H-H):

5 - 95

Non-operating altitude:

0 - 12000

Software

Operating system installed:

No

Features

Compatible operating systems:

Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Carbon footprint

Total carbon emissions, standard deviation (kg of CO2e):

1213

Carbon emissions, manufacturing (kg of CO2e):

295.89

Carbon emissions, logistics (kg of CO2e):

154.99

Carbon emissions, energy usage (kg of CO2e):

929.94

Carbon emissions, end-of-life (kg of CO2e):

28.18

PAIA version:

1.4.0, 2024
