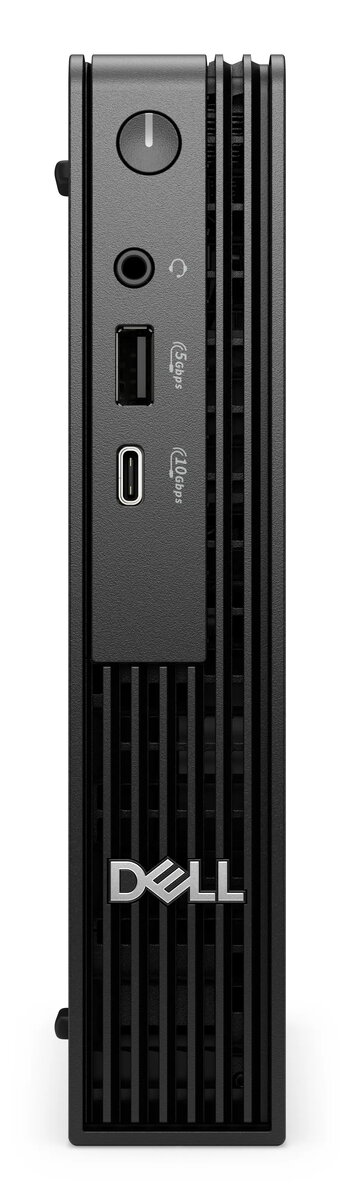

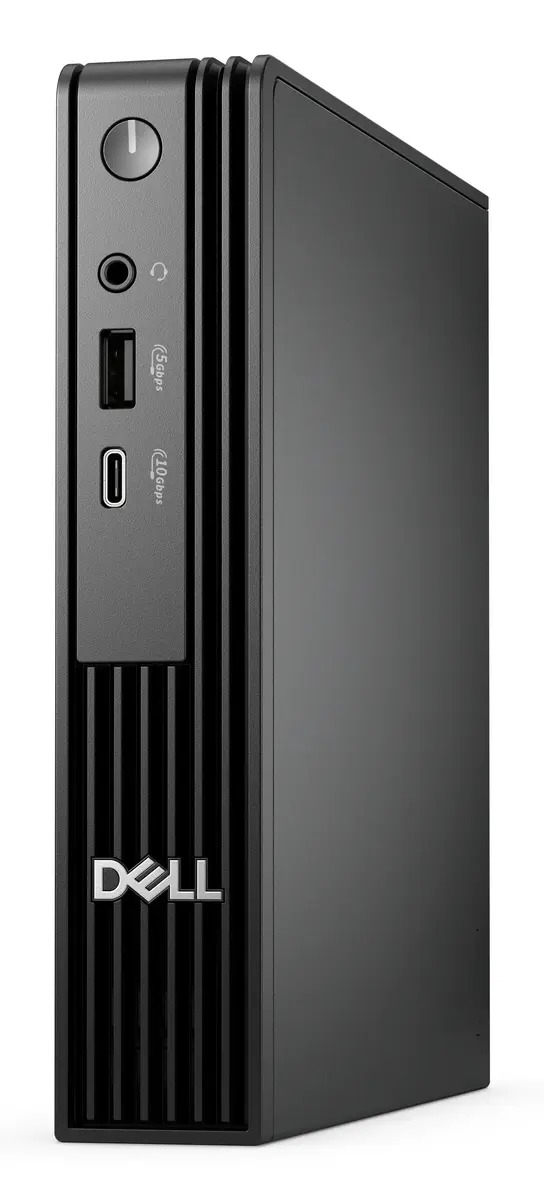

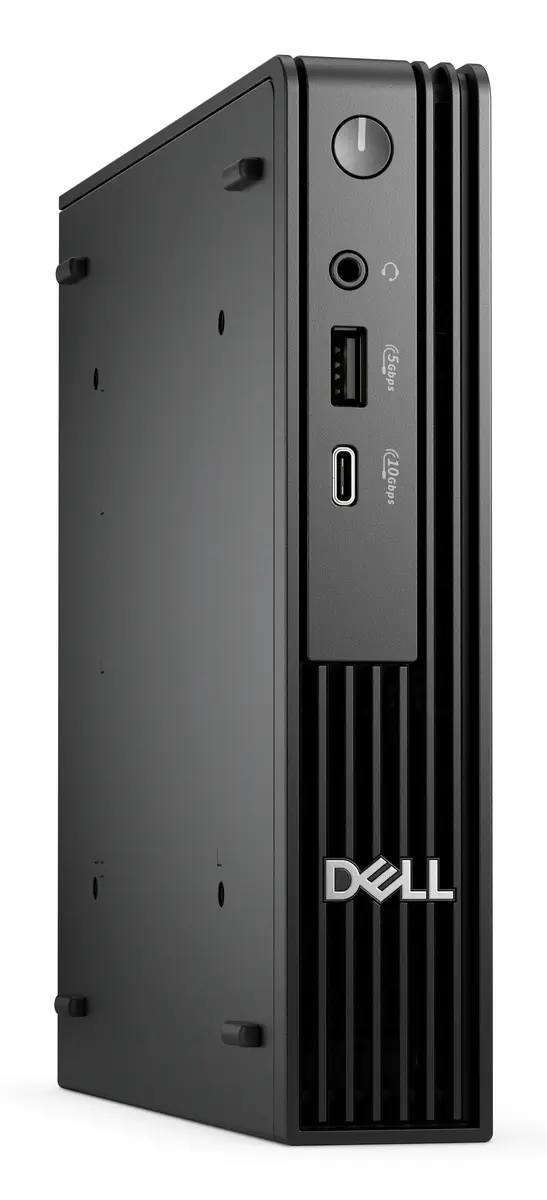

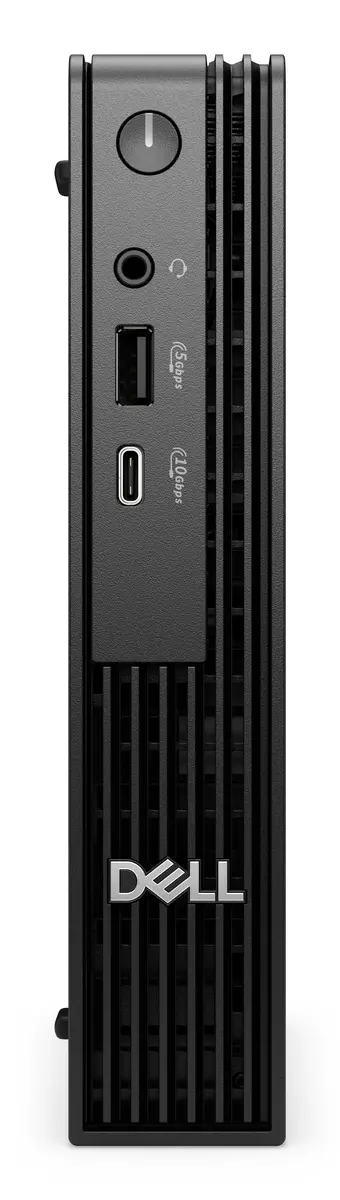

Dell Pro QCM1250 Mini PC with Intel Core Ultra 5 235T, 16 GB DDR5-SDRAM, 512 GB SSD, Wi-Fi, and Windows 11 Pro

Antenna design:

Internal

Other features

Number of processors installed: Number of processors in the product.

1

Chassis type: The type of rigid framework onto which is the hosuing for device components.

Micro PC

Cabling technology: Type of cable technology performance.

10/100/1000Base-T(X)

Power supply: The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

90 W

Display included: This product includes a display.

No

Market positioning: Under which category can the device be positioned in the market, e.g. camera phone.

Business

Packaging content

Keyboard included on selected markets:

Dell Wired Keyboard - KB216 - UK (QWERTY) - Black

Mouse included on selected markets:

Dell Optical Mouse-MS116 - Black

Technical details

Total carbon footprint (kg of CO2e): The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.

77.6

Non-operating shock: Environmental requirements for optimal protection from impact in non-operating mode

105 G

Operating shock: Environmental requirements for optimal protection from impact in operating mode

40 G

Non-operating vibration: Environmental requirements for vibration in non-operating mode

1.37 G

Operating vibration: Environmental requirements for vibration in operating mode

0.26 G

Carbon footprint

Carbon emissions, manufacturing (kg of CO2e): The mean carbon emissions during the Manufacturing stage (i.e., emissions during raw material extraction and manufacturing of components (e.g., drives, graphics cards, memory, CPU, mainboards, etc.) or assembling of the product.

41.52

Carbon emissions, logistics (kg of CO2e): The mean carbon emissions during the transportation of the product.

2.17

Carbon emissions, energy usage (kg of CO2e): Use-phase carbon emissions from products that consume energy (fuels or electricity) during use.

33.45

Carbon emissions, end-of-life (kg of CO2e): The mean carbon emissions related to the End-of-Life processing of products.

0.54

PAIA version: PAIA (Product Attribute to Impact Algorithm) tool for product carbon footprint calculations. The version of the PAIA tool (and year if available) used during carbon footprint calculation for a product.

GaBi version 1, 2024

Processor special features

Intel® vPro™ Platform Eligibility:

Yes

Software

Trial software:

Activate Your Microsoft 365 For A 30 Day Trial

Operating system architecture: The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.

64-bit

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro

Performance

Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Horizontal/Vertical

Audio chip:

Realtek ALC3204

Trusted Platform Module (TPM) version:

2.0

Motherboard chipset: The chipset connects the microprocessor to the rest of the motherboard.

Intel® Q870

Product type: The sub-category of the product.

Mini PC

Optical drive type: An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.

No

Trusted Platform Module (TPM):

Yes

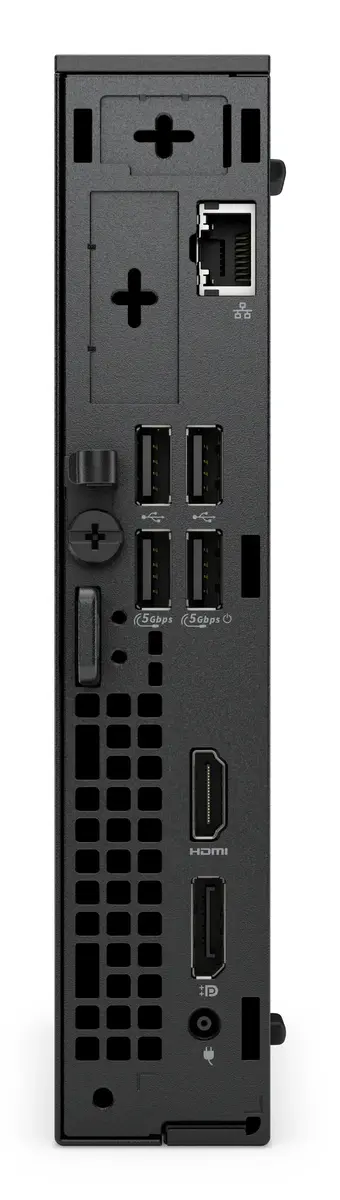

Ports & interfaces

Number of front audio ports:

1

Number of front USB ports:

2

Number of rear USB ports:

4

Thunderbolt 3 ports quantity:

0

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Combo headphone/mic port:

Yes

DisplayPort version:

1.4a

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2

DisplayPorts quantity: Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1

HDMI version:

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

0

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

3

Network

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

2x2

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

LAN controller:

Intel WGI219LM

WLAN controller model:

Intel Wi-Fi 6E AX211

WLAN controller manufacturer:

Intel

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100, 1000

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6E (802.11ax)

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Audio

Audio system: System used to play music or speech.

High Definition Audio

Graphics

On-board graphics card family:

Intel® Graphics

On-board graphics card: Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.

Yes

Discrete graphics card model: A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available

On-board graphics card model: "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel® Graphics

On-board GPU manufacturer:

Intel

Discrete graphics card:

No

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.16 kg

Height: The measurement of the product from head to foot or from base to top.

182 mm

Depth: The distance from the front to the back of something.

178 mm

Width: The measurement or extent of something from side to side.

36 mm

Storage

SSD form factor: The size of the solid-state drive, given in inches

M.2

SSD interface: The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express 4.0

SSD capacity:

512 GB

Number of SSDs installed:

1

Total SSDs capacity:

512 GB

Number of storage drives installed: Amount of storage drives built into the device.

1

Storage media: Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD

NVMe: NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.

Yes

Total storage capacity: The total amount of data that can be stored on the device.

512 GB

Sustainability

Sustainability certificates:

ENERGY STAR, EPEAT Climate +, EPEAT Gold

Neural processor unit (NPU)

GPU performance up to:

6 TOPs

NPU performance up to:

13 TOPs

Total processor performance up to:

27 TOPs

AI software frameworks supported by NPU:

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Windows Studio effects support:

Yes

Sparsity support:

Yes

Neural processor unit (NPU):

Intel AI Boost

Processor

Processor base power:

35 W

Maximum turbo power:

114 W

Processor cache type:

Smart Cache

Processor cache:

24 MB

Processor threads:

14

Efficient-core base frequency:

1.6 GHz

Performance-core base frequency:

2.2 GHz

Efficient-core Max Turbo Frequency:

4.4 GHz

Performance-core Max Turbo Frequency:

5 GHz

Efficient cores:

8

Performance cores:

6

Processor boost frequency: The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5 GHz

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

14

Processor model: The model number for the processor in a computer.

235T

Processor generation:

Intel Core Ultra (Series 2)

Processor manufacturer: The manufacturer that produced the processor.

Intel

Processor family: A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Intel Core Ultra 5

Operational conditions

Non-operating altitude:

-15.2 - 10668

Operating altitude:

-15.2 - 3048

Storage relative humidity (H-H):

5 - 95

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 65

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

10 - 35

Power

Power supply input voltage:

100 - 240

Power supply input frequency: The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.

50 / 60

Design

Cable lock slot: Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.

Yes

Cable lock slot type:

Kensington

Product colour: The colour e.g. red, blue, green, black, white.

Black

Memory

Non-ECC:

Yes

Memory channels:

Single-channel

Memory data transfer rate:

5600 MT/s

Memory slots: Number and type of memory expansion slots, including connector and memory module descriptions.

2x SO-DIMM

Maximum internal memory: The maximum internal memory which is available in the product.

64 GB

Memory layout (slots x size): The slots and size of the memory for the CPU.

1 x 16

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM

Internal memory: A computer's memory which is directly accessible to the CPU.

16 GB
