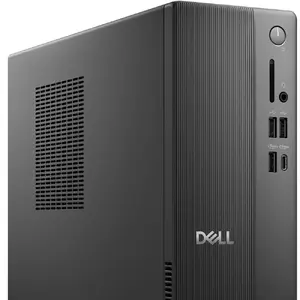

Desktop PC Dell Pro QVS1260 Intel Core i5-14400 4.7 GHz 8 GB DDR5 512 GB SSD Intel UHD Graphics 730 Slim Black

Buffered memory type:

Unregistered (unbuffered)

MU-MIMO:

Yes

Other features

Number of processors installed: Number of processors in the product.

1

Chassis type: The type of rigid framework onto which is the hosuing for device components.

Slim PC

Cabling technology: Type of cable technology performance.

10/100/1000Base-T(X)

Power supply: The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

180 W

Display included: This product includes a display.

No

Technical details

Non-operating shock: Environmental requirements for optimal protection from impact in non-operating mode

105 G

Operating shock: Environmental requirements for optimal protection from impact in operating mode

40 G

Non-operating vibration: Environmental requirements for vibration in non-operating mode

1.37 G

Operating vibration: Environmental requirements for vibration in operating mode

0.26 G

Packaging content

Cables included:

AC

Keyboard included on selected markets:

Dell Wired Keyboard - KB216 - UK (QWERTY) - Black

Mouse included on selected markets:

Dell Optical Mouse - MS116 (Black)

Performance

Audio chip:

Realtek ALC3204

Trusted Platform Module (TPM) version:

2.0

Motherboard chipset: The chipset connects the microprocessor to the rest of the motherboard.

Intel Q670

Product type: The sub-category of the product.

PC

Optical drive type: An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.

No

Trusted Platform Module (TPM):

Yes

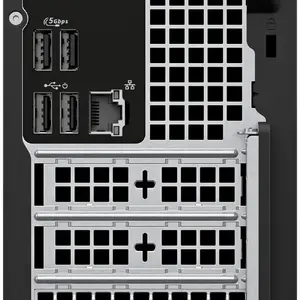

Ports & interfaces

Number of front USB ports:

4

Number of rear USB ports:

4

Number of SATA III connectors: Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.

1

Thunderbolt 3 ports quantity:

0

Combo headphone/mic port:

Yes

DisplayPort version:

1.4

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

4

DisplayPorts quantity: Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1

HDMI version:

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

0

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

3

Network

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

2x2

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

WLAN controller manufacturer:

MediaTek

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 6 (802.11ax)

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

100, 1000, 10

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6 (802.11ax)

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Audio

Audio system: System used to play music or speech.

High Definition Audio

Design

80 PLUS certification:

80 PLUS Bronze

Cable lock slot: Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.

Yes

Cable lock slot type:

Kensington

Product colour: The colour e.g. red, blue, green, black, white.

Black

Expansion slots

PCI Express x16 slots:

1

PCI Express x1 slots:

3

Graphics

On-board graphics card: Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.

Yes

Discrete graphics card model: A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available

On-board graphics card model: "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel UHD Graphics 730

On-board GPU manufacturer:

Intel

Discrete graphics card:

No

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

303.5 mm

Depth: The distance from the front to the back of something.

293 mm

Width: The measurement or extent of something from side to side.

95 mm

Operational conditions

Non-operating altitude:

-15.2 - 10668

Operating altitude:

-15.2 - 3048

Storage relative humidity (H-H):

5 - 95

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 65

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

10 - 35

Processor

Processor base power:

65 W

Maximum turbo power:

148 W

Processor cache type:

Smart Cache

Processor cache:

20 MB

Processor threads:

16

Processor model: The model number for the processor in a computer.

i5-14400

Efficient-core base frequency:

1.8 GHz

Performance-core base frequency:

2.5 GHz

Efficient-core Max Turbo Frequency:

3.5 GHz

Performance-core Max Turbo Frequency:

4.7 GHz

Efficient cores:

4

Performance cores:

6

Processor boost frequency: The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

4.7 GHz

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

10

Processor manufacturer: The manufacturer that produced the processor.

Intel

Storage

SSD form factor: The size of the solid-state drive, given in inches

M.2

SSD interface: The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express 3.0

SSD capacity:

512 GB

Number of SSDs installed:

1

Total SSDs capacity:

512 GB

Storage media: Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD

NVMe: NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.

Yes

Total storage capacity: The total amount of data that can be stored on the device.

512 GB

Memory

Memory data transfer rate:

4800 MT/s

Memory slots: Number and type of memory expansion slots, including connector and memory module descriptions.

2x DIMM

Maximum internal memory: The maximum internal memory which is available in the product.

32 GB

Memory layout (slots x size): The slots and size of the memory for the CPU.

1 x 8

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM

Internal memory: A computer's memory which is directly accessible to the CPU.

8 GB

Power

Power supply input voltage:

90 - 264

Power supply input frequency: The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.

47 - 63

Software

Trial software:

McAfee® Business Protection 1-year,Activate Your Microsoft 365 For A 30 Day Trial

Operating system architecture: The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.

64-bit

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro
