Pin header DeLOCK 66690

Name: Pin header DeLOCK 66690 Printed 66690
Brand: DELOCK
SKU: 4029443
Price: 7.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

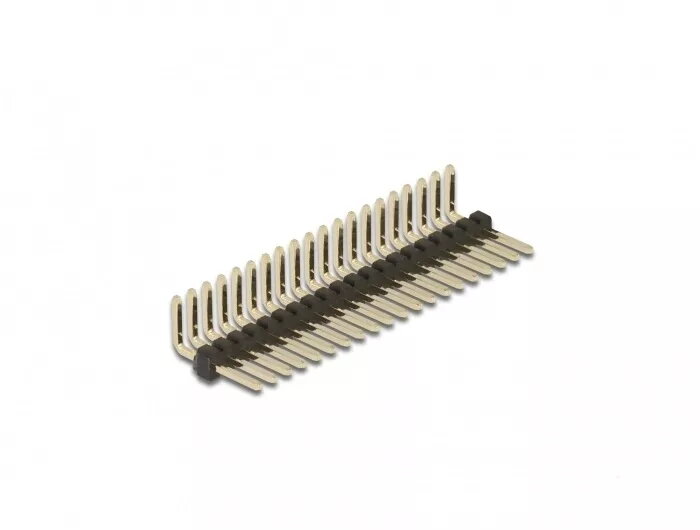

Pin header DeLOCK 66690 Printed Circuit Board (PCB) accessory

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The DeLOCK 66690 pin header is a reliable accessory for printed circuit boards. Made from high-quality metal and plastic, it features a black and metallic finish. With dimensions of 25.4 mm in length, 7.4 mm in depth, and 2 mm in height, it is designed for easy integration into your projects. This set includes 5 pieces, ensuring you have enough for multiple applications.

Available at price 7.99 €: 117 pcs.

Total available for order: 227 pcs.

Warranty: 2 Years

SKU: 4029443

Manufacturer: DELOCK

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

23.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

23.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 7.99 €: 5 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The DeLOCK 66690 pin header is an accessory for printed circuit boards that enables electrical connections between individual PCBs. It is made of metal and plastic with a black and metallic finish and is supplied as a set of five pieces. The compact dimensions (25.4 mm length, 7.4 mm depth, 2 mm height) allow easy integration into a variety of PCB layouts.

Advantages

The pin header offers a straightforward mechanical and electrical connection solution for PCBs and is delivered in a small multi-piece set to cover several connection points. Its metal contacts and plastic housing provide stable performance and simple soldering or insertion into standard PCB holes. The black and metallic colour scheme helps with component identification on the board.

Suitable for

Connecting two printed circuit boards
Prototyping and electronic hobby projects
Repairing or extending existing PCB assemblies
Use in compact electronic devices with limited space

Key specifications

Brand: DELOCK
Model / MPN: 66690
EAN: 4043619666904
Quantity: 5 pieces
Material: metal contacts and plastic housing
Colour: Black, Metallic
Dimensions: 25.4 mm (length) x 7.4 mm (depth) x 2 mm (height)
Category: PC Internal Cables / PCB accessory

How to use

Position the pin header so the pins align with the corresponding holes on the PCB, then solder the pins to the board pads or insert the header into a compatible socket if applicable. Ensure correct orientation before soldering and verify solder joints for mechanical stability and electrical continuity after assembly.

Usage recommendations

For reliable results, use appropriate soldering tools and follow standard ESD precautions when handling the pin header and PCB. Check compatibility with your board hole spacing and mounting method prior to assembly.

Specifications

Product colour:: Black, Metallic

All features

Material:: Plastic, Metal
Operating temperature (T-T):: -40 - 105
Number of pins:: 20
Height:: 2 mm
Depth:: 7.4 mm
Insulation resistance:: 1000 MΩ
Product type:: Pin header
Number of rows:: 1
Withstanding voltage:: 500 V
Connector form factor:: Angled
Soldering temperature (for 3 seconds):: 230 °C
Pitch distance:: 1.27 mm

Technical details

Length:: 25.4 mm
Country of origin:: China

Packaging data

Quantity per pack:: 5 pc(s)

Features

Connector contacts plating:: Gold
Product colour:: Black, Metallic
