Ribbon Cable DeLOCK 85644

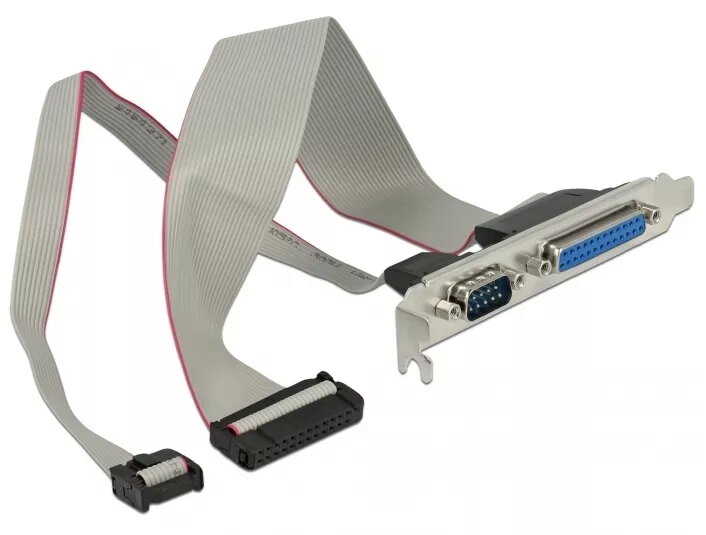

This Delock slot bracket allows internal serial and parallel port headers to be routed to Sub-D connectors accessible from a standard PC expansion slot. It installs into a standard slot and provides an external interface for internal pin headers, enabling connection of external devices to internal motherboard or controller ports.

Advantages

The bracket converts internal pin headers to Sub-D types without modifying the motherboard, and its compact slot-mounted design keeps external connectors neatly aligned with the PC case. Constructed to match typical internal cabling, the DeLOCK 85644 supports reliable signal transmission and is supplied as a single unit with a black and grey ribbon cable for easy identification.

Suitable for

• Extending internal serial (COM) headers to external Sub-D connectors
• Providing external access to parallel (LPT) headers from inside the case
• Connecting legacy peripherals that require Sub-D serial or parallel ports

Key specifications

• Brand: DELOCK
• Model / MPN: 85644
• EAN: 4043619856442
• Colour: Black, Grey
• Package quantity: 1 piece
• Type: Ribbon cable with slot bracket to Sub-D connectors

How to use

Install the bracket into a vacant standard PC expansion slot. Connect the ribbon cable to the corresponding internal serial or parallel pin header on the motherboard or controller, then secure the bracket in place so the Sub-D connectors are accessible from the rear of the PC. Ensure connectors are firmly seated before attaching external devices.

Usage recommendations

Use the bracket in powered-off systems to avoid short circuits. Verify pinout compatibility between the motherboard header and the external device and avoid excessive cable stress or sharp bends to maintain signal integrity.
