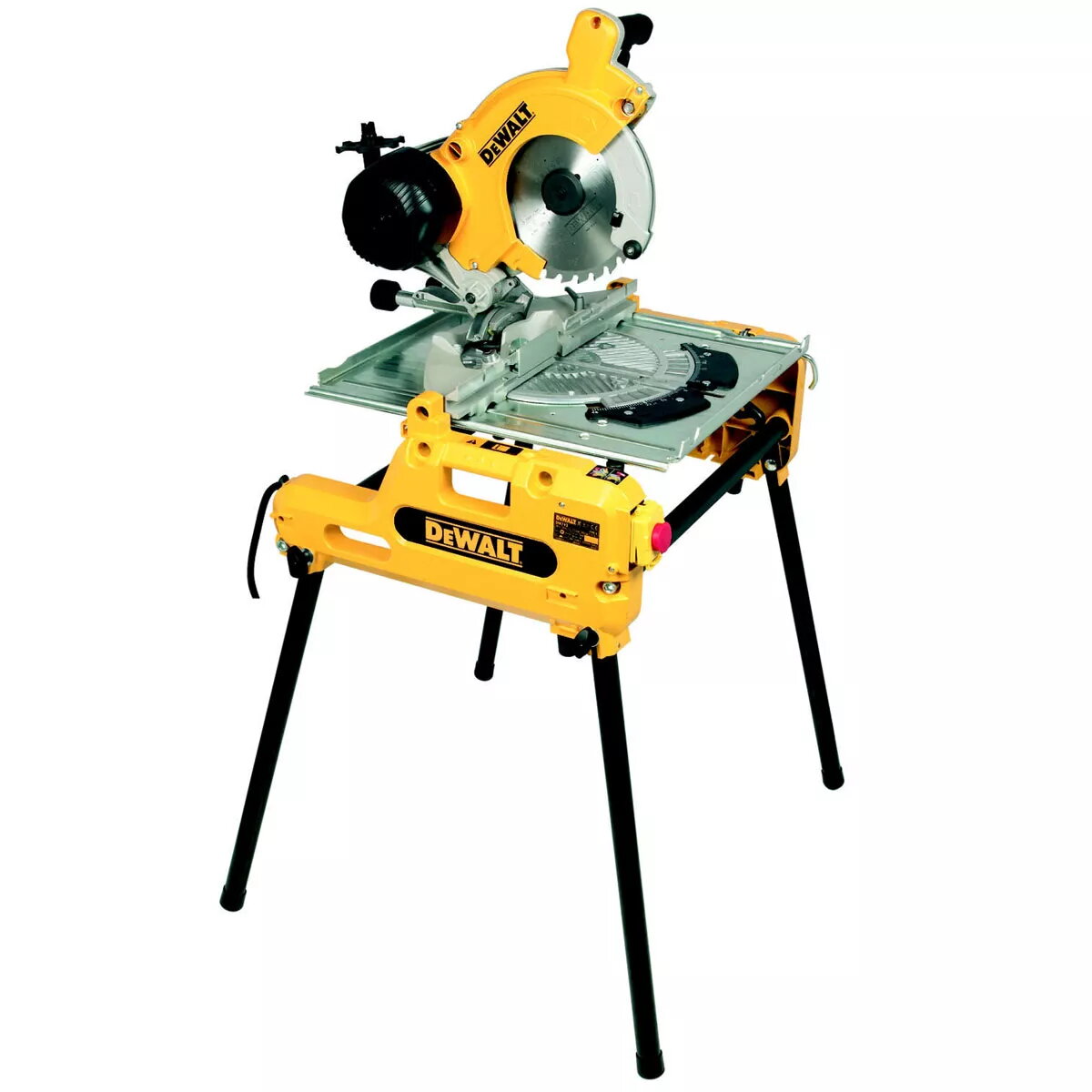

Saw DeWALT DW743N

The DeWALT DW743N is a classic flip-over bevelling saw designed for workshop and site use. It combines a bench saw and a mitre saw in one tool with a rapid, tool-free transformation between modes. The machine is fitted with a heavy-duty high-torque induction motor rated at 2000 W and an idle speed up to 2850 RPM, a 250 mm blade diameter, and a three-way extractor connection for effective dust removal. Integrated carry handles and a compact footprint (670 mm width × 700 mm depth × 750 mm height) support portability and installation in various working environments.

Advantages

The flip-over design provides flexibility to switch quickly from saw bench to mitre saw without tools, while the handle mechanism allows the guard to retract automatically in mitre mode for safe, convenient cutting. The high-output induction motor delivers long-term, maintenance-free operation with relatively low noise levels suitable for workshop environments. Three-way dust extraction improves site cleanliness, and the updated design maximises cutting capacity across mitre and bevel angles.

Suitable for

• General woodworking and carpentry tasks
• Workshop and on-site cutting where a combination bench/mitre saw is needed
• Bevel and mitre cuts in trim, moulding and framing work

Key specifications

• Model: DeWALT DW743N (MPN: DW743N-QS, EAN: 5035048161951)
• Input power: 2000 W
• Maximum idle speed: 2850 RPM
• Blade diameter: 250 mm
• Dimensions (W×D×H): 670 × 700 × 750 mm
• Three-way extractor connection

How to use

Set the saw on a stable surface and secure any workpieces. Use the flip-over mechanism to select bench or mitre mode as required; the transformation is tool-free. When in mitre mode the handle mechanism allows the guard to retract automatically—ensure the guard returns before adjusting or clearing the blade. Connect an appropriate dust extractor to one of the three-way ports for efficient dust collection. Choose the correct blade for your material, set the required mitre and bevel angles, and operate the saw at the recommended speed for the blade type.

Usage recommendations

Always use appropriate personal protective equipment (eye, hearing and dust protection). Disconnect power before changing blades or performing maintenance. Match blade type and tooth configuration to the material for best results, and use dust extraction during prolonged cutting to maintain visibility and reduce airborne dust.
