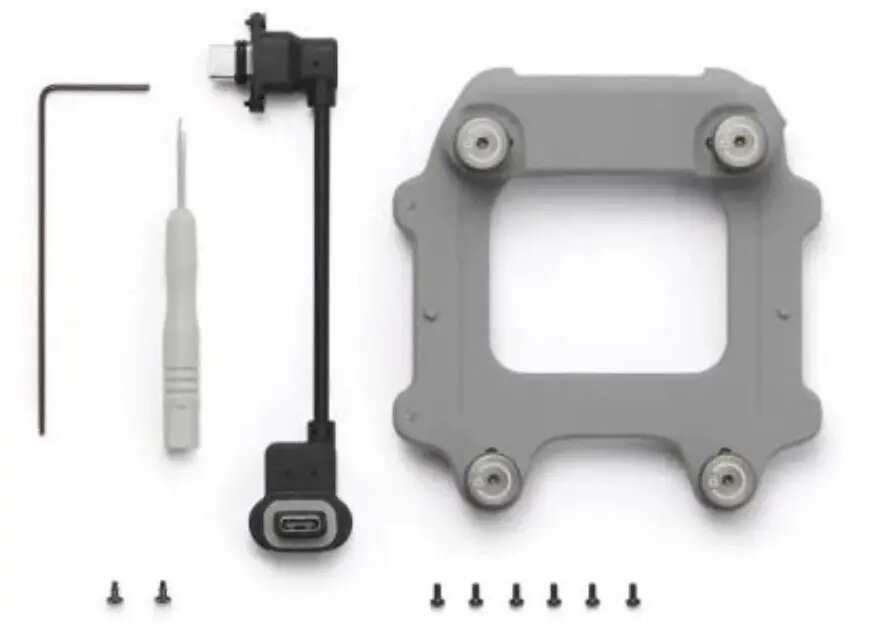

Mounting Kit DJI Manifold 3 for Matrice 4D Series — Flight Computer Integration Kit

The Mounting Kit DJI Manifold 3 for Matrice 4D Series is a purpose-built assembly kit that enables mechanical mounting and connectivity alignment of the DJI Manifold 3 flight computer on Matrice 4D airframes. Designed for professional drone assembly and system integration, the kit provides the interfaces and fixtures needed to securely attach the Manifold 3 module to Matrice 4D series platforms while maintaining proper access to required connectors and cable routing.

Advantages

This mounting kit offers a precise mechanical fit tailored to Matrice 4D airframes, helping to reduce vibration transfer and ensure stable operation of the onboard Manifold 3 computer. It simplifies installation by providing pre-defined mounting points and alignment features, and it preserves accessibility for power, data and sensor cables. The design supports reliable physical fixation under operational conditions typical for professional aerial platforms.

Suitable for

• Professional assembly of Matrice 4D drones requiring Manifold 3 integration
• Retrofit projects upgrading Matrice 4D platforms with an onboard flight computer
• System integrators preparing Matrice 4D airframes for mission-specific payloads and computing
• Maintenance and replacement of existing Manifold 3 mounts on Matrice 4D aircraft

Key specifications

• Compatibility: mechanical and connector alignment for Manifold 3 on Matrice 4D series airframes
• Function: provides mounting fixtures and routing support for power and data cabling
• Construction: machined and/or molded parts designed for secure fixation and reduced vibration transfer
• Access: preserves access to essential Manifold 3 interfaces for installation and maintenance
• Installation orientation: designed to match Matrice 4D airframe mounting points and clearances

How to use

Prepare the Matrice 4D airframe by removing any covers or panels that restrict access to the designated mounting area. Position the mounting kit components against the airframe so that the alignment features match the Matrice 4D mounting points. Secure the fixture using the appropriate fasteners and torque values recommended by the Matrice 4D platform documentation. Install the Manifold 3 module into the mounting kit, confirm connector alignment, and route power and data cables through the provided guides. After installation, verify mechanical security and confirm electrical connectivity before powering the system.

Usage recommendations

Follow manufacturer assembly and safety guidelines for Matrice 4D and Manifold 3 hardware. Use appropriate threadlocker, torque settings and cable strain relief where required. Verify compatibility of firmware and connectors after mechanical integration and perform a ground test of the flight computer and payload systems prior to operational flights.
