Corner mounting plate DMX Angle KM5 60×60×80×2 mm for structural connections

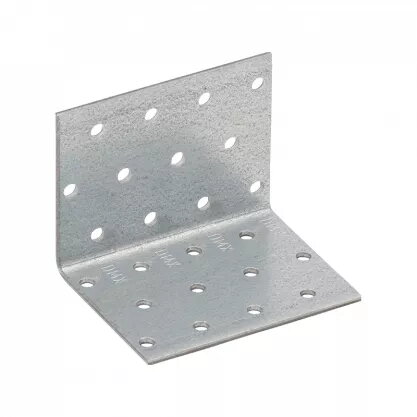

DMX Angle KM5 corner mounting plate, dimensions 60×60×80×2 mm, is a galvanized steel plate designed for secure right-angle structural connections in metal and wooden constructions. The plate features multiple perforations to accommodate various connection patterns and is manufactured from DX51D + Z275 zinc-coated steel with a 2 mm thickness. Compatible fixings are carpenter's anchor nails ø 4 mm, and the plate has a load-bearing capacity and durability rating of 6.86 kN.

Advantages

The KM5 corner plate offers versatile perforation that enables both simple and complex joints, ensuring accurate alignment at right angles. Its galvanized DX51D + Z275 steel construction provides corrosion resistance and reliable mechanical strength while the compact 60×60×80×2 mm size simplifies installation in tight spaces. The pre-punched holes reduce on-site work and speed up assembly with standard ø 4 mm anchor nails.

Suitable for

• Right-angle joints in wooden frames and carpentry
• Metal bracket and enclosure assembly
• Reinforcement of corners in furniture and structures
• Small structural repairs and DIY projects requiring rigid corner support

Key specifications

• Model: DMX Angle KM5, MPN 8141057
• Dimensions: 60 × 60 × 80 × 2 mm
• Material: galvanized steel DX51D + Z275
• Thickness: 2 mm
• Compatible fasteners: carpenter's anchor nails ø 4 mm
• Load capacity: 6.86 kN
• EAN: 5907708141057

How to use

Position the DMX Angle KM5 plate at the intended corner so the two flanges form a right angle against the joining members. Mark hole positions through the pre-punched perforations, then fix the plate using the recommended ø 4 mm carpenter's anchor nails or other appropriate fasteners for the base material. Ensure nails or fasteners are driven fully and that mating surfaces are flush to achieve the specified load-bearing performance. For metal-to-metal connections, use suitable bolts or rivets that match the hole pattern and material thickness.

Usage recommendations

Use the plate in accordance with applicable structural and building standards. Select anchor nails or fasteners appropriate for the substrate and expected loads, and verify that the 6.86 kN rating meets your project requirements before relying on the plate for critical structural support.
