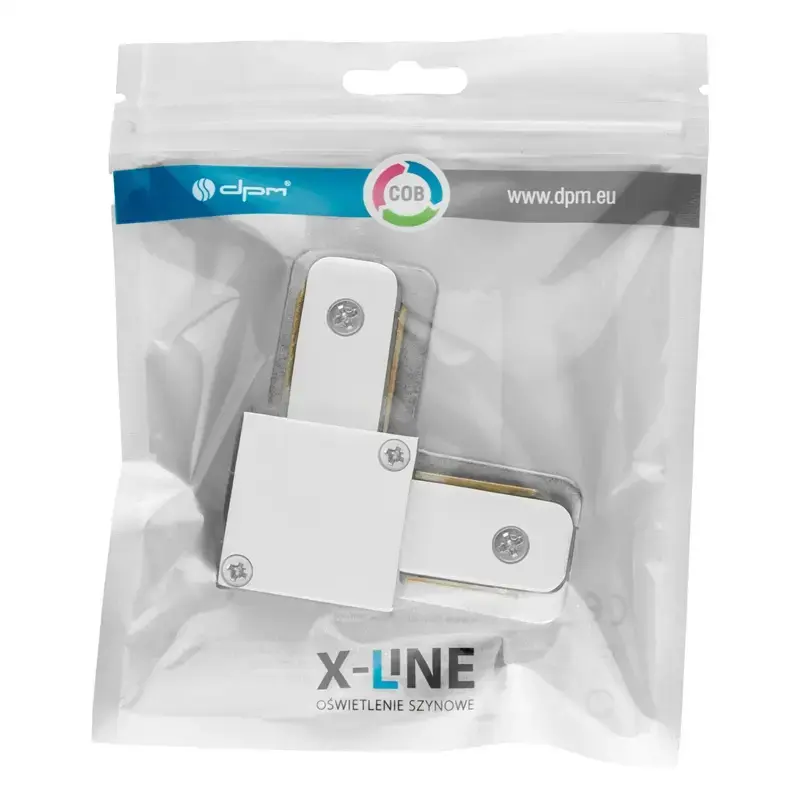

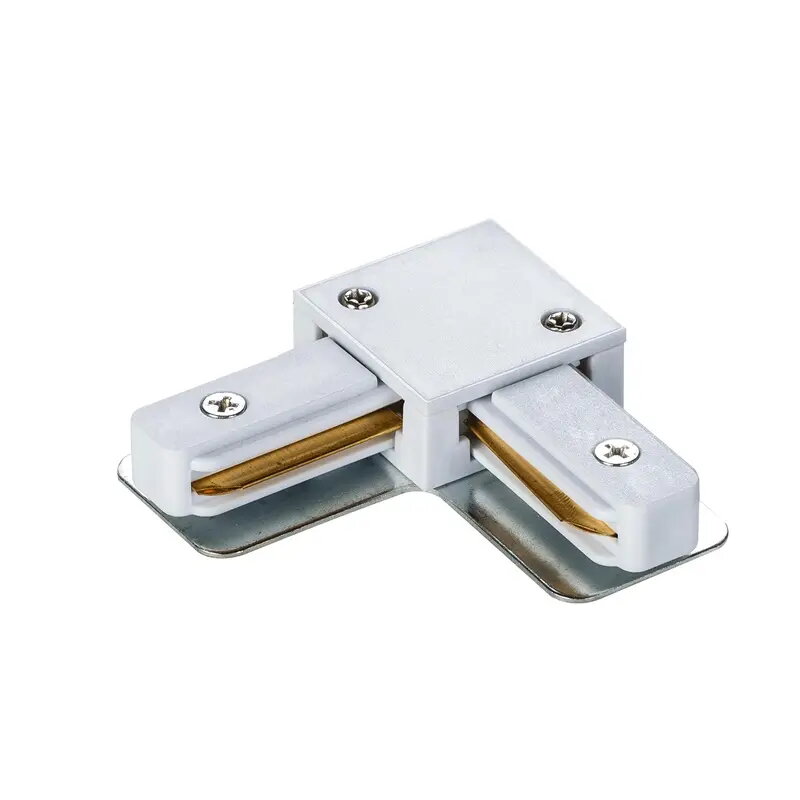

DPM X-Line L Electrical Connection for Rail System

The DPM X-Line L electrical connection is a specialized component engineered for the DPM X-Line rail lighting system. This recessed L-connector serves as a vital link in your track lighting configuration, ensuring a secure and reliable power supply between rail segments. Designed with a clean, modern aesthetic, it integrates seamlessly into ceiling installations, allowing for the creation of customized, modular lighting layouts that adapt to the specific geometry of your interior space.

Advantages

This electrical connector offers a robust and stable connection for rail systems, ensuring consistent power distribution across your lighting setup. Its recessed mounting design provides a minimalist and professional appearance, keeping the focus on the lighting fixtures rather than the hardware. Constructed from durable plastic, the component is built for longevity and reliable performance in various indoor environments, maintaining a clean white finish that blends effortlessly with modern ceiling designs.

Suitable for

• Living rooms and dining areas
• Kitchen lighting configurations
• Hallway and corridor illumination
• Home office or workroom setups
• Bedroom accent lighting

When it may not be suitable

This connector is specifically designed for the DPM X-Line rail system and is not compatible with other track lighting brands or different rail series. It is intended for indoor use only and should not be installed in areas with high humidity or direct water exposure, as it features an IP20 protection rating.

Key specifications

• Type: Recessed L-connector for rail systems
• Material: Durable plastic
• Color: White
• Dimensions: 6.9 cm x 6.9 cm x 1.8 cm
• Protection rating: IP20
• Mounting: Recessed ceiling installation

How to use

To install the DPM X-Line L electrical connection, ensure the power supply to the rail system is completely disconnected. Insert the connector into the ends of the rail segments to form an L-shaped junction. Secure the unit into the recessed ceiling opening according to the rail system's mounting guidelines, ensuring all electrical contacts are properly aligned and firmly seated. Once installed, verify the connection stability before restoring power to the lighting circuit.

What to consider before purchase

• Verify compatibility with your existing DPM X-Line rail system components.
• Ensure the ceiling structure supports recessed mounting.
• Confirm that the L-shape configuration fits your intended lighting layout.
• Check that the installation environment meets the IP20 requirements.

Usage recommendations

For optimal safety and performance, always consult a qualified electrician for the installation of rail lighting systems. Ensure that the total load of the connected luminaires does not exceed the capacity of the rail system.
