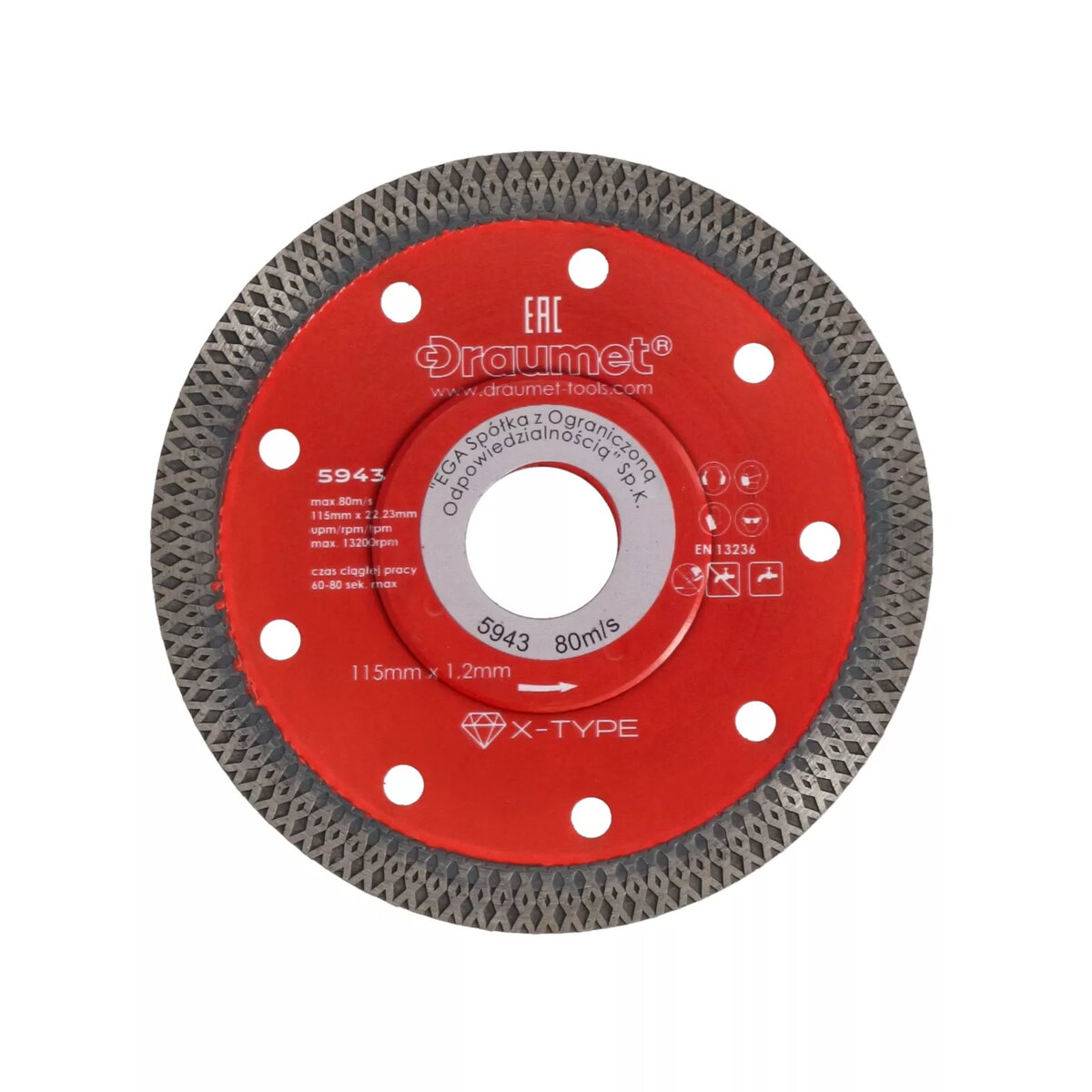

Diamond Cutting Disc DRAUMET PCN 115 x 1.2 x 22 mm for Tiles X-Type

Diamond cutting disc DRAUMET PCN 115 x 1.2 x 22 mm X-Type is designed for wet and dry cutting of very hard ceramics, glazed ceramic tiles and strongly adhered tiles. The 115 mm diameter and 1.2 mm blade thickness provide fast, smooth and clean cuts with minimal chipping; the 22.2 mm bore fits angle grinders with the corresponding mount for precise tile work.

Advantages

The X-type diamond rim ensures efficient cutting performance on hard and glazed ceramic materials while maintaining ease of control. The thin 1.2 mm blade delivers accurate, narrow cuts and reduced material waste. Suitable for both wet and dry operation, the disc offers quick, smooth results and a clean finish on ceramic and porcelain tiles.

Suitable for

• Tiling and ceramic installation
• Renovation and repair work with ceramic or porcelain tiles
• Professional tile fitting requiring precise, low-chipping cuts
• Cutting glazed ceramic products and strongly adhered tiles

Key specifications

• Brand: DRAUMET
• Model / MPN: 8959436
• EAN: 5907078959436
• Type: X-Type diamond cutting disc
• Diameter: 115 mm
• Blade thickness: 1.2 mm
• Bore (center hole) diameter: 22.2 mm
• Suitable for: wet and dry cutting of ceramic and porcelain tiles

How to use

Mount the disc on an angle grinder with a compatible 22.2 mm arbor and secure according to the tool manufacturer’s instructions. For dry cutting, ensure proper dust control and follow safety precautions including eye, hearing and respiratory protection. For wet cutting, supply consistent coolant/water to reduce dust and extend diamond life. Use steady, controlled feed and avoid excessive pressure to achieve smooth, low-chipping cuts.

Usage recommendations

Use appropriate personal protective equipment and select wet or dry cutting mode according to tile type and jobsite conditions. Match cutting speed and feed rate to the material hardness to maximize blade life and achieve the cleanest cuts.
