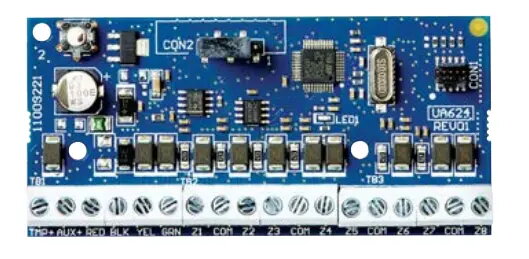

Expansion module DSC NEO HSM2108 — 8-zone wired/wireless line extender

The DSC NEO HSM2108 expansion module adds eight additional zones to compatible DSC NEO alarm control panels, enabling connection of wired sensors or compatible wireless NEO devices. Designed as a line/zone extender, the module extends the panel's input capacity and simplifies integration of additional motion detectors, door/window contacts, glass-break sensors and other intrusion devices. The compact module supports both residential and light commercial systems where increased sensor coverage and flexible wiring topology are required.

Advantages

The module offers eight extra supervised inputs that can be configured for different zone types and wiring schemes, enabling balanced expansion without replacing the main control panel. Its compatibility with DSC NEO architecture ensures seamless communication and zone reporting to the panel. The device is engineered for straightforward installation and reliable operation, supporting tamper supervision and standard alarm signaling to maintain system integrity.

Suitable for

• Expanding wired zone capacity in homes, apartments and small businesses
• Adding additional sensor coverage for garages, outbuildings or extensions
• Integrating mixed wired and compatible wireless NEO sensors into a single system
• Retrofit installations where running new cabling to the main panel is impractical

Key specifications

• Number of additional zones: 8 supervised inputs
• Supported device types: wired sensors and compatible system wireless devices
• Zone supervision: tamper and line supervision supported
• Installation: surface- or enclosure-mountable expansion module
• Interface: integrates with DSC NEO control panels using system-specific communication link

How to use

Install the HSM2108 module in a suitable location near the control panel or at a remote consolidation point and connect it to the DSC NEO panel using the system communication wiring. Mount sensors to the zone inputs following standard wiring practices and configure each zone type and supervision options within the panel programming menu. Verify zone reporting and alarm response through the panel user interface and perform functional tests for each connected sensor to confirm correct operation.

Usage recommendations

Use the module to centralize sensor connections in areas distant from the main panel to reduce cable runs. Follow DSC installation guidelines for wiring gauge, termination, and environment to ensure reliable supervision and minimize false alarms. After installation, perform regular maintenance and testing as part of the overall alarm system service schedule.
