LED street light E-LIGHT LU17 120 COB with PIR sensor, waterproof design

Elight LU17 Solar LED Street Light is a solar-powered outdoor luminaire designed to provide efficient, maintenance-light illumination for driveways, gardens, garages and building façades. The unit integrates a 120 COB LED array, a 3000 mAh rechargeable battery and built-in sensors to deliver adaptive lighting without wiring, while an IP65-rated ABS housing protects components from weather and dust.

Advantages

The lamp combines high-density COB LEDs for uniform, focused brightness with low energy consumption, a polysilicon solar panel for daytime charging and smart PIR and dusk sensors to activate light only when required. Remote control operation and three selectable modes offer flexible control without physical adjustment. Robust ABS construction and an IP65 rating ensure reliable performance in rain, snow and temperatures from –40°C to +50°C.

Suitable for

• Illuminating residential driveways and private roads
• Lighting garden paths, yards and outdoor seating areas
• Accent and security lighting for garage doors and building façades
• Areas without access to mains power or where cable installation is impractical

Key specifications

• LED type: COB (Chip-on-Board), 120 LEDs
• Beam angle: 120°; light distribution: diffused; light color: cool white
• Motion detection: PIR, 120° angle, up to 5 m range

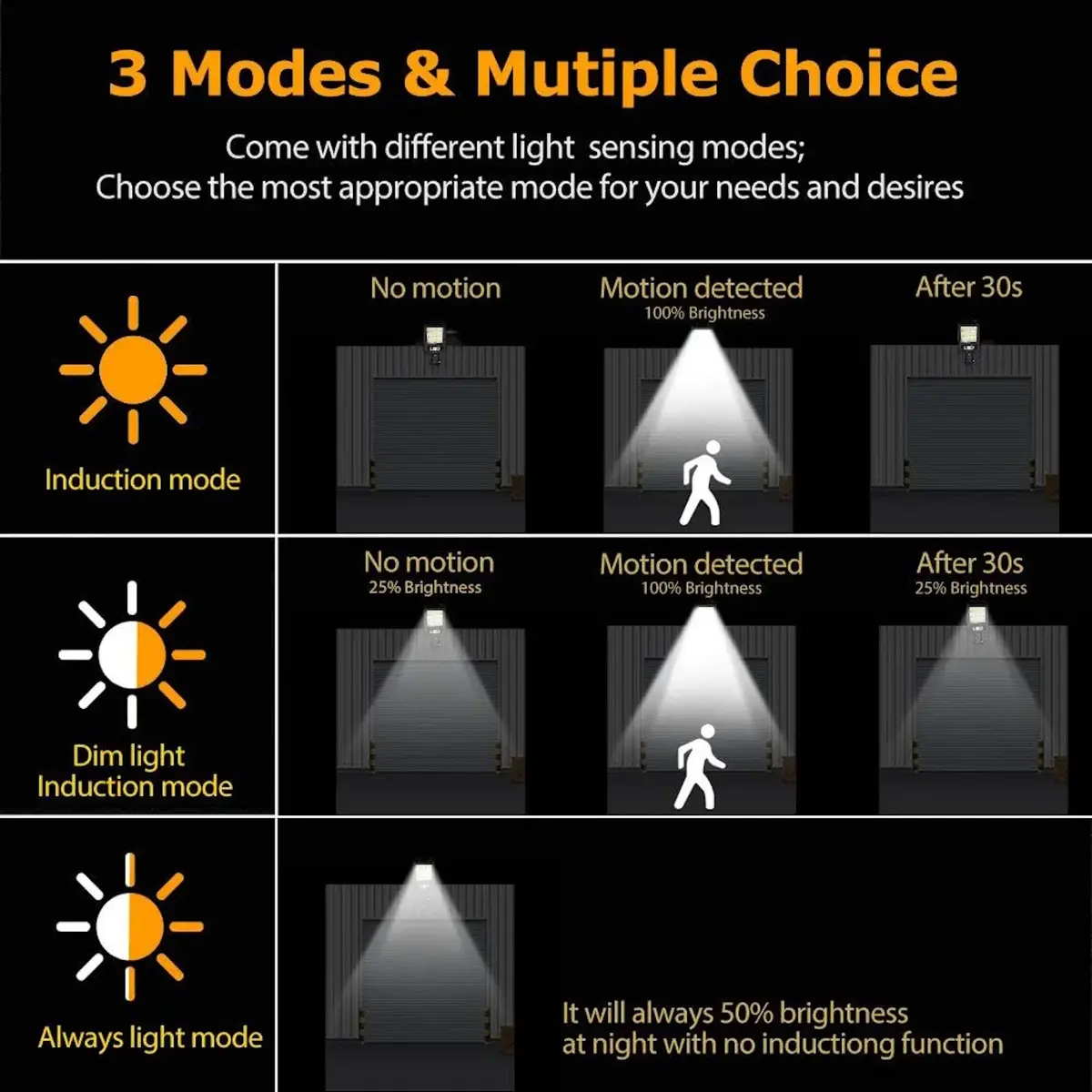

• Lighting modes: 3 (full on with motion; dim + full on with motion; constant dim ~50% after sunset), selectable by IR remote or manual
• Battery: 3000 mAh Li‑ion; solar panel: 5.5 V / 2.5 W polycrystalline
• Charging time: ~6 hours (summer) / up to 24 hours (winter); working time: up to 8 hours on full charge
• Protection: IP65 waterproof and dustproof; housing material: ABS; operating temperature: –40°C to +50°C
• Dimensions: width 127 mm; height 250 mm (390 mm with bracket); depth 35 mm

How to use

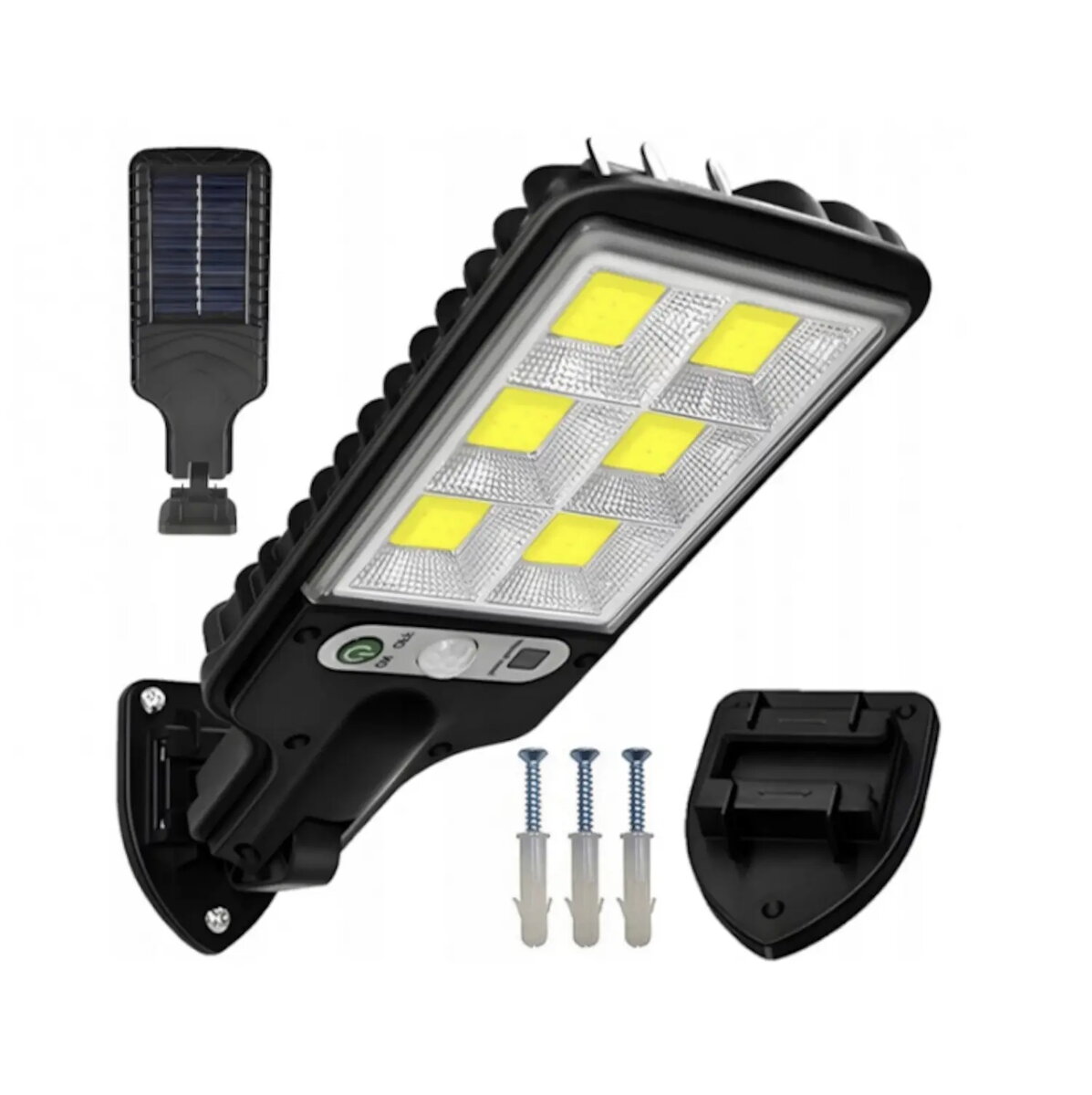

Mount the Elight LU17 on a wall or post using the included bracket, screws and plugs. Adjust the bracket angle to position the solar panel for maximum sun exposure during the day. Use the IR remote to select one of the three lighting modes or switch the unit on and off. The PIR sensor and dusk sensor operate automatically to conserve battery: the panel charges by day and the light activates at night according to the selected mode.

Usage recommendations

For optimal charging and runtime, install the lamp where the solar panel receives unobstructed sunlight for most of the day and avoid shading from trees or structures. Clean the solar panel periodically and ensure the mounting angle faces the sun in your location. In winter or low-sun conditions, expect longer charging times and shorter continuous operation.
