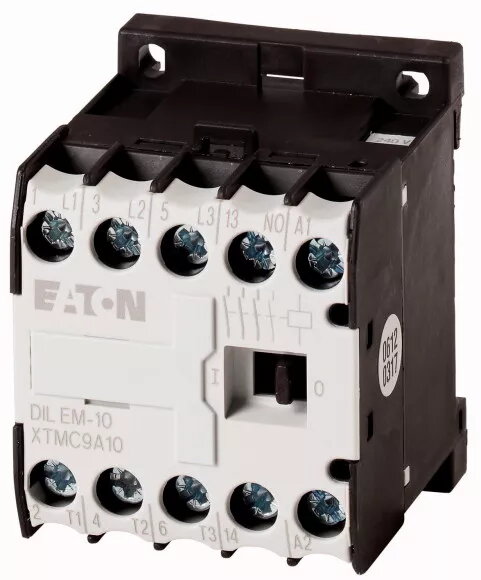

Eaton DILEM-10-G Contactor, 220V DC

The Eaton DILEM-10-G is a high-performance industrial contactor engineered for precise electrical circuit control in demanding environments. Operating with a 220V DC coil voltage, this compact device is designed to handle switching tasks for motors and various electrical loads with consistent reliability. Its robust construction ensures long-term durability, making it a dependable component for automation systems and industrial control panels.

Advantages

This contactor offers exceptional operational efficiency due to its compact design, which saves valuable space in control cabinets without compromising on power capacity. The device is built to withstand rigorous industrial conditions, providing stable performance over extended periods. Its IP20 rating ensures protection against solid objects, contributing to safer installation and maintenance practices in professional settings.

Suitable for

• Switching electric motors
• Industrial automation systems
• Control circuit management
• Electrical load distribution

When it may not be suitable

This contactor is specifically designed for 220V DC control voltage applications and will not function correctly if connected to AC power sources or different DC voltage levels. It is not intended for outdoor use without an additional protective enclosure, as the IP20 rating does not provide protection against moisture or water ingress.

Key specifications

• Coil voltage: 220V DC
• Protection rating: IP20
• Application: Industrial motor switching
• Design: Compact modular construction

How to use

Installation should be performed by qualified personnel in accordance with local electrical regulations. The contactor is designed for mounting onto standard DIN rails or direct panel mounting. Ensure that the control circuit is de-energized before connecting the 220V DC supply to the coil terminals. Securely fasten all power cables to the main terminals, ensuring proper torque settings to prevent overheating or loose connections during operation.

What to consider before purchase

• Verify that your control system provides a 220V DC signal.
• Ensure the installation environment is dry and free from excessive dust.
• Check the current rating requirements of your specific motor or load.

Usage recommendations

Regularly inspect the terminal connections for tightness and ensure the contactor remains free from debris to maintain optimal electrical conductivity and prevent premature wear.
