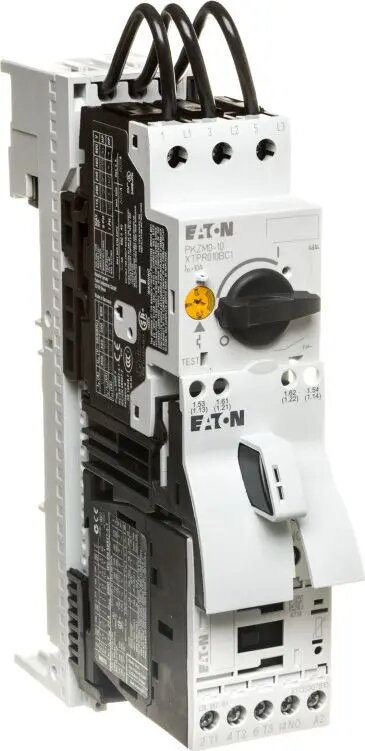

Eaton 102972 Motor Starter 3/4kW 6.6/8.5A 24V DC for Busbar Mounting

The Eaton 102972 motor starter is a professional-grade component engineered for the precise control and protection of electric motors in demanding industrial environments. This device is specifically designed to manage motors within a power range of 3 to 4 kW, operating with a current range of 6.6 to 8.5 A and a 24V DC control voltage. Its compact design is optimized for direct busbar mounting, facilitating efficient space utilization and streamlined installation within electrical cabinets and distribution systems.

Advantages

This motor starter offers exceptional reliability and durability, ensuring consistent performance even under continuous operational loads. By integrating motor control and protection into a single, robust unit, it simplifies system architecture and reduces the complexity of wiring. The busbar mounting capability allows for rapid assembly and maintenance, significantly decreasing downtime during system upgrades or repairs. Its high-quality construction ensures long-term operational stability, making it a dependable choice for critical industrial automation tasks.

Suitable for

• Industrial automation systems
• Electric motor control and protection
• Electrical distribution panels
• Manufacturing machinery
• Conveyor belt systems

When it may not be suitable

This device is not intended for applications requiring AC control voltages, as it is strictly designed for 24V DC operation. Furthermore, it is not suitable for motors exceeding the specified power range of 3 to 4 kW or current requirements outside the 6.6 to 8.5 A threshold.

Key specifications

• Power range: 3 to 4 kW
• Operating current: 6.6 to 8.5 A
• Control voltage: 24V DC
• Mounting type: Busbar mounting

How to use

Installation should be performed by qualified electrical personnel in accordance with local safety regulations. The unit is designed to be mounted directly onto a compatible busbar system. Ensure that the power supply is disconnected before beginning the installation. Connect the motor leads and the 24V DC control signal wires to the designated terminals, verifying that all connections are secure and properly tightened to prevent overheating. Once installed, perform a functional test to ensure the motor starts and stops according to the control signal.

What to consider before purchase

• Verify that your motor power and current ratings fall within the specified ranges.
• Ensure your control system provides a stable 24V DC supply.
• Confirm compatibility with your existing busbar system dimensions.
• Check that the installation environment meets the required temperature and humidity standards for industrial electrical equipment.

Usage recommendations: Regularly inspect the terminal connections for tightness and check for any signs of thermal stress or debris accumulation to maintain optimal performance and safety.
