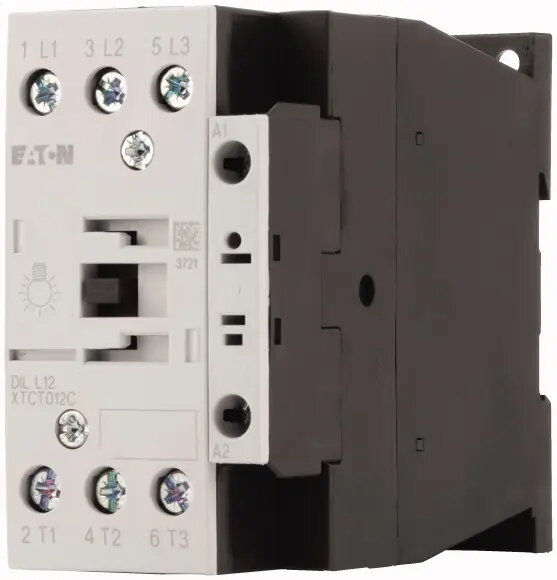

Eaton DILL12 Contactor for Lighting Systems 12A AC-5a

The Eaton DILL12 is a specialized contactor engineered specifically for the reliable switching of lighting circuits. Designed to handle the unique electrical demands of lighting systems, this device manages high-inrush current loads effectively, ensuring stable operation in both industrial and commercial environments. Its robust construction and technical precision make it a dependable component for modern electrical distribution boards.

Advantages

This contactor offers exceptional durability when dealing with the frequent switching cycles required by lighting installations. By utilizing a design optimized for AC-5a utilization categories, it minimizes the risk of contact welding caused by the high current spikes typical of discharge lamps and other lighting technologies. The compact form factor allows for efficient space utilization within control cabinets, while the high-quality materials ensure long-term operational stability under standard load conditions.

Suitable for

• Commercial lighting control systems
• Industrial facility illumination management
• Public building lighting circuits
• High-inrush current lighting applications

When it may not be suitable

The Eaton DILL12 is not intended for use in environments where it would be exposed to moisture, dust, or debris, as it features an IP00 protection rating. It is also not suitable for applications requiring high-frequency switching beyond its rated capacity or for use in hazardous areas without additional protective enclosures.

Key specifications

• Rated operational current (AC-5a): 12 A
• Rated operational current (AC-1): 14 A
• Conventional free air thermal current (Ith): 27 A
• Actuating voltage: 230 V 50 Hz, 240 V 60 Hz
• Protection rating: IP00
• Dimensions: 45 mm (width) x 138 mm (depth) x 85 mm (height)
• Standards compliance: IEC/EN 60947, VDE 0660, UL, CSA

How to use

The device should be installed by a qualified electrician within a suitable protective enclosure to compensate for its IP00 rating. Ensure that the control voltage matches the specified 230V 50Hz or 240V 60Hz requirements. Connect the power supply and load cables according to the wiring diagram provided in the technical documentation, ensuring all terminals are tightened to the manufacturer's torque specifications to prevent overheating.

What to consider before purchase

• Verify that the control voltage of your system matches the contactor specifications.
• Ensure the installation environment is dry and protected from external elements.
• Check that the total load of the lighting circuit does not exceed the 12A AC-5a rating.
• Confirm that the mounting space is sufficient for the device dimensions.

Usage recommendations

Regularly inspect the terminal connections for tightness and ensure the contactor remains free from dust accumulation to maintain optimal performance and safety standards.
