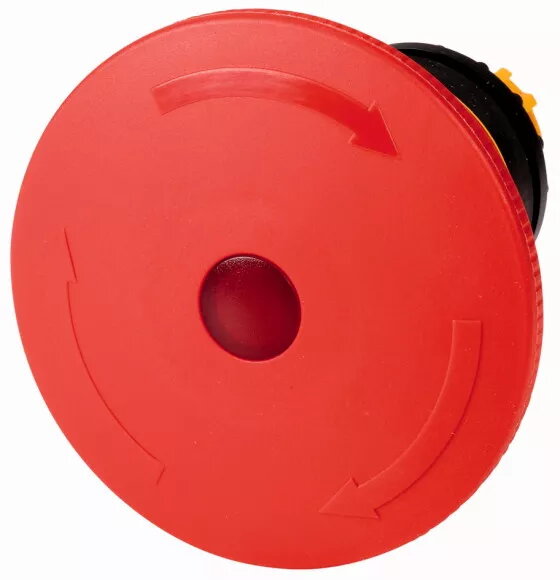

Eaton M22-PVLT45P Illuminated Emergency Stop Rotary Switch

The Eaton M22-PVLT45P is a professional-grade illuminated emergency stop rotary switch designed for industrial control panels. This device is part of the RMQ-Titan range and features a robust, tamper-proof design that meets international safety standards. With its distinctive palm-tree shape and high-visibility red mushroom head on a yellow base, it ensures immediate identification and reliable operation in critical safety applications.

Advantages

This emergency stop switch offers exceptional durability and reliability in demanding industrial environments. Its high degree of protection against dust and water ingress ensures consistent performance even in harsh conditions. The integrated LED illumination provides clear visual status indication, while the turn-to-release mechanism allows for intuitive and safe operation. The design is fully compliant with ISO 13850 and EN 418 standards, ensuring that it effectively prevents tampering and accidental activation.

Suitable for

• Industrial machinery and automation systems
• Emergency shutdown control panels
• Manufacturing equipment safety circuits
• Critical infrastructure monitoring stations

This switch may not be suitable for applications requiring non-standard mounting dimensions or environments where the specific 45 mm diameter mushroom head is too large for the available panel space. It is also not intended for use in systems requiring direct SmartWire-DT connectivity, as this specific model does not support that interface.

Key specifications

• Diameter: 45 mm
• Design: Palm-tree shape
• Illumination: LED element
• Release function: Turn-to-release
• Protection rating: IP66, IP67, IP69K
• Standards: IEC/EN 60947, VDE 0660
• Color: Red mushroom head, yellow base

The switch is designed for straightforward installation into standard control panels. It supports a specific configuration of contact blocks, allowing for up to four M22-(C)K01, M22-(C)K10 contacts or two M22-(C)K02, M22-(C)K20, or M22-(C)K11 contacts. Once mounted, the device is operated by pressing the mushroom head to trigger the emergency stop and rotating it to release the mechanism.

What to consider before purchase

• Verify that the 45 mm diameter fits your control panel layout
• Ensure your contact block configuration does not exceed the specified limits
• Confirm that the environment does not require SmartWire-DT integration
• Check that the mounting depth is compatible with your enclosure

Ensure that the installation is performed by qualified personnel in accordance with local safety regulations and the provided technical documentation to maintain the integrity of the safety circuit.
