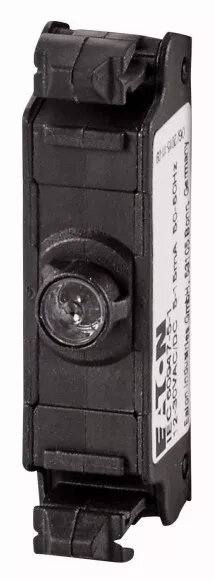

Eaton M22-FLED-RGB LED Indicator Light, 24V DC

The Eaton M22-FLED-RGB is a professional-grade LED indicator light engineered for integration into industrial control panels and automation systems. This flat-design component provides versatile RGB color output, allowing for clear and distinct status signaling across a wide range of electrical applications. Built to meet rigorous industrial standards, it ensures consistent performance and high visibility even in demanding operational environments.

Advantages

This LED indicator light stands out due to its compact and flat design, which saves valuable space within control enclosures. The RGB functionality offers significant flexibility, enabling the display of red, green, or blue light from a single unit to represent different system states. With a low power consumption of only 0.36W, it is an energy-efficient solution for continuous monitoring. The use of Cage Clamp connection technology ensures a secure, vibration-resistant electrical contact, facilitating quick and reliable installation.

Suitable for

• Industrial control panels and automation cabinets
• Status monitoring in electrical machinery
• Human-machine interface (HMI) signaling
• Visual feedback systems for process control

When it may not be suitable

This device is not intended for outdoor use or environments where it may be exposed to direct moisture or dust, as it carries an IP20 protection rating. It is also not compatible with SmartWire-DT systems and should not be used in applications requiring higher ingress protection levels without additional housing.

Key specifications

• Rated operational voltage: 24V DC
• Rated operational current: 8 - 15 mA
• Power consumption: 0.36W at 24V
• Color output: Red, Green, Blue
• Connection type: Cage Clamp
• Mounting: Front fixing
• Protection degree: IP20
• Standards: IEC 60947-5-1

How to use

The Eaton M22-FLED-RGB is designed for front-fixing installation within standard control panel cutouts. Ensure the power supply is disconnected before beginning the installation. Insert the LED element into the designated mounting position and secure it firmly. Connect the wiring using the Cage Clamp terminals, ensuring that the conductors are stripped to the appropriate length to guarantee a solid connection. Once installed, verify that the voltage supply matches the 24V DC requirement before energizing the circuit.

What to consider before purchase

• Verify that your control system provides a stable 24V DC power supply.
• Ensure the installation environment meets the IP20 protection requirements.
• Confirm that the mounting cutout dimensions are compatible with the M22 series.
• Check if the RGB color output meets your specific signaling requirements.

Usage recommendations

For optimal longevity and performance, ensure that the operating temperature remains within the limits specified by the IEC 60947-5-1 standard. Regularly inspect the Cage Clamp connections during routine maintenance to ensure they remain secure and free from oxidation.
