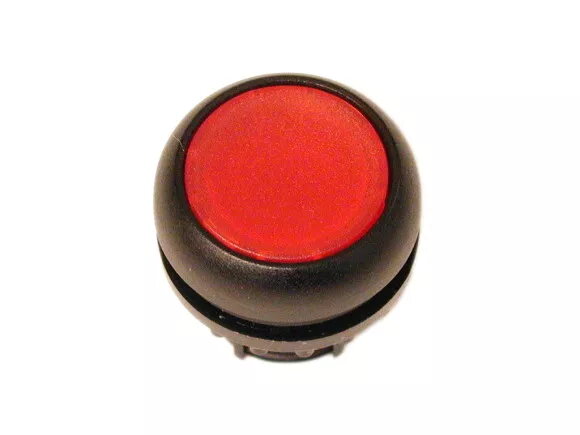

Eaton M22S-DL-R Illuminated Pushbutton Switch, Black and Red

The Eaton M22S-DL-R is a professional-grade illuminated pushbutton switch engineered for industrial control panels, automation systems, and machinery interfaces. This component features a sleek black bezel with a red actuator, providing a clear visual signal for operators. Built to withstand harsh industrial conditions, the switch offers high ingress protection ratings, ensuring reliable performance even when exposed to dust, moisture, and high-pressure washdown procedures.

Advantages

This pushbutton switch stands out due to its exceptional durability and versatile design. The integrated illumination allows for immediate status recognition in low-light environments or complex control panels. Its robust construction ensures a long mechanical lifespan, reducing the need for frequent maintenance. Furthermore, the high IP rating makes it an ideal choice for facilities that require rigorous cleaning protocols, as it effectively resists water ingress and chemical exposure.

Suitable for

• Industrial automation control panels
• Emergency stop or status signaling interfaces
• Machinery and equipment operation
• Outdoor or washdown-prone industrial environments

When it may not be suitable

This switch may not be suitable for applications requiring non-standard mounting diameters or specific electrical contact configurations not supported by the M22 series modular system. It is also not intended for use in explosive atmospheres unless housed within a certified explosion-proof enclosure.

Key specifications

• Bezel color: Black
• Actuator color: Red
• Illumination: Integrated
• Ingress protection: IP66, IP67, IP69
• Mounting diameter: 22.5 mm

How to use

The Eaton M22S-DL-R is designed for panel mounting through a standard 22.5 mm hole. Installation involves securing the actuator into the panel cutout using the provided locking nut. Once mounted, the appropriate contact blocks and LED elements from the Eaton RMQ-Titan series can be snapped onto the rear of the actuator to complete the electrical circuit. Ensure all connections are tightened according to the specified torque requirements to maintain the integrity of the seal.

What to consider before purchase

• Verify that the panel cutout size matches the 22.5 mm requirement.
• Ensure compatibility with your existing control voltage for the illumination element.
• Confirm that the required contact block configuration is available for your specific control logic.

Usage recommendations

To maintain the IP69 rating, ensure the front seal is free of debris and that the mounting nut is tightened securely against the panel surface. Regularly inspect the actuator for signs of mechanical wear in high-frequency operation environments.
