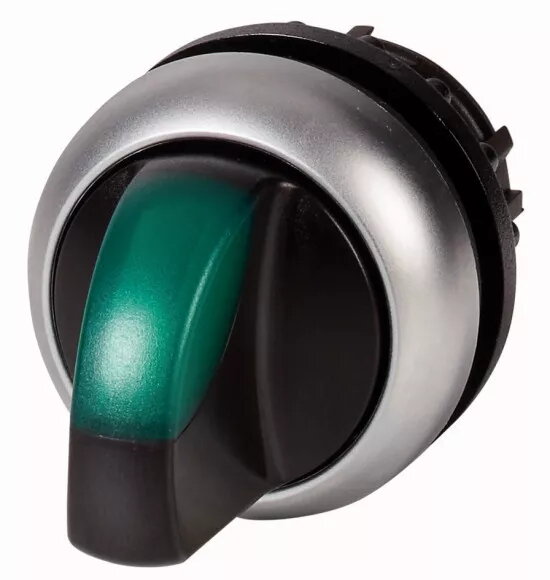

Eaton 284395 Rotary Switch, 2-Position Illuminated Green

The Eaton 284395 is a high-quality 2-position rotary switch from the RMQ-Titan series, designed for industrial control panels and automation systems. This illuminated selector switch features a green thumb-grip actuator that provides clear visual status indication in various electrical environments. Constructed with a durable titanium-colored bezel and robust housing, this single-unit switch is engineered to withstand demanding operational conditions while maintaining reliable performance.

Advantages

This rotary switch offers exceptional durability and versatility for professional electrical installations. Its IP66 degree of protection ensures high resistance against dust and water ingress, making it suitable for harsh industrial settings. The inclusion of SmartWire-DT connectivity allows for seamless integration into modern automated systems, simplifying wiring and reducing installation time. The design allows for flexible configuration, as the stay-put function can be modified to spring-return using optional coding parts, providing adaptability for specific control requirements.

Suitable for

• Industrial control panels
• Automation and process control systems
• Machine operation interfaces
• Electrical distribution equipment
• Status signaling in complex circuits

When it may not be suitable

This device is intended for professional industrial applications and may not be suitable for residential use or environments where standard light-duty switches are sufficient. It requires specific mounting dimensions and compatibility with the RMQ-Titan system, which may not align with generic or non-standard control panel cutouts.

Key specifications

• Positions: 2 positions (V position)
• Actuator type: Rotary switch with thumb-grip
• Illumination: Green
• Protection rating: IP66
• Bezel finish: Titanium
• Connectivity: SmartWire-DT compatible
• Front dimensions: 29.7 mm
• Standards: IEC/EN 60947, VDE 0660

How to use

The switch is designed for panel mounting. Ensure the mounting surface is clean and provides the necessary cutout dimensions. Secure the unit firmly into the panel using the provided mounting hardware. Connect the electrical wiring according to the system schematic, utilizing the SmartWire-DT connection if applicable. The rotary actuator can be turned between the two positions to control the connected circuit. If a spring-return function is required instead of the default maintained position, install the appropriate coding parts according to the manufacturer's technical documentation.

What to consider before purchase

• Verify that the 29.7 mm front dimension fits your existing control panel layout.
• Ensure compatibility with your current control system architecture, particularly if using SmartWire-DT.
• Confirm that the IP66 rating meets the environmental requirements of your installation site.
• Check if additional coding parts are needed if a spring-return operation is preferred over the standard maintained function.

Usage recommendations

Regularly inspect the switch for any signs of physical damage or debris accumulation around the actuator to ensure smooth operation. Ensure that all electrical connections remain tight and free from corrosion to maintain the integrity of the IP66 seal and overall system reliability.
